Voc Testing Equipment , Micro VOC Release Chamber Positive Pressure

Volume Of Climate Chamber:Φ64*H34mm=116ml,inner Arc Surface ChamberAdjustable Range Of Temperature:5%R.H(65℃)
Pressure:Positive PressureAir Exchange Rate:10~500/times±5%
Air Velocity:10~500mL/min(quality Flow Controller)
Highlight:ozone test chamber

climatic test chamber

  • Product Details
  • Inquiry

Product Description

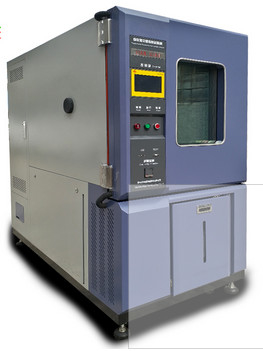

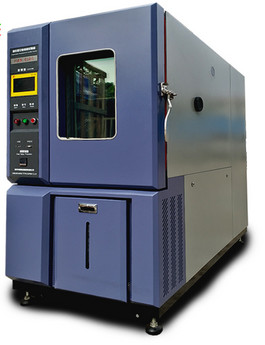

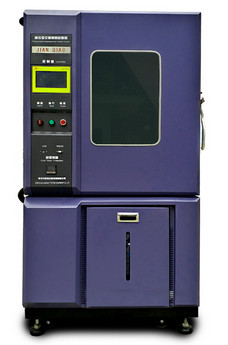

Micro VOC Release Chamber



Product purpose



• To detect substance released on the material surface in steady temperature.First,data of volatile substances and molecular materials before modification;Second,comparison of product properties(such as different colors or patterns)within the effective range;Third,detection of sample machine and low volatile materials;fourth,detection of the consensus of products during official authentication test.

• Measure volatile and semivolatile organic compounds in major materials,and implement regular quality control.

• Detect volume and radiations.

• When temperature changes,detect the steam permeated into materials

• Analysis of flavors and fragrances



Function



Micro sampling chamber can provide standard testing environment(temperature,cleanliness,relative humidity,air exchange rate,,etc) and detect VOC/SVOC and water content of various materials and products.It is very suitable for concrete analysis of heterogeneous prototype and detection of low trace elements.



Reference Standard



ISO 12219-3: 2012(E) air in road vehicles Section 3 Determination method for screening release emission of volatile organic components of materials of vehicle interiors with micro test chamber method.



Technical Parameters:



Product Model※1MV-4MV-6MV-8
Environmental temperature5~35℃
Environmental humidity≤90%R.H
Requirements for EnvironmentalCleanliness No pollutant source in the surrounding environment TVOC 500μg/m³
Volume of climate chamberΦ64*H34mm=116ml,inner arc surface chamber
Quantity of inner tanks※1Serveral,with aspiration at the bottom ring and outlet and sampling at the ceiling
Adjustable range of temperature60~200℃high temperature cleaning more than 260℃
Adjustable range of humidity(optional)5%R.H(65℃)
PressurePositive pressure
Temperature fluctuation±0.3℃(fluctuation)
Temperature deviation±1.0℃(deviation)
Humidity fluctuation※2(optional)±2.5%R.H
Humidity deviation※2(optional)±3%
Air exchange rate10~500/times±5%
Air velocity10~500mL/min(quality flow controller)
PowerAlternating current 220V/50Hz
Starting power※33kw
Operating power※31.5kw
External dimension of climate chamber※4W580mm*D890*H1050(when there are 6 inner tanke),it is up to the quantity of inner tanks
Background concentration of methanolsmaller than 15μg/m³,the lowest 6μg/m³
Background concentration of VOCsingle VOC has a concentration smaller than 2 μg/m³,T VOC 20 μg m dust filtrated TVOC has a concentration smaller than 20μg/m³
Rate of recoveryFormaldehyde,octanol,4 phenyl cyclohexene,dodecane and tetradecane have a recovery rate larger than 80%
Clean air systempressure>1.0Mpa,dry and clean gases(non combustible and noe toxic harmful gases such as air,nitrogen and argon)
Cooling modeAir cooling
ControllerColor touch screen man-machine interface;Mitsubishi pld controller



Note:

※ 1 Type:MV-6,MV presents micro VOC chamber and figure 6 presents quantity of inner tanks.Quantity of inner tanks and divided into 4,6,8.

※ 2 The function exists when there is only requirement for humidity.

※ 3 This data occurs when there are 6 inner tanks and it changes with quantity of inner tanks

※ 4 This data occurs when there are 6 inner tanks and it changes with quantity of inner tanks
