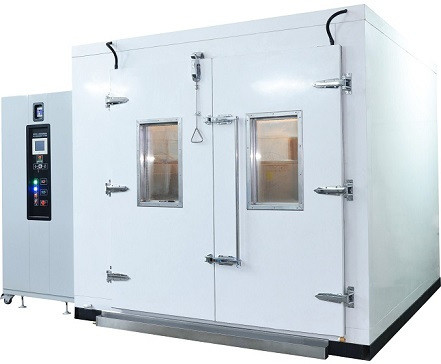

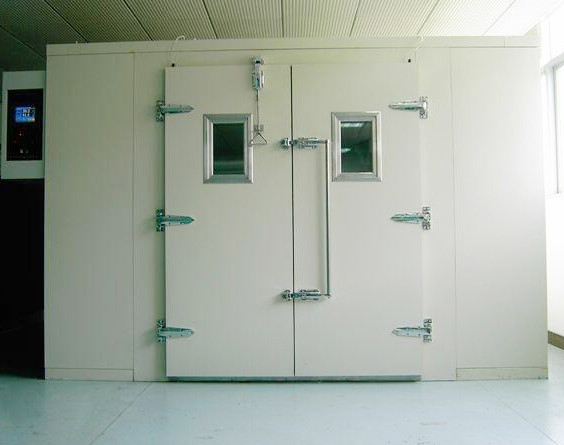

Various Models Formaldehyde Testing Equipment VOC Release Chamber Of Electric Appliance

Environmental Temperature:5~35℃Environmental Humidity:≤90%R.H
Requirements For Environmental:Cleanliness No Pollutant Source In The Surrounding EnvironmentAdjustable Range Of Humidity:30~80%R.H(20℃~30℃),5%(when At 65℃)
Pressure:10±5paBackground Concentration Of Methanol:Smaller Than 15μg/m³,the Lowest 6μg/m³
Highlight:ozone test chamber

climatic test chamber

  • Product Details
  • Inquiry

Product Purpose



Environmental chamber can provide standard testing environment(such as appointed temperature,relative humidity,air exchange rate and airflow rate) or simulate real indoor environment and test the pollutant release rate and release properties of various indoor materials and products,then it can:

• Confirm the influence of environment variables on the release rate and release properties of materials and products;

• Grade materials and products according to their release properties;

• Develop and validate the proposed model of indoor air pollutions;

• Evaluate indoor air quality(IAQ) according to the data and proposed model of indoor pollutants;



Technical Parameters:



Product ModelEV-1000EV-2000EV-3000EV-5000
Volume of climatechamber(WxDxH)mmD910*W1000*H1100D910*W2000*H1100D1350*W1500*H1500D1500*W1670*H2000
adjustable range of temperature20~70℃ high temperature cleaning 250℃20~70℃ high temperature cleaning 500℃
Environmental temperature5~35℃
Environmental humidity≤90%R.H
Requirements for EnvironmentalCleanliness No pollutant source in the surrounding environment
Adjustable range of humidity30~80%R.H(20℃~30℃),5%(when at 65℃)
Pressure10±5pa
Temperature fluctuation±0.3℃(fluctuation)
Temperature deviation±0.5℃(deviation)
Humidity fluctuation±2.5%R.H
Humidity deviation±3%
Air exchange rate0.2~5/h±5%
Air velocity0.1m/s 0.3m/s(Range)
PowerAlternating current 380V/50Hz three-phase power supply 4/5 wiring system
Starting power15kw20kw30kw35kw
Operating power7kw9kw14kw16kw
Background concentration of methanolsmaller than 15μg/m³,the lowest 6μg/m³
Background concentration of VOCsingle VOC has a concentration smaller than 2 μg/m³,T VOC 20 μg m dust filtrated TVOC has a concentration smaller than 20μg/m³
Rate of recoveryFormaldehyde,octanol,4 phenyl cyclohexene,dodecane and tetradecane have a recovery rate larger than 80%
Clean air systemStandard configuration
