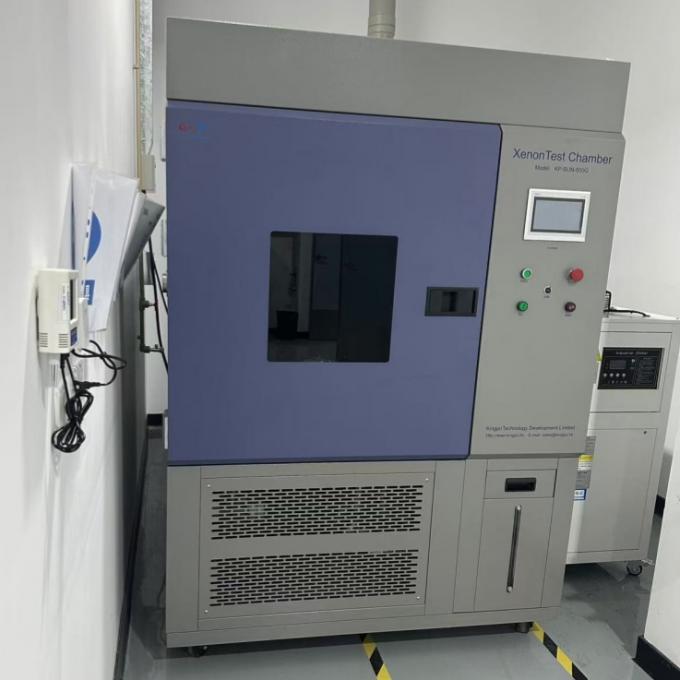

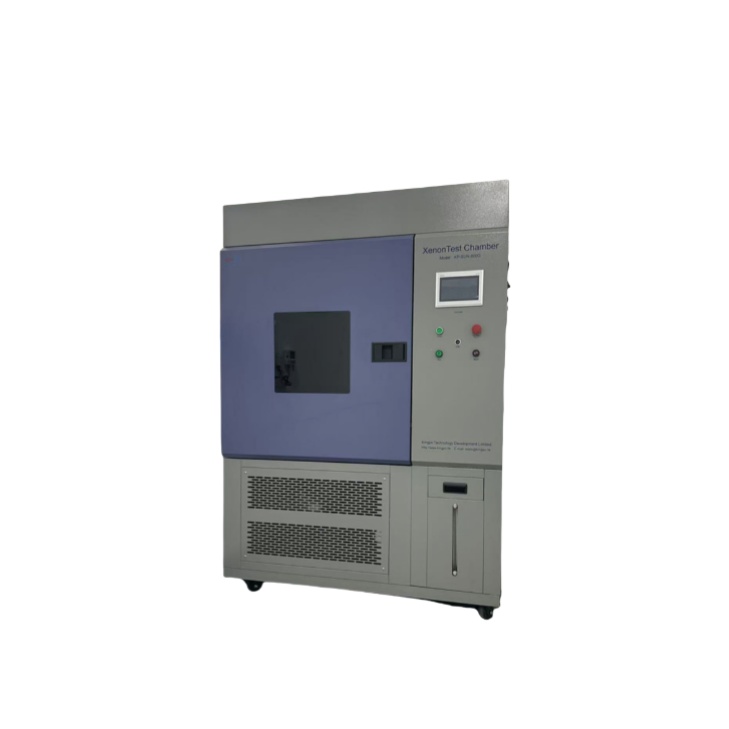

UV Radiation Test Equipment , Xenon Test Chamber Long Lamp Life 1200h
- Product Details
- Inquiry
Product Description

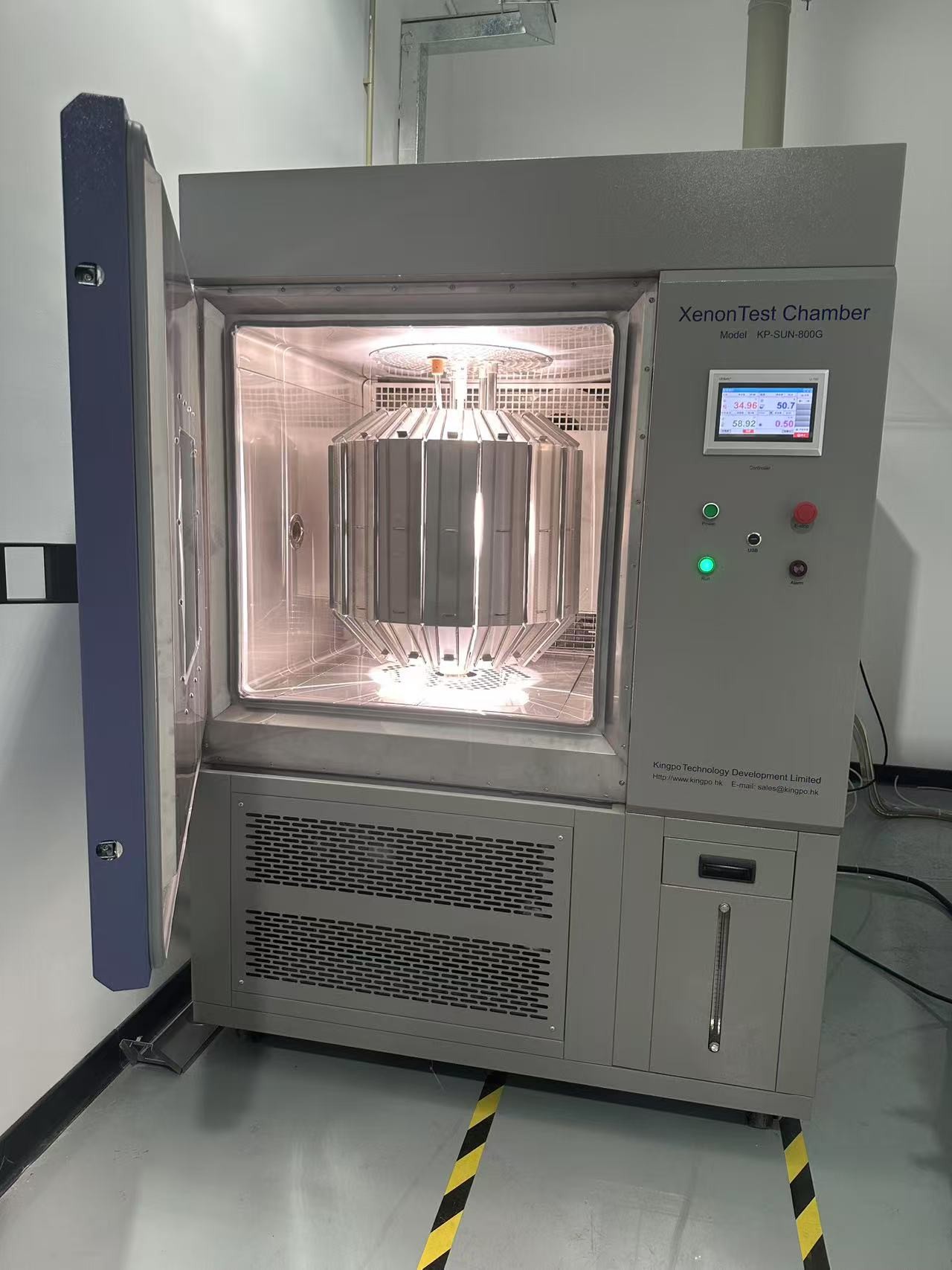

UV Radiation Test Equipment , Xenon Test Chamber
IEC62368-1 Standard requirement:
C.2 UV light conditioning test
C.2.1 Test apparatus
Samples are exposed to UV light by using one of the following apparatus:
– a twin enclosed carbon-arc (see C.2.3) with continuous exposure for a minimum of 720 h.
The test apparatus shall operate with a black-panel temperature of 63 °C ± 3 °C in a relative humidity of (50 ± 5) %; or
– a xenon-arc (see C.2.4) with continuous exposure for a minimum of 1 000 h. The test apparatus shall operate with a 6 500 W, water-cooled xenon-arc lamp, a spectral irradiance of 0,35 W/m² at 340 nm, a black-panel temperature of 63 °C ± 3 °C in a relative humidity of (50 ± 5) %
Specifications:
| Item | Specification |
| Internal Dimension (W*D*H) | 800*800*800mm(W*D*H) |
| External Dimension (W*D*H) | 1350*1200*2050 mm(W*D*H) |
| Inner chamber material | SUS 304 # Stainless Steel, Anti-rust, easy to clean |
| Outer chamber material | cold plate rust proof and plastic spraying treatment |
| Temperature | RT+10℃～70℃ |
| Temperature Uniformity | ±3℃ |
| Humidity Range | Light 20% ~ 60%RH, dark: 30% ~ 98%RH |
| Irradiated intensity | 0.35-1.1W/m² |
| lamp power | 6500W |
| Lamp life | 1200h |
| Blank panel temperature | Light 60℃ ~ 100℃, dark 40 ~ 70℃ |
| Temperature sensor | PT100 high precision temperature sensor |
| Control system | PLC controller |

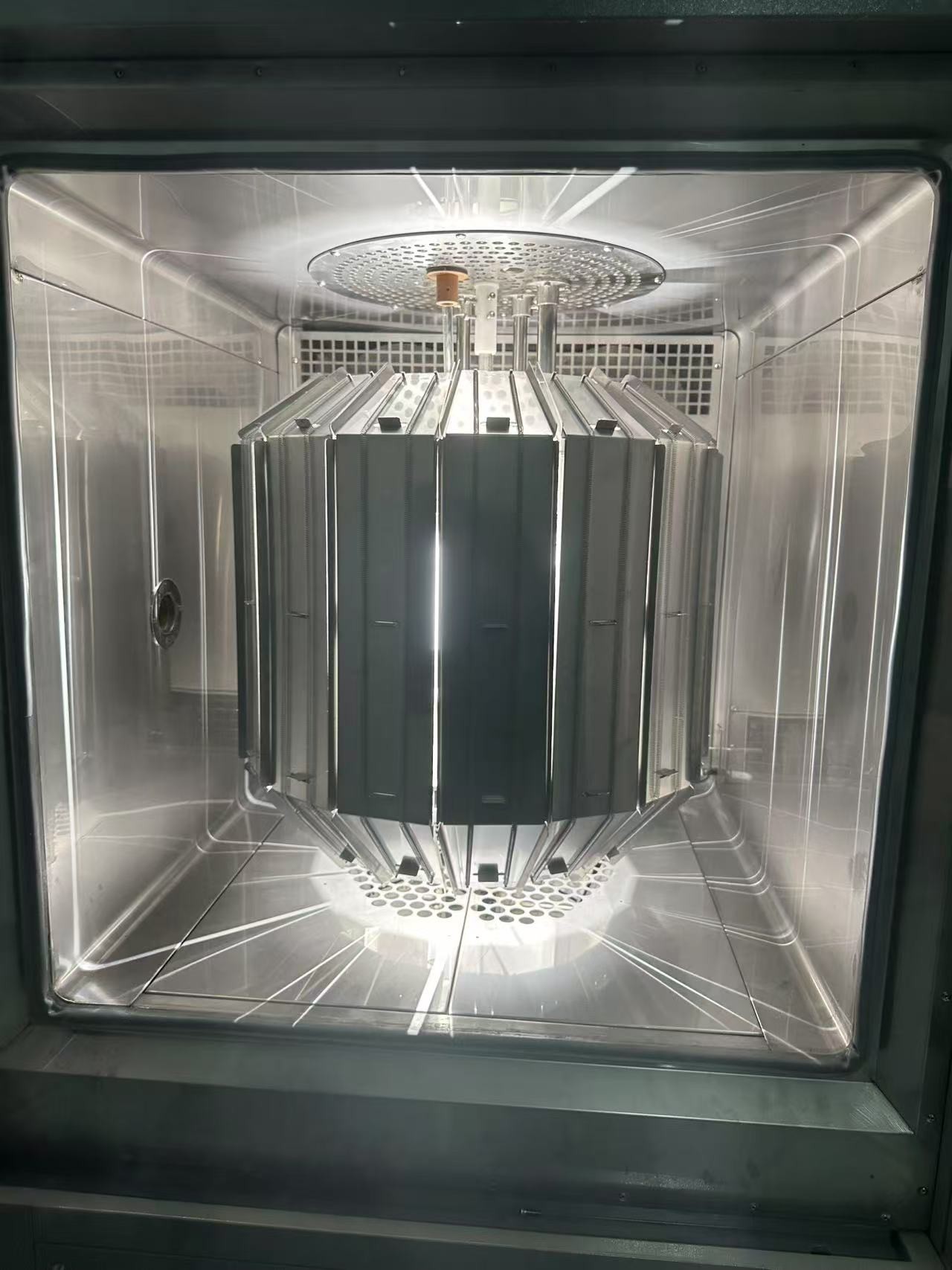

| Distance from specimen to arc center | 250~300mm, Effective exposure area 3760cm² |
| Filter | Borosilicate filter inside and outside |
| Water pressure at nozzle | 0.12～0.15Mpa |
| Nozzle diameter | 0.8mm |
| Water supply time | 0-999min |
| Cooling Model | Cold water machine |
| Power | AC380V, 60Hz. |
| Safety Protection | Over heat protection for fan, |
| Over load protection for cooling system, | |
| Over pressure protection for cooling system, | |
| Over temperature protection, | |
| Over heat and over flow protection for water pump, | |
| Leakage protection, Water shortage protection, | |
| Auto stop after failure warning |

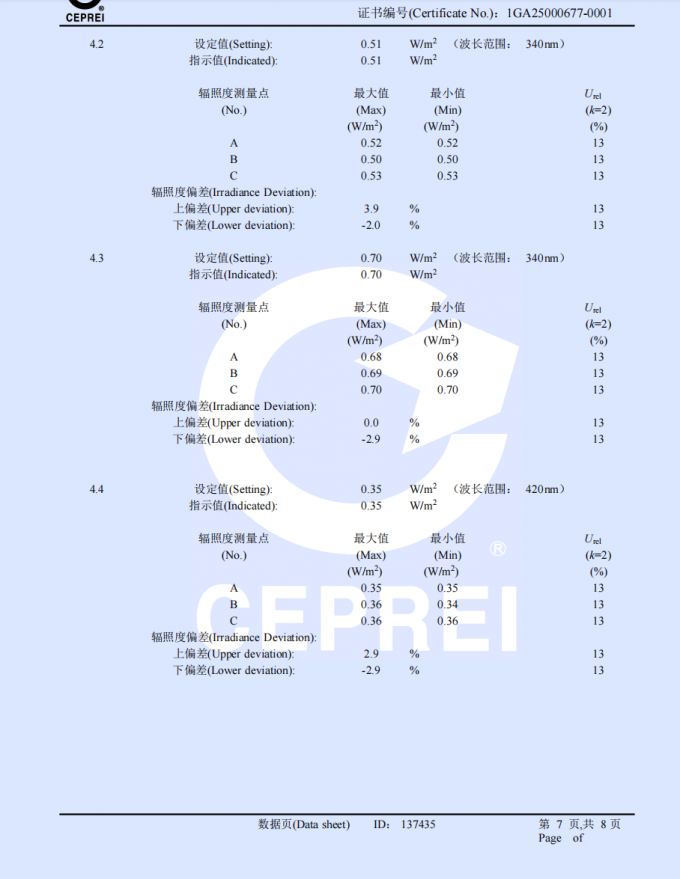

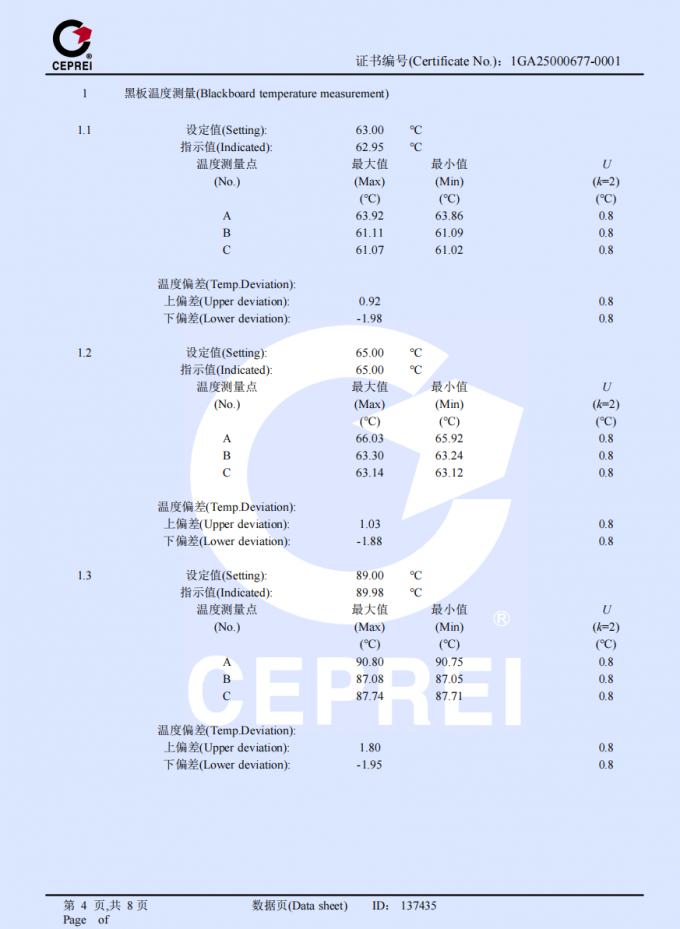

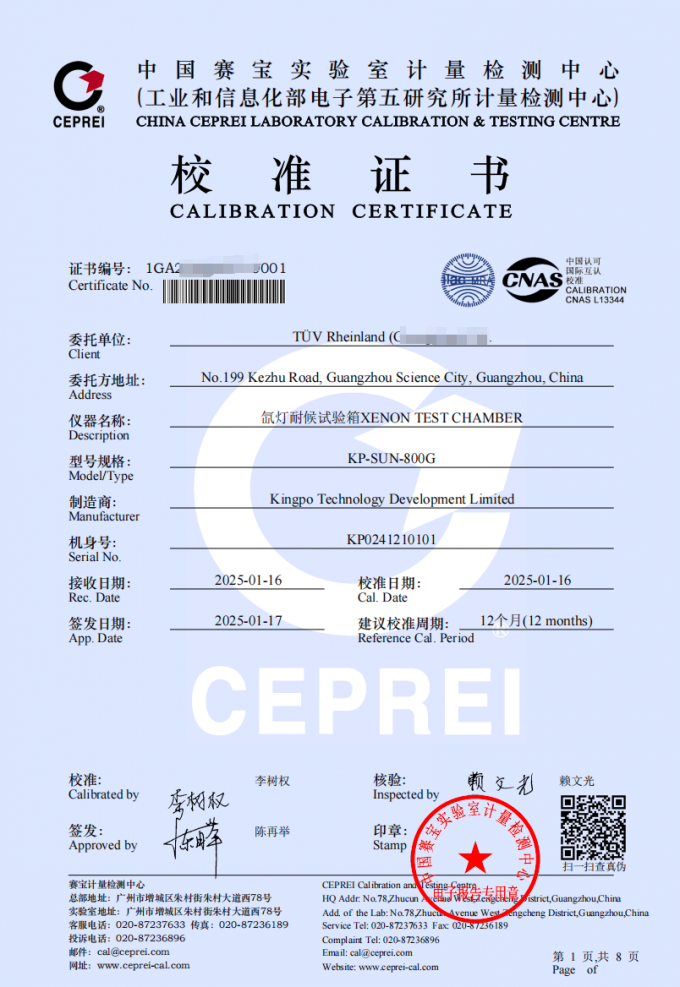

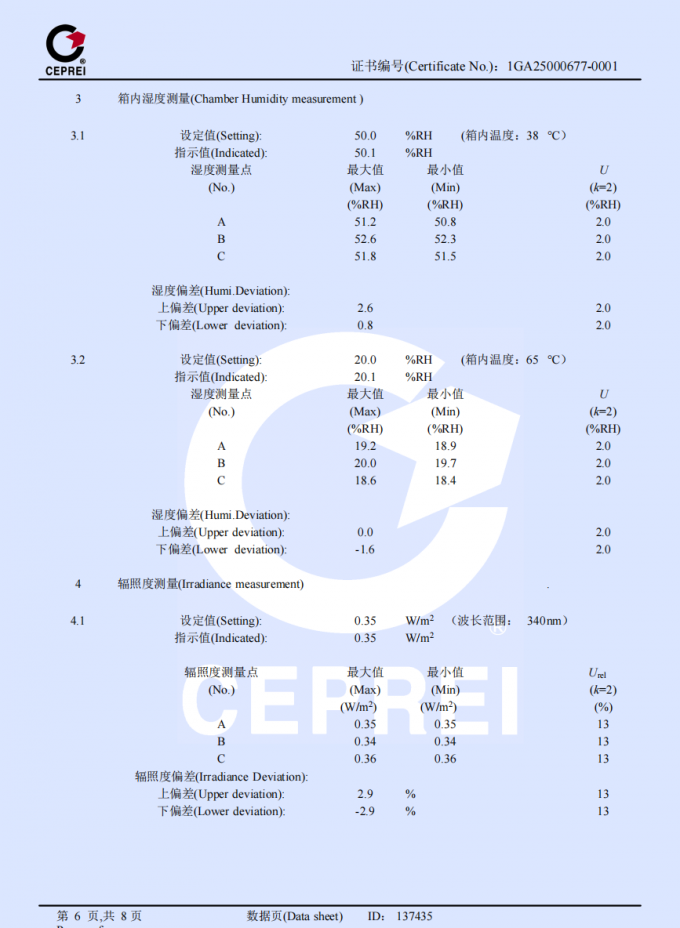

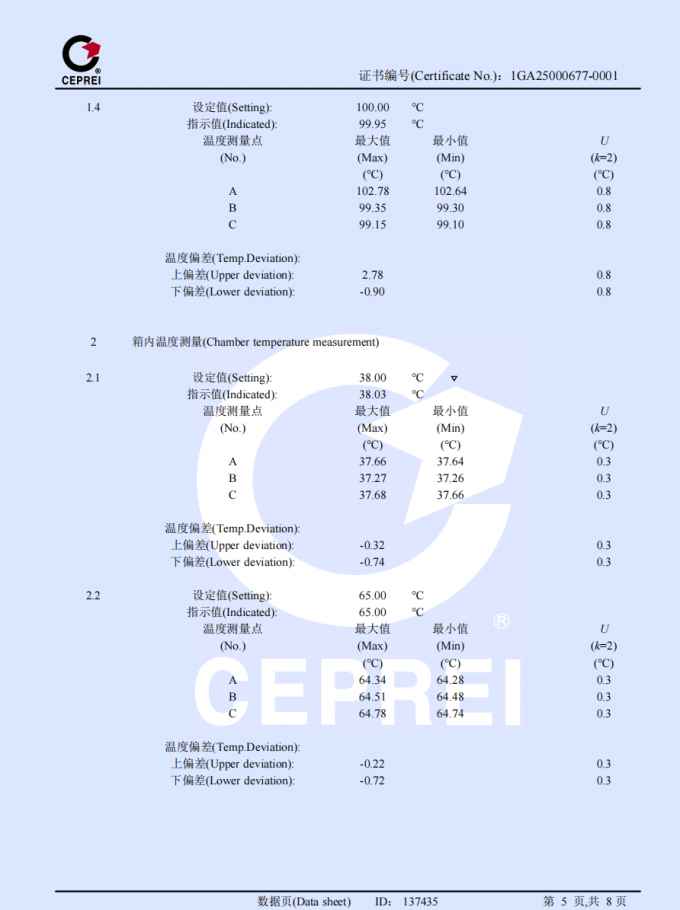

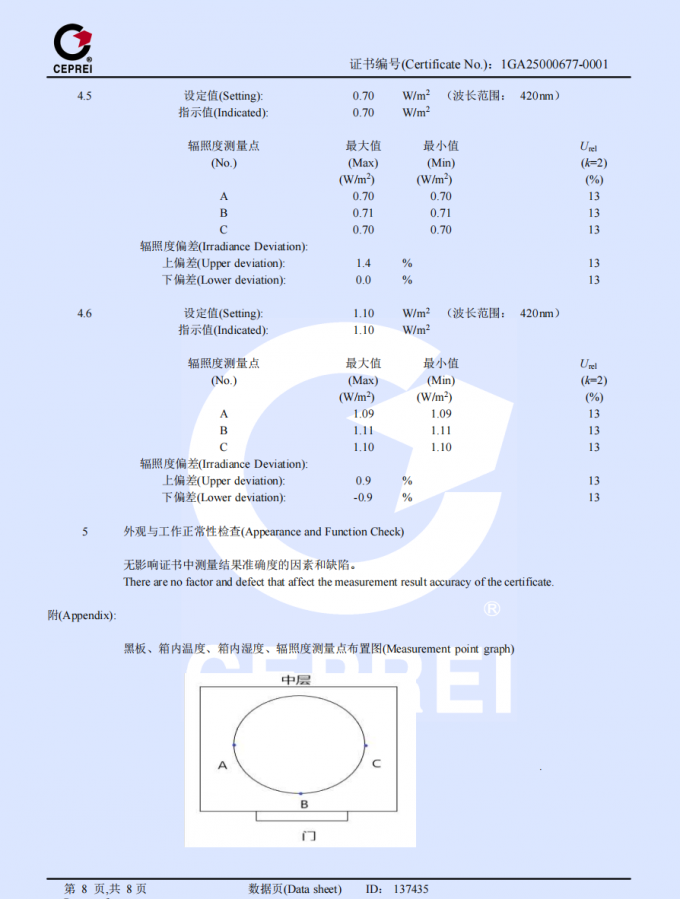

Calibration certificate template
