Universal Material Tester , Tensile Strength Testing Machine X-L0201 / X-L0202
- Product Details
- Inquiry
Product Description

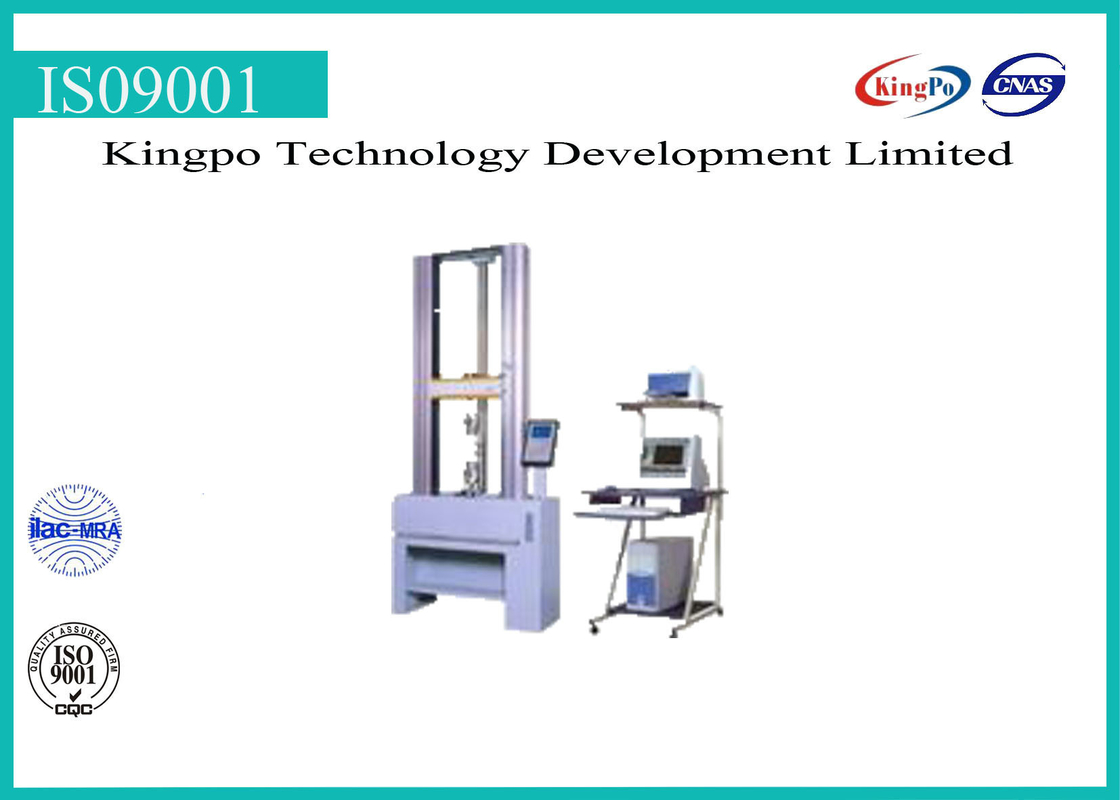

Universal Material Tester ( Tensile Strength Tester )
Technical Parameter
| type | X-L0201 | X-L0202 |
| Test range(KN) | 0-50 | |
| Force measurement level | 1%,2%,5%,10%,20%,50%,100% | |
| Force measurement resolution | 1/500,000FS of sensor | |
| Force measurement precision | within sensor display value±0.5% | |
| Test speed | 0.01-500mm/min(stepless) | |
| speed precision | Within display value±0.5% | |
| deformation precision | Within display value±0.5% | |
| displacement precision | Within display value±0.5% | |
| Effective test stroke | 800mm(after being equipped with clamp) | |
| Effective test width | 400mm | 340mm |
| power | AC 220V 400W | |
| exterior dimension of host | 680 x 500 x 2250mm | 600 x 460 x 1540mm |
| Host weight | 200KG | 150KG |
