Type: KP-LLC-50、80、120、150、225、200、1000L Innage: 50、80、120、150、225、200、1000LL Preheating Temperature: RT+10~+180℃ Heating Rate: RT+10℃~+180℃≤40min Precooling Temperature: 0℃~-70℃ Cooling Rate: -RT+10℃~-60℃≤70min Lab Temperature Uniformity: ±2℃ Lab Temperature Range: -20、-40、-60℃~+150℃ Lab Temperature Recovery: Conversion Time:10s Settling Time≤5min Highlight: ozone test chamber, climatic test chamber

Temperature Range:-20℃、-40℃、-60℃、-70℃~-80℃(optional)Temperature Fluctuations Range:±0.5℃
Temperature Conformity:±5℃Heating Rate:1.2~2℃/min
Cooling Rate:0.7~1℃/minThermal Insulation Material:Rigid Polyurethane Foam
Highlight:ozone test chamber

temperature and humidity chamber

  • Product Details
  • Inquiry

Product Description

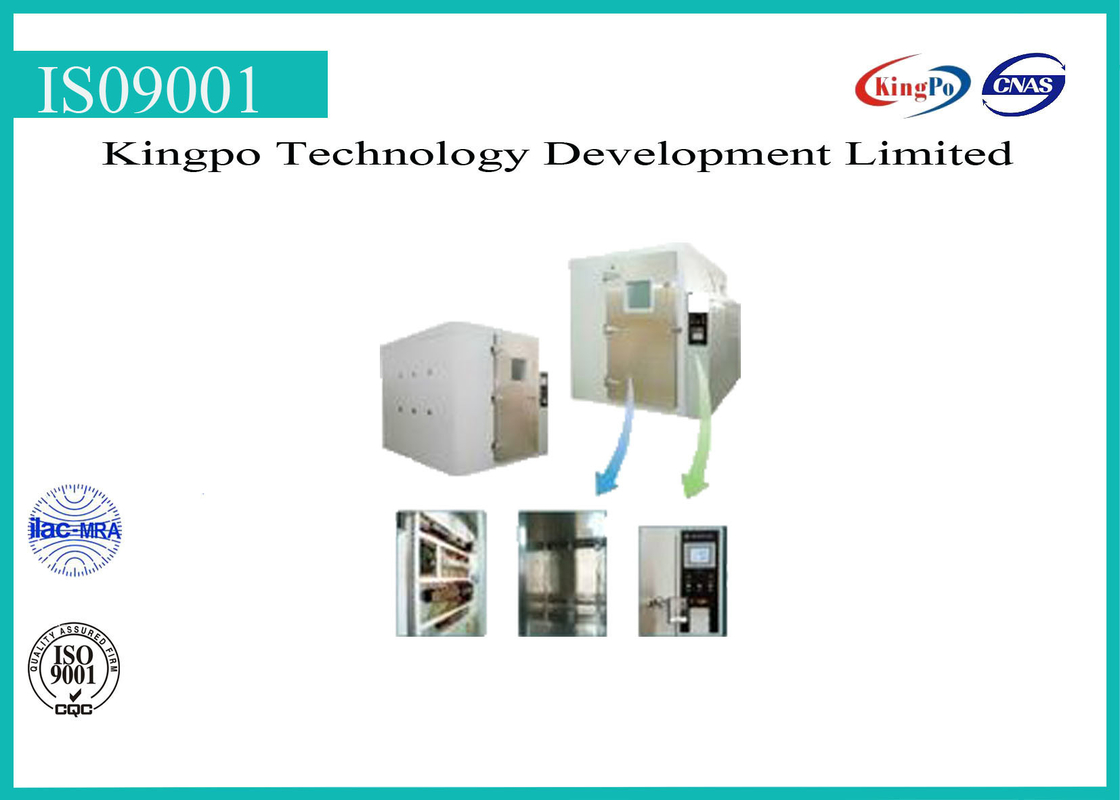

Walk-in Constant Temperature-humidity Test Chamber





Function Description

Constant Temperature and Humidity Test Chamber a.k.a. environmental tester is specialized in testing properties of various kinds of material’s heat resistance,cold resistance,dry resistance and humidity resistance,

which is applicable to electron,electrical appliance,meter,food,automobile,metal,chemis-try,construction material,aviation,medical product,etc,for their quality inspection.



Technical Parameter:



working chamber dimension5,10,20,50,100 cubic metre
working chamber innage2000 x 3000 x 2200MM
Exterior dimension2500 x 3600 x 2500MM
measurement range



Temperature range-20℃,-40℃,-60℃,-70℃~-80℃(optional)
Temperature fluctuations range±0.5℃
Temperature conformity±5℃
heating rate1.2~2℃/min
Cooling Rate0.7~1℃/min international standard(linear temperature change rate as customer required)
Note:above indexes are measured in condition of atmospheric pressure and no load
structure and materialLaboratory structureThe unity consists of laboratory(with a single door made up of laminboard on the left),electric control cabinet(on the right) and refrigerator cabinet(at the rear).
outer wall materialHigh end colored copper sheet
inner wall materialSUS304 stainless steel,corrosion proof,easy to clean
thermal insulation materialrigid polyurethane foam
Ventilation passagecentrifugal fan;tuyere can debug air volume.
doorSingle door;double layer and high low temperature resistant stainless steel sheet and silicon rubber with double seal;inner&outer wrench to avoid being locked inside(consider a double door for comparatively bigger volume)
Observation windowSize:260 x 380mm;electroplating film damp-proof and insulating observation window;11w Philips fluorescent lamp
Programmable controllerKorean Samwontech TIME880 colorful touch screen
Refrigeration and

dehumidification system

German BITZER Hermetic compressor
Ventilation passage systemMaterial:SUS304first class mirror panel blow cycle:hot wind positive loop system
Heating and humidification systemHeating:nickel-chrome heating wire

Humidification: nickel-chrome humidification pipe

Power supplyAC 380V 50HZ 6KW
