Three Comprehensive Environmental Testing Equipment , Climatic Test Chamber

Place Of Origin:Guangdong, China (Mainland)Temp. Range:-70 ~ -20 ~ +150℃
Humidity Rage:20 ~98%RHTemp. Fluctuation:±0.5℃
Temp. Difference:±2℃Humidity Difference:±3.0%RH(>75%RH),±5.0%RH,±5.0%RH(≤75%RH)
Highlight:temperature and humidity chamber

climatic test chamber

  • Product Details
  • Inquiry

Product Description

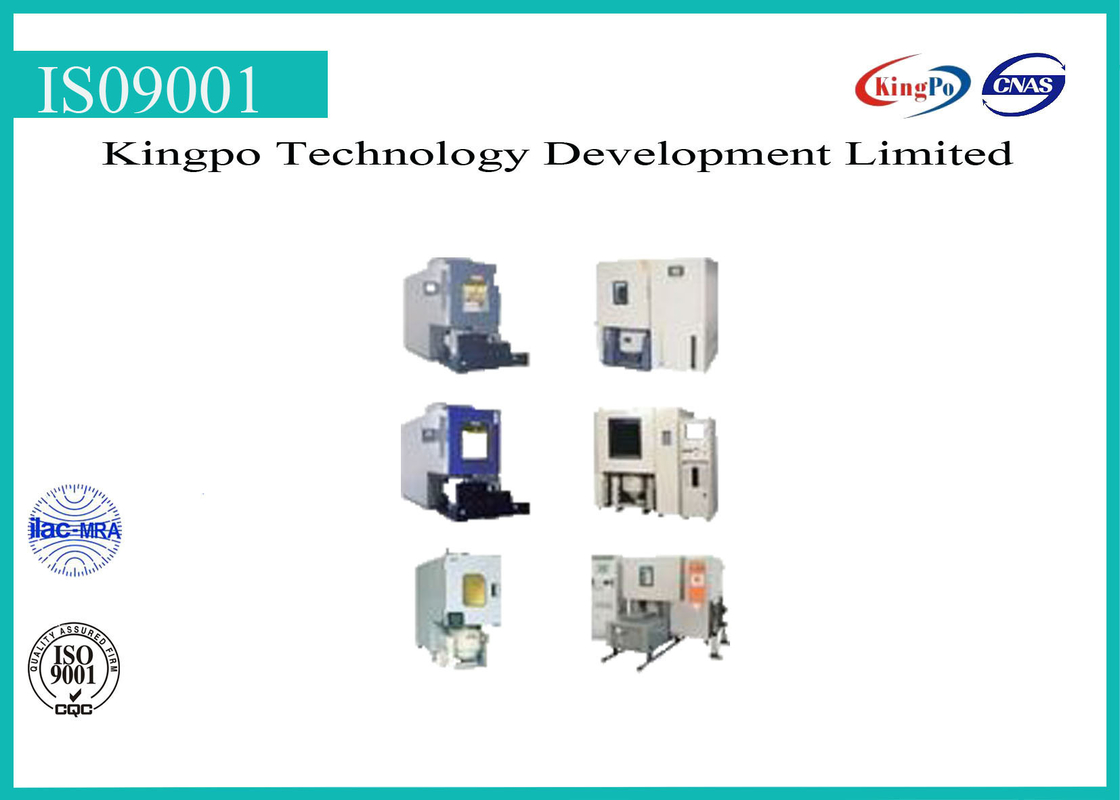

Three comprehensive environmental test chamber



Series of three integrated main chamber for the aerospace, aviation, petroleum, chemical, electronics, communications, and other research and production units to provide temperature and humidity changes in the environment, while the electric vibration test chamber in accordance with the provisions of the cycle of stress applied to the test product , and for users of the machine (or parts), electrical appliances, equipment, materials for temperature and humidity, vibration stress screening test integrated to the adaptability of the test product evaluation or to evaluate the behavior of the test product.



TypeKP-ZH150KP-ZH225KP-ZH408KP-ZH500KP-ZH800KP-ZH1000
Nominal Innage(L)1502254085008001000
PropertiesTemp. range-70 ~ -20 ~ +150℃
Humidity rage20 ~98%RH
Temp. fluctuation±0.5℃
Temp. difference±2℃
Humidity difference±3.0%RH(>75%RH),±5.0%RH,±5.0%RH(≤75%RH)
Heating time-20 ~ +150℃-40 ~ +150℃



-70 ~ +150℃
≤60min
Cooling time+20 ~ +20℃+20 ~ +40℃+20 ~ +70℃
≤45min≤60min≤80min
Temperature and humidity modeBT(H)C Balanced temperature and humidity control mode
MaterialExterior/interiorStainless steel SUS304,A3 cold rolled steel sheet(milky white)/stainless steel SUS304
InsulationPUF+fibrous glass
RegulatorHeaterHeater with nickel-chrome heating wire
HumidifierExternal humidification device/steam humidification
FanCentrifugal motor with long axis,SIROCCO FAN
RefrigeratorFrench Tecumseh originally imported compressor
controllerMonitorIndependent R&D PLC programming ability;7.2 inch TFT colorful touch screen,Chinese/English menu;touch screen input
Operating modeProgram mode(120 groups programmable;99 segments in maximum/group;constant value;
Setting rangeTemp.;-90.00℃~200.00℃,humidity:1.0%~100%RH±1%RH
Display ResolutionTemp.:0.1℃;time:0.1min;humidity:0.1%RH;(if the device has humidity function)
Input&outputPT100 input,NO.2 SSR control input;No. 16electric relay output;four-point alert+16DI external obstacle alert
Auxiliary propertiesFault alarm and cause &processing prompt;power-off protection;upper and lower temp. Protection;timing function(automatic start-up&stop);Self-diagnose;RAM with Battery protection ;setting value can be saved
Water supplyModeWater pump lifting +portable draw water tank+fixed storage tank(resistivity >500Ωm)
Standard assemblyObservation window,1 cable hole (ϕ50mm),2 sets of sample rack,1 cable wire;1 sample power-supply control terminal,4 caster wheels,3 bracing frames
Safety deviceResidual current circuit-breaker;overheated ,over current and pressure protection of compressor;temperature fuse;over temperature protection;overheated protection of fan;dry combustion protector;waterway system protection(only for damp-heat type);high and low temperature sealing protection;dehumidification protection of sealing protection
