Product Description

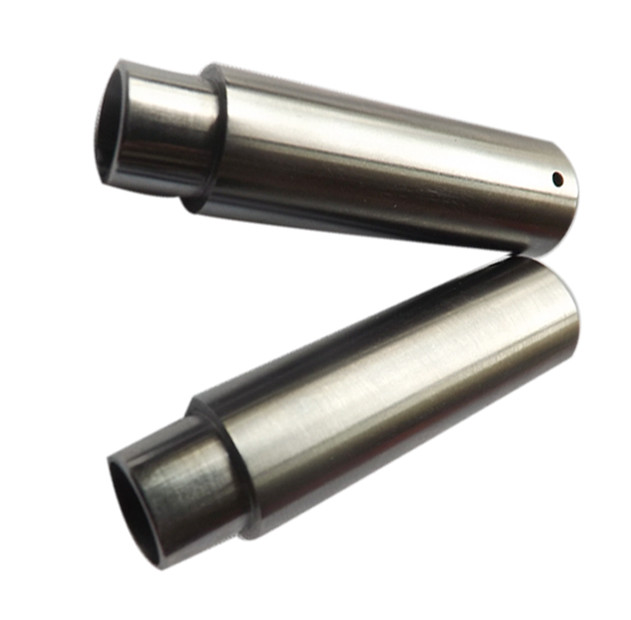

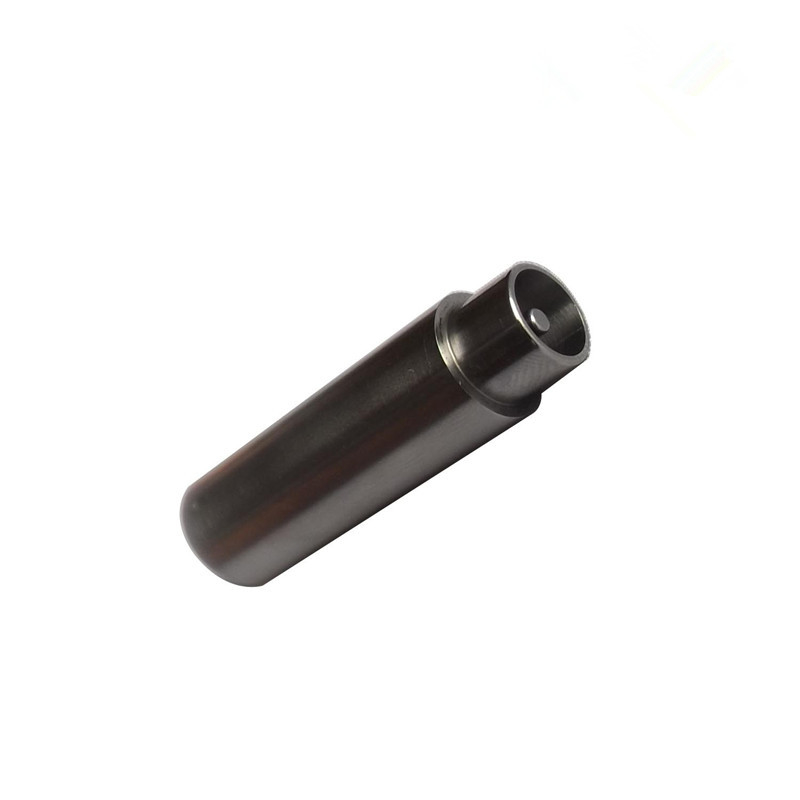

Test plug for mechanical tests on antenna coaxial sockets

Reference Standard:

IEC60065-figure 8

Specification:

Endurance test:

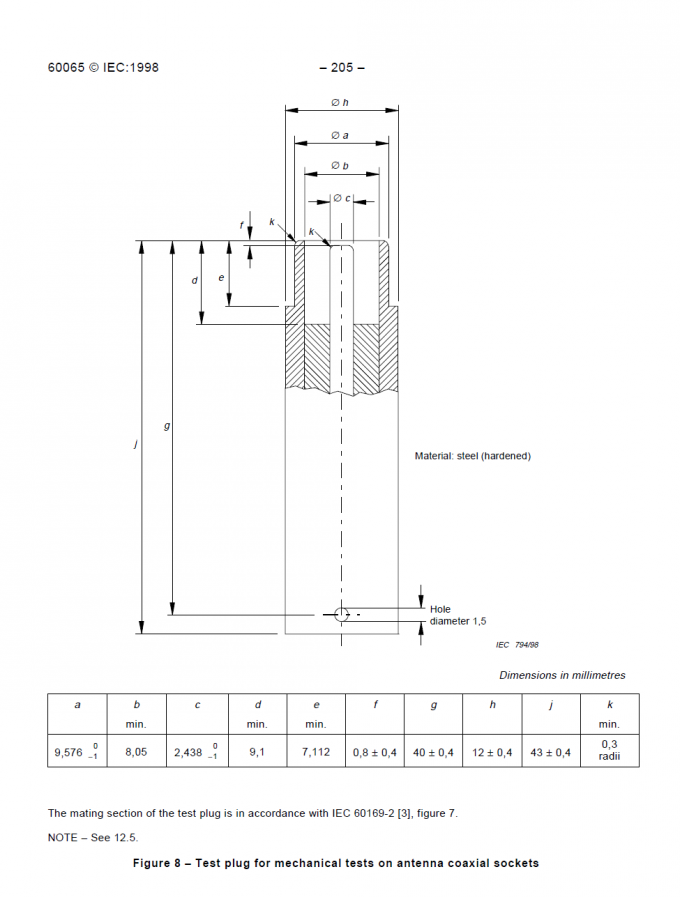

A test plug as shown in figure 8 is inserted and withdrawn from the socket 100 times. Care is to
be taken not to damage the socket intentionally during insertion and withdrawal of the test plug.
