Suitable tool to simulate a straight metal object, 1mm in diameter, length up to 13 mm,IEC2368-Annex P
- Product Details
- Inquiry
Product Description

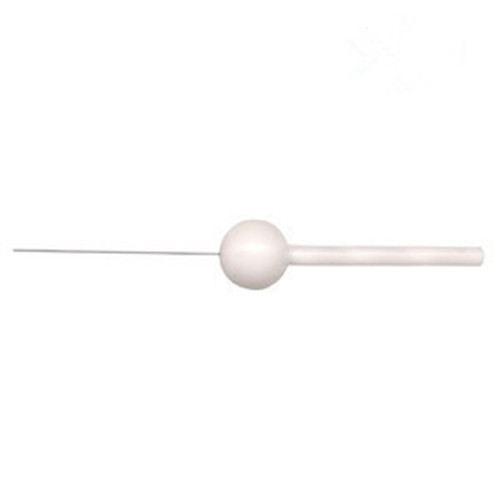

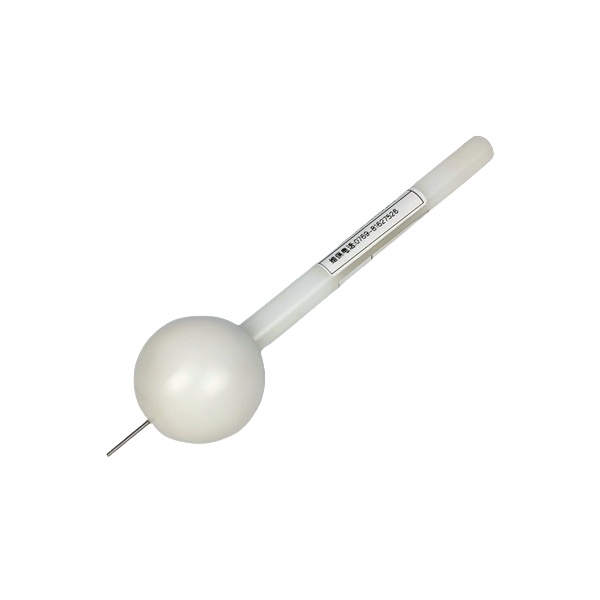

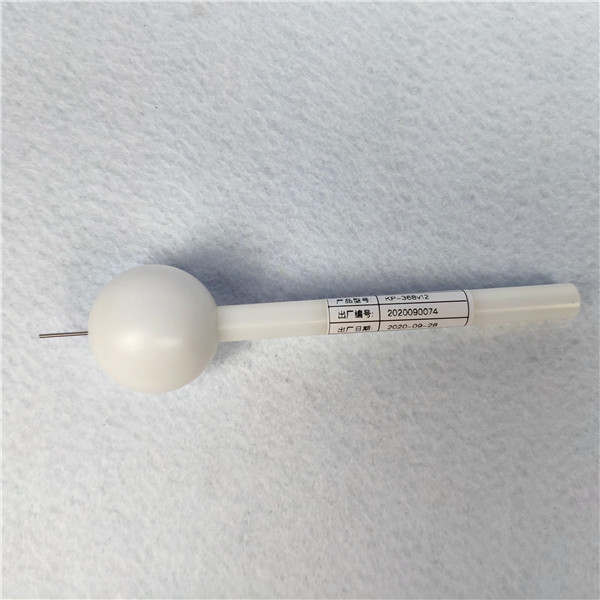

Terminal probe
Reference Standard:
IEC62368-1-Figure V.5

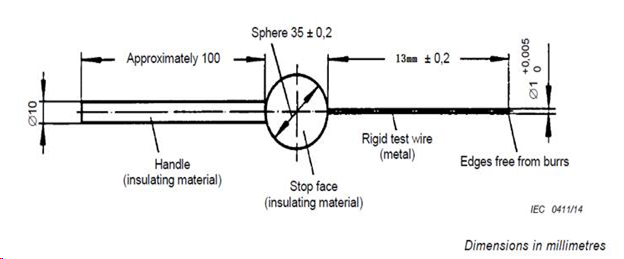

Technical Parameters:
1, Test Probe Length :13mm
2, Test Probe Diameter:1.0 (0, +0.005)mm
3, Dam- sphere Diameter:35mm
4, Handle Diameter:10mm
5, Handle Length :100mm
6, According to IEC61032 figure 4 (the Test probe D)
