Rapid Temperature Test Chamber (ESS Screening Chamber)

Environmental Temperature:5~35℃Environmental Humidity:≤90%R.H
Temperature Fluctuation:±0.3℃Temperature Deviation:±0.5℃
Humidity Fluctuation:±2.5%R.HHumidity Deviation:±30%
Highlight:Rapid temperature test chamber

ESS screening test chamber

ESS screening temperature test chamber

  • Product Details
  • Inquiry

Product Description

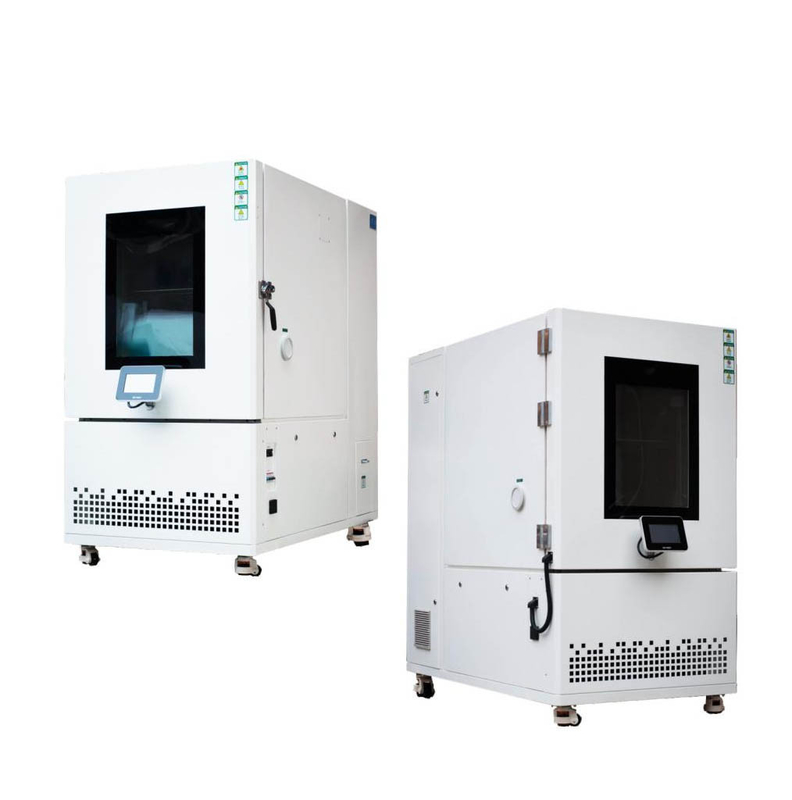

Rapid temperature test chamber (ESS screening chamber)

Rapid Temperature Test Chamber (ESS Screening Chamber) 0



Product Description:

Rapid temperature change test chamber, environmental stress screening (ESS) test chamber, suitable for environmental stress screening test, through the environmental stress screening of the product to accelerate the discovery of product design defects and improve product reliability.

Product features:

Wide temperature area: large capacity test area

Specimen temperature control: optional test temperature control function is available

Novel design: the design is more case-specific and practical

Specification

ModelQTH-300-SCQTH-600-SCQTH-990-SCQTH-300-SDQTH-600-SDQTH-990-SD
Inside Dimension
(W*H*D)mm
580*750*765800*950*8001100*950*950580*750*765800*950*8001100*950*950
Outer Dimension
(W*H*D)mm
880*1730*15701000*1950*19001400*1950*2100880*1730*15701000*1950*19001400*1950*2100
Inner volume(L)300600990300600990
Temperature range-40~+150℃-60~+150℃
Heating rate5℃/min,10℃/min linear(can be customized)
Cooling rate5℃/min linear (customizable)
Temperature fluctuation degree±0.5℃ (no-load condition)
Temperature Deviation±2.0℃ (no-load condition)
Temperature uniformity±2.0℃ (no-load condition)
Humidity range10%RH~98%RH
Temperature change rateHeating rate:not less than 5.0℃/10.0℃/min(-55~85℃ average throughout)
Cooling rate:not less than 2.0℃/min(+85~-55℃ average throughout)
Cooling methodAir-cooled (or water-cooled)
Inner and outer box materialSUS304 stainless steel + cold plate electrostatic spray baking paint
Water supply methodExtra large water tank + automatic water refill device
Protection devicesCompressor overpressure, overcurrent, overheating protection, box overtemperature protection, heater air burning protection, overcurrent jump off protection, humidifier air burning protection, fan overcurrent protection, leakage
Electricity protection, water tank water shortage protection.
