Professional High Temperature Test Chamber Of Aldehyde Ketone From The Interiors

Internal Dimension Of The Room:W6000*H2100*D4000mmExternal Dimension Of The Room:W6200*H2950*D4200mm
Temperature Range:Indoor Temperature +20℃~85℃±2℃(adjustable Temperature)Temperature Error:±0.5℃
Temperature Deviation:±2℃Reference Standard:ISO 12219-2:2012(E) Air In Road Vehicles Section 2
Highlight:temperature and humidity chamber

climatic test chamber

  • Product Details
  • Inquiry

Product Description

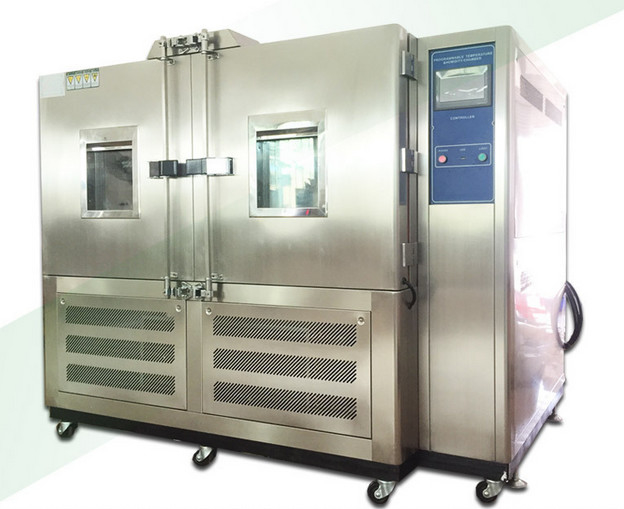

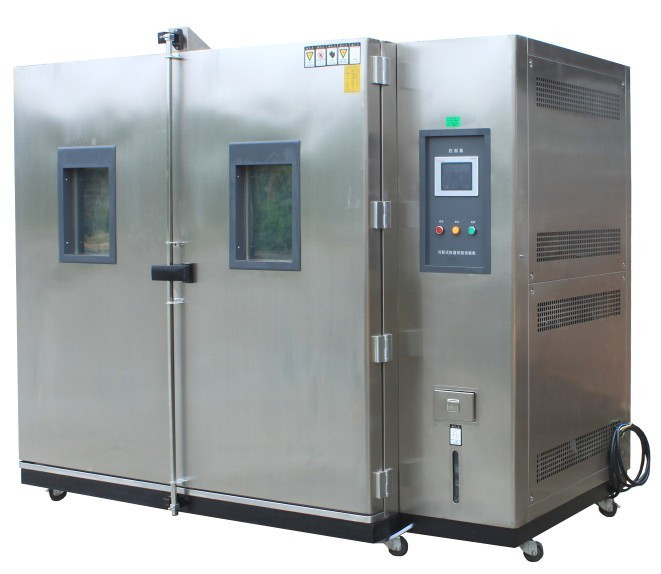

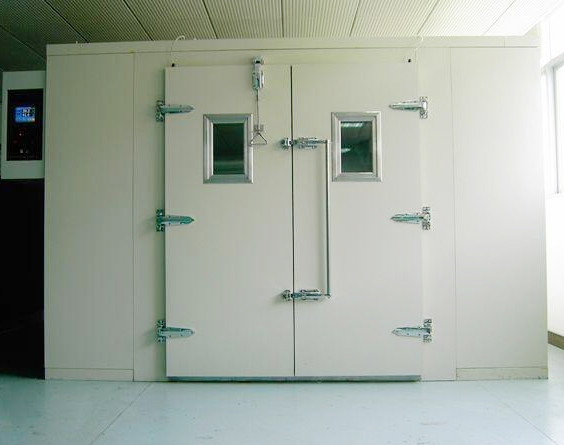

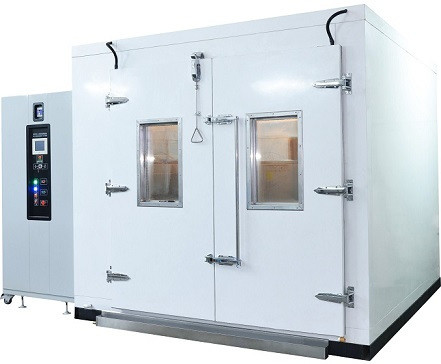

High Temperature Test Chamber of Aldehyde Ketone from the Interiors(Sampling bag method)





Product Purpose



Environmental chamber can provide standard testing environment(such as appointed temperature,relative humidity,air exchange rate and airflow rate) or simulate real indoor environment and test the pollutant release rate and release properties of various indoor materials and products,then it can:

• Confirm the influence of environment variables on the release rate and release properties of materials and products;

•  Grade materials and products according to their release properties;

•  Develop and validate the proposed model of indoor air pollutions;

•  Evaluate indoor air quality(IAQ) according to the data and proposed model of indoor pollutants;



Test principles



The process of the test of pollutant release with the environmental chamber can be summarized as: putting materials and products or their samples in the test chamber,and adjusting environmental conditions such as temperature in the chamber,relatively humidity and air exchange rate;sampling at the exhaust port or the inside of the environmental chamber;adopting appropriate methods to analyze gas samples and identify major pollutants and the changes in their concentration with the time;then confirm the release rate and release properties of materials and products according to the measured concentration.



Reference Standard



ISO 12219-2:2012(E) Air in road vehicles section 2:sampling bad method detection methods for screening the release volume og volatile organic compounds from interiors and materials inside the vehicle



Technical Parameters:



Internal dimension of the roomW6000*H2100*D4000mm(or customized design upon available request)
External dimension of the roomW6200*H2950*D4200mm(or customized design upon available request)
Temperature rangeindoor temperature +20℃~85℃±2℃(adjustable temperature)
Temperature error±0.5℃
Temperature deviation±2℃



Indoor Air Cleanliness



itemsMax( μg/m³)15
Formaldehyde15
Acetaldehyde10
Toluene20
Ethylbenzene20
Xylene20
Styrene5
P-dichlorobenzene5
Tetradecane5
Acetone10
TVOC350



1.No pollutant source in the surrounding environment.



2.Power AC380V 25Kw(this power is the rated output required by a volume increases correspondingly as the volume increases.When the volume is 45m³,the power is 45Kw.
