Ozone Test Chamber / Ozone Resistance Test For Rubber KP-CY-150 / KP-CY-500

Ozone Concentration:	10-1000PPhm（directly Read And Control）	Ozone Concentration Difference:	≤10%
Test Chamber Temperature:	RT+10℃～60℃	Temperature Uniformity:	±2℃
Temperature Fluctuations Degree:	≤±0.5℃	Sample Swiveling Speed:	(20-25)mm/s
Gas Velocity Of Test Chamber:	8-16mm/s	Dynamic Clamp:	6 Sets Of Chuck（optional）
Highlight:	ozone test chamber climatic test chamber

Send Inquiry Chat Now

Product Details
Inquiry

Product Description

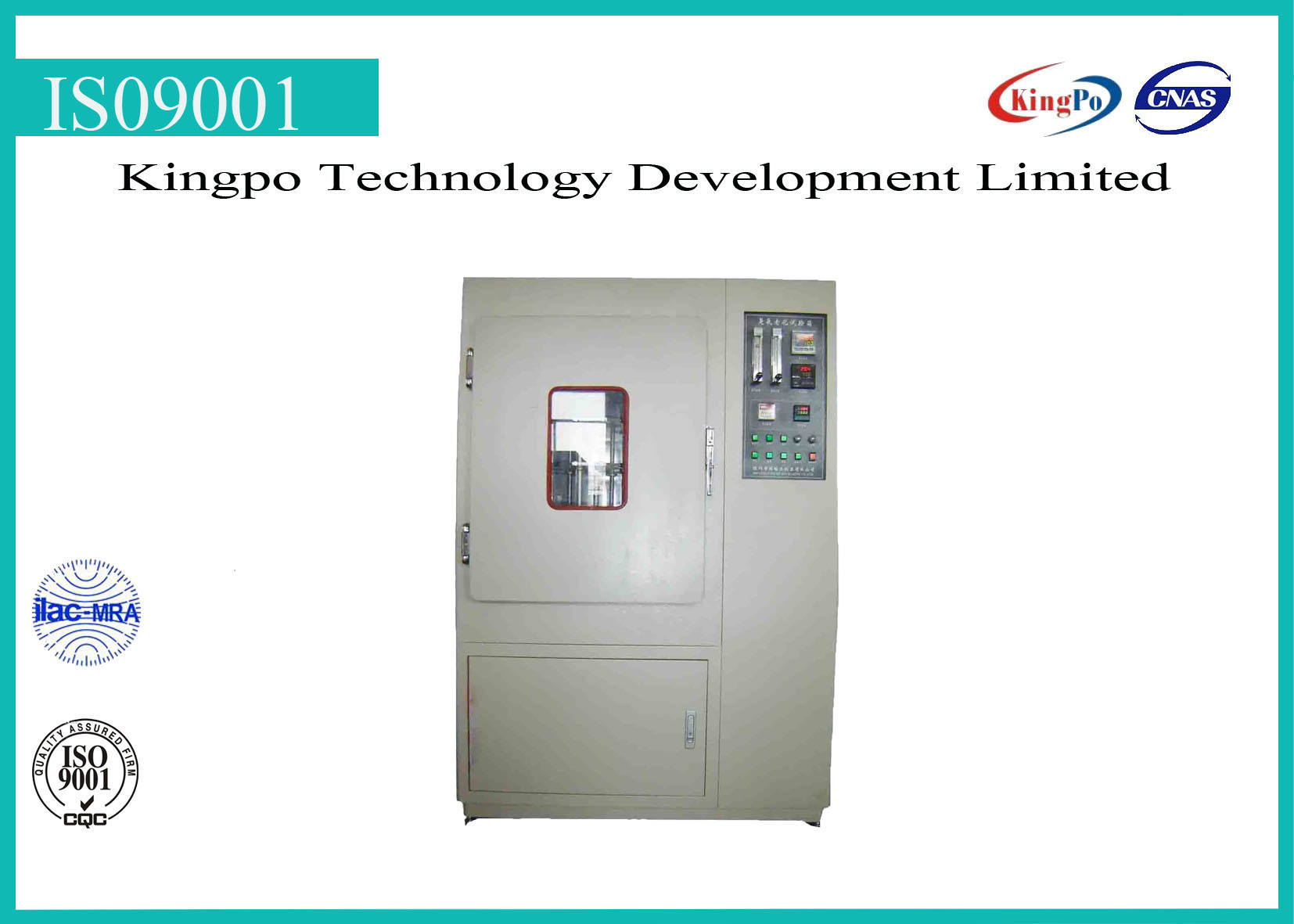

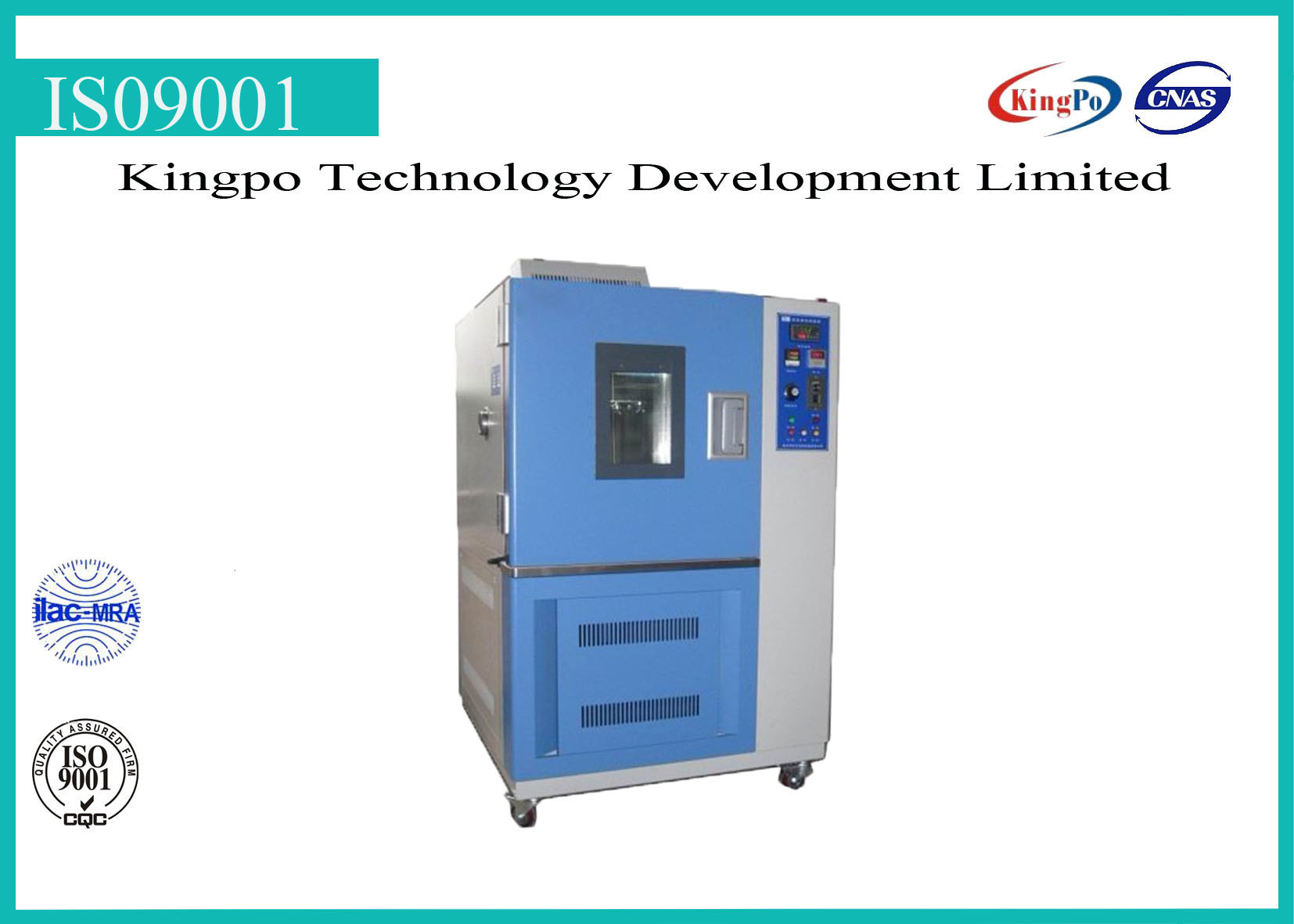

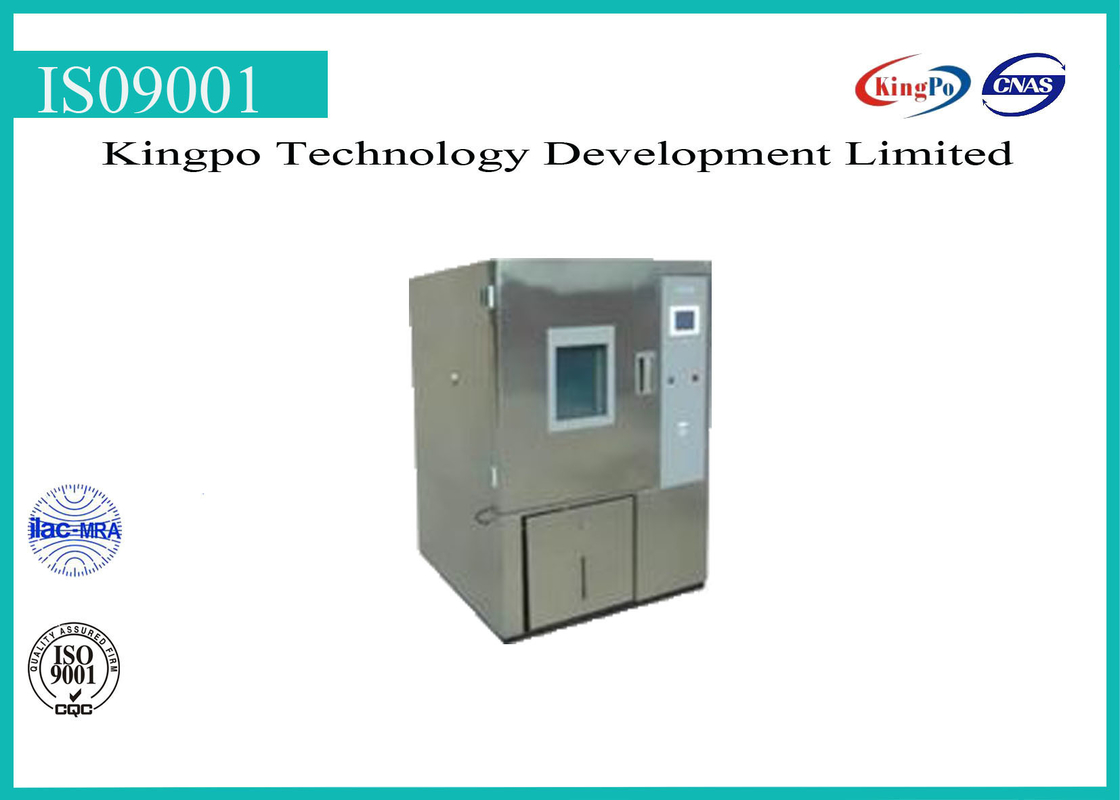

Ozone Resistance Test Chamber

Function Description

The product is suitable for examining the obvious difference of rubber material under difference ozone concentration and temperature.To what extent damage will be caused by tensile strain ozone test and used product influenced by ozone depends on size,type and strain size .

Technical Parameter

type	KP-CY-150	KP-CY-500
Interior dimension	D500 x W500 x H600MM	D800 x W800 x H800MM
Ozone concentration	10-1000PPhm(directly read and control)
Ozone concentration difference	≤10%
Test chamber temperature	RT+10℃～60℃
Temperature uniformity	±2℃
Temperature fluctuations degree	≤±0.5℃
Sample swiveling speed	(20-25)mm/s
gas velocity of test chamber	8-16mm/s
Dynamic clamp	6 sets of chuck(optional)
Exterior material	SUS202# stainless steel/ cold rolled sheet with plastic spray		SUS202#stainless steel/ cold rolled sheet with plastic spray
Interior material	SUS202#stainless steel		SUS202#stainless steel
Exterior dimension	D1000 X W1300 X H1700Mm		D1200 X W1500 X H1850Mm
controller	Independent R&D PLC touch screen controller		Independent R&D PLC touch screen controller
Power	1.5KW(according to load requirements)		2KW(according to load requirements)
nominal voltage	220V 50HZ / 380V 50HZ
