Product Description

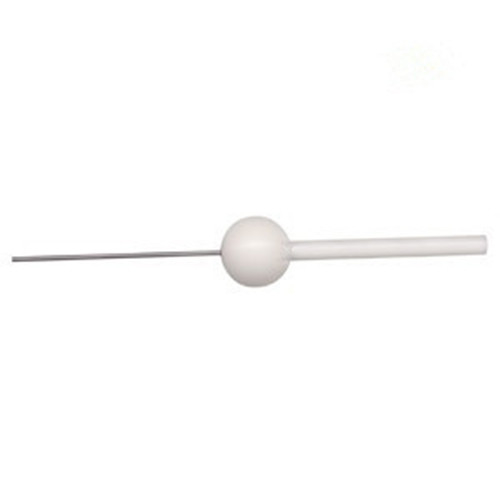

Terminal probe

Reference Standard:

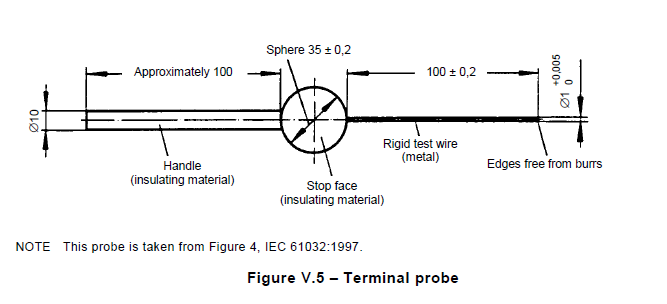

IEC62368-1-Figure V.5

Technical Parameters:

Each terminal is tested with the straight test probe of Figure V.5 with a force of 1 N ± 0,1 N
and with the length limited to 20 mm ± 0,2 mm.

1, Test Probe Length :20mm

2, Test Probe Diameter:1.0 (0, +0.005)mm

3, Dam- sphere Diameter:35mm

4, Handle Diameter:10mm

5, Handle Length :100mm

6, According to IEC61032 figure 4 (the Test probe D)
