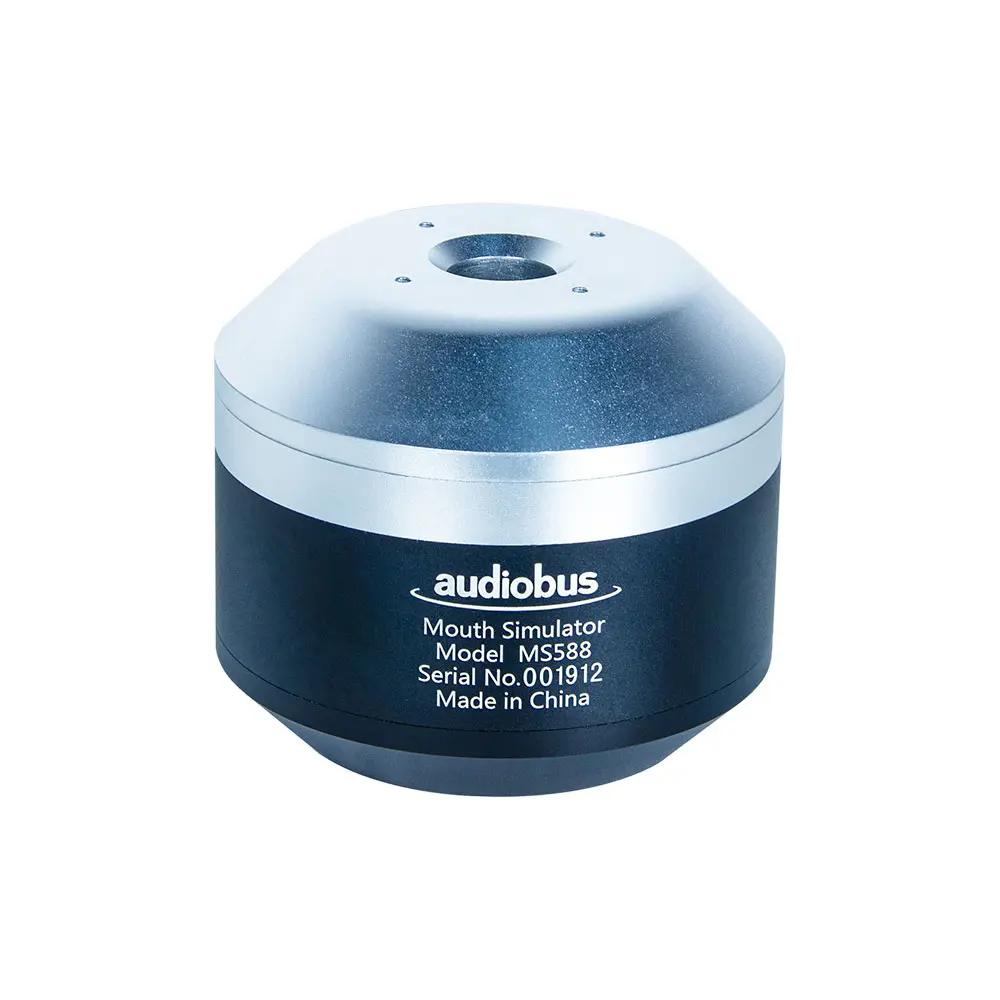

MS588 Artificial Human Mouth Provide A Stable, Wide Frequency Response, Low Distortion Standard Sound Source For Testing

The simulator mouth is a sound source used to accurately simulate the sound of the human mouth. It can be used to measure the frequency response, distortion and other acoustic parameters of transmission and communication products such as mobile phones, telephones, microphones, and microphones on Bluetooth speakers. It can provide a stable, wide frequency response, low distortion standard sound sou ...
  • Product Details
  • Inquiry

The simulator mouth is a sound source used to accurately simulate the sound of the human mouth. It can be used to measure the frequency response, distortion and other acoustic parameters of transmission and communication products such as mobile phones, telephones, microphones, and microphones on Bluetooth speakers. It can provide a stable, wide frequency response, low distortion standard sound source for testing. This product fully complies with the requirements of relevant international standards such as IEEE269, 661 and ITU-TP51.

Performance Parameters

Performance
Frequency RangeOutput Sound Pressure After Compensation: 100 Hz ~ 12kHz
Flatness100Hz~12kHz : ±0.2dB

( @94dBSPL At 2.5mm MRP)

Distortion120Hz – 12 KHz: < 1%

( @ 94 DBSPL , At 2.5mm MRP)

Continuous Output Sound Pressure Level110dBSPL, @ 1V (0.25W), 25mm
Continuous Maximum Power10W
Impedance4 Ohms
Signal Input InterfaceBanana Plug
Lip Ring Diameter42-47mm



Equipment Specifications
Working Temperature / Humidity0~40℃ , ≤80%RH
Dimensions ( Ф XL )105mmX105mm
Weight1.4kg
