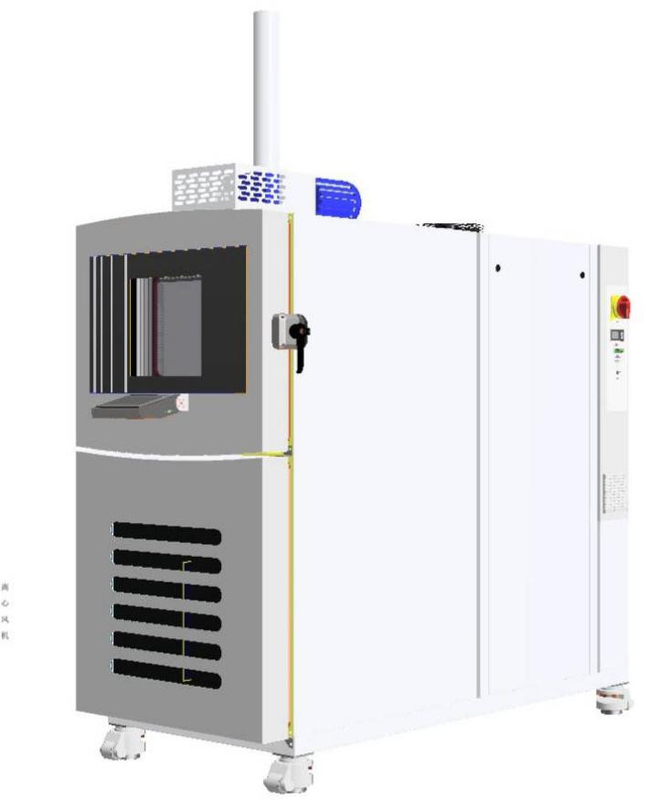

Low Temperature Bath Two-chamber Cold and Thermal Shock Test Chamber -65C – -10C Range Shock Recovery Time ≤5min
- Product Details
- Inquiry
Product Description

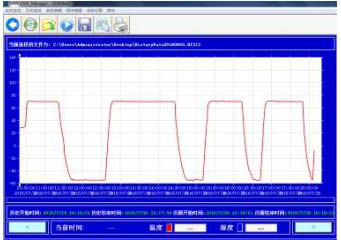

Temperature and humidity curve
Technical Advantages
1. cold balance technology, by controlling the flow of refrigerant to achieve temperature stability (most of the hot and cold balance technology on the market).

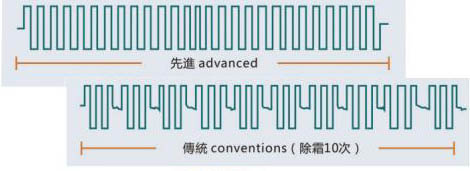

2. No need to defrost in a long time (50 times defrost once)
3. Above the same power to save more than 30% power
Product introduction:
This chamber is used to test the material structure or composite materials, in an instant by the very high temperature and very low temperature continuous environment can endure the degree, so as to test its thermal expansion and contraction in the shortest possible time caused by chemical changes or physical damage. Applicable objects include metals, plastics, rubber, electronics and other materials, which can be used as the basis or reference for product improvement.
Product Features:
Adopt the test frame up and down moving way to quickly convert the test product to the test area, minimize the heat load of cold and heat shock, shorten the temperature recovery time. Touch operation, program setting, fault and other functions are complete.
RS-485 communication interface device, can be connected with computer for LAN monitoring and recording
Specification table:
| Model | QTS2-100 | QTS2-150 | QTS2-225 | |
| Inner box size(W*H*D)mm | 400x500x500 | 500x500x600 | 750x500x600 | |
| Outer box size(W*H*D)mm | Subject to the actual product or offer! | |||
| Impact temperature | High temperature | +60℃~+150℃ | ||
| Low temperature | L (-10℃~-40℃);F(-10℃~-55℃);X(-10℃~-65℃) conditions are optional | |||
| High temperature bath temperature range | +60℃~+200℃ | |||
| Low temperature bath temperature range | A (-55℃~-10℃) ; B (-65℃~-10℃) ; C (-80℃~-10℃) conditions are optional | |||
| Temperature fluctuation degree | ±0.5°C | |||
| Heating up time | RT room temperature~+200℃≤15min | |||
| Cooling time | A(+20℃~ -55℃)≤70min; B(+20℃~ -65℃)≤80min; C(+20℃~ -75℃)≤90min | |||
| Shock recovery time | ≤5min | |||
| Basket movement time | Within 10S | |||
| Inner and outer box material | Steel plate baking paint or 304 stainless steel | |||
| Insulation material | High density polyurethane foam insulation material with high and low temperature resistance | |||
| Cooling method | Air-cooled or water-cooled, using imported brand compressors | |||
| Dampers drive unit | Cylinder | |||
| Safety protection devices | Leakage, short circuit protection, compressor high and low voltage protection, refrigerant high pressure protection, fault alarm system | |||
FAQ
Q :How to provide after sales service?
A:If customers need our engineers on site service, the company only need pay the ticket accommodation to our engineers, service is for free.
If Products still can’t use after our engineers repair, we will produce a new test chamber (same as the old one) to our customers with no charge.
You can contact our local service center in overseas market to get service and product.
Q :Do you have an agent?
A:Currently we have agents in Europe, Asia, North America, South Africa, and can provide sales and technical services.
Q :Can we come to your factory to study and train?
A:Welcome to our factory for study and training, we provide this service free of charge.
Q :Can you send engineers to our company?
A:Yes, sure. We will communicate in advance to facilitate the bringing of tools and components
Q :Can I install and debug calibration on site?
A :Yes, we can send technicians and engineers to the customer site for installation, commissioning and calibration.
Q :What are the modes of transportation?
A :Air, sea, rail, multimodal transport.
Q :What is the packaging?
A :Standard export wooden box packaging, solid and firm.
Q :How do you calibrate the equipment?
A :We have our own calibration and third-party calibration such as ISO17025
Q: Is there a door to door service?
A :Yes, there is door to door service. We will arrange a one-stop service.
Q :What are the payment methods?
A Payment methods are T/T, Paypal, L/C, VISA
Q:How long is the warranty period?
A :Warranty period is 3 years, free service for life
Q :Can you ship quickly?
A :Our delivery period is 3-21 days. Some of the hot-selling equipments are in stock and can be shipped within 1-3 days.
