Laboratory Environmental Test Chamber Water Spray System 2500-3000mm

Spray Pore Diameter:IP5 Spray Hole¢6.5MM ,IP2 Spray Hole¢12.5MMDistance Between Spray Pore And Sample:2500-3000mm
Turntable Diameter And Speed:¢300、 ¢500 3r±1/MinSpray Pressure:80-150KPA
Test Time:0~999h 59minInterior Material:SUS304# Stainless Steel Frosting Sheet
Exterior Material:SUS202# Stainless Steel/ Cold Rolled Sheet With Plastic Spray
Highlight:ozone test chamber

temperature and humidity chamber

  • Product Details
  • Inquiry

Product Description

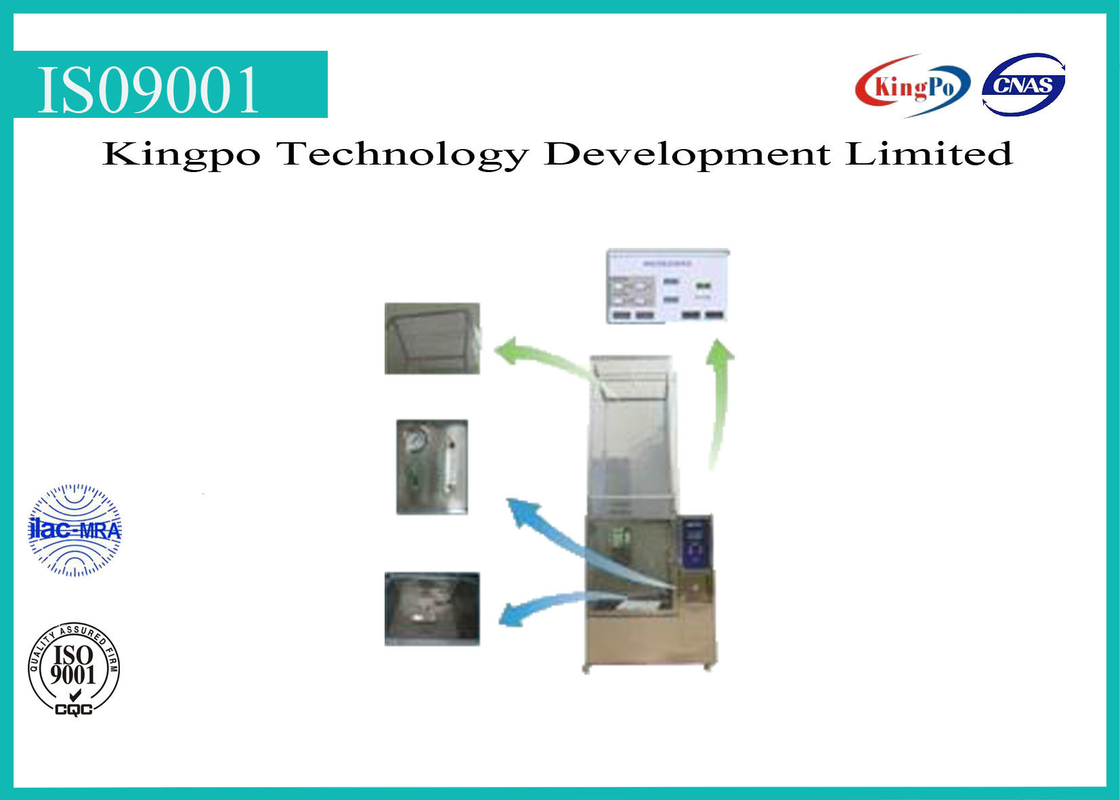

Water Spray Tester-IP56





Function Description

The chamber is applicable to check whether the device and components are ensured good performance when electrical product and its outer case are sealed in a raining environment,which is of scientific design and vividly simulate various environment like torrential rain and fierce water spray.Comprehensive stepping control system and stepping technique make 360°rotation of rainfall sample rack and rotary table to simulate a fiercely raining environment from all aspects.



typeKP-IP56-500KP-IP56-1000
Spray pore diameterIP5 spray hole¢6.5MM ,IP2 spray hole¢12.5MM
Distance between spray pore and sample2500-3000mm
Turntable Diameter and speed¢300, ¢500 3r±1/Min
Spray flowIP5-12.5L/MinIP6-12.5L/Min
Spray pressure80-150KPA80-150KPA
Test time0~999h 59min0~999h 59min
interior dimensionD800 X W800 X H2700MMD1000 X W1000 X H2700MM
Exterior dimensionD1000 X W1300 X H3500mmD1200 X W1500 X H3600mm
Interior materialSUS304# stainless steel frosting sheetSUS304#stainless steel frosting sheet
Exterior materialSUS202# stainless steel/ cold rolled sheet with plastic spraySUS202# stainless steel/ cold rolled sheet with plastic spray
Water source and energypurified/distilled water 300L/day
controllerIndependent R&D PLC touch screen controllerIndependent R&D PLC touch screen controller
spray systemOne IP5 spray nozzle,one IP6 spray nozzle
Spray angleperpendicular to sample
Power and voltage3KW 380V 3Phase
