Product Description

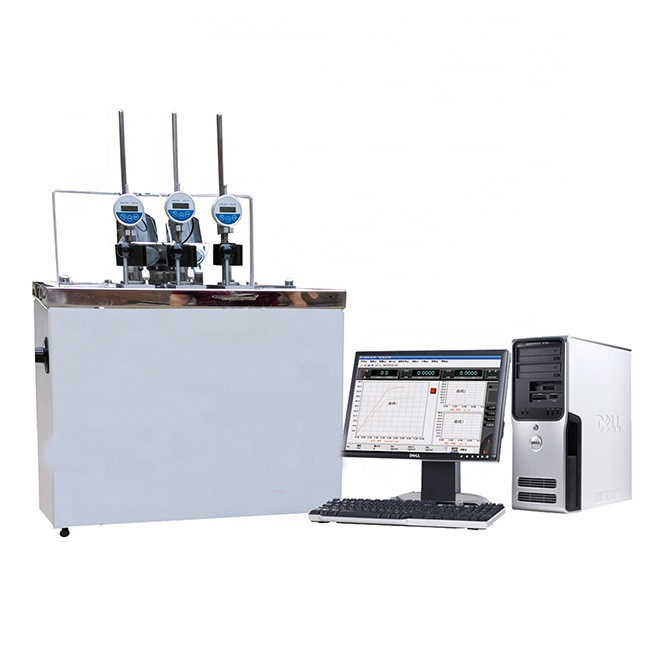

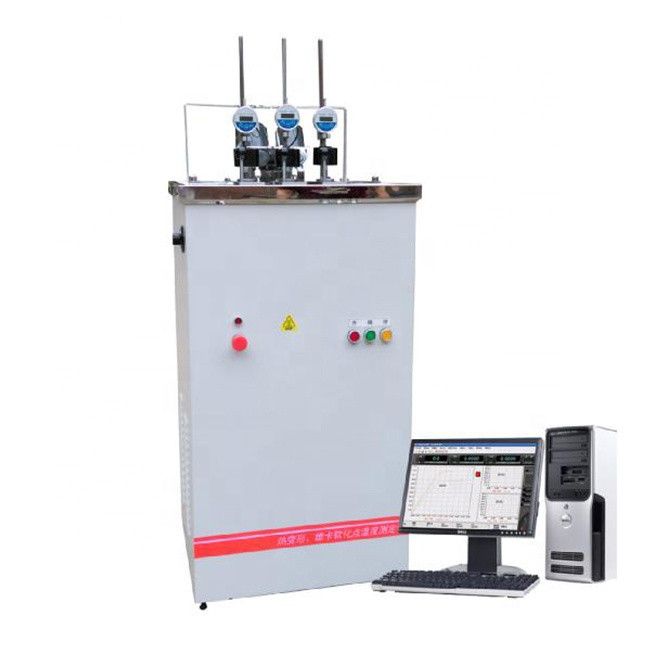

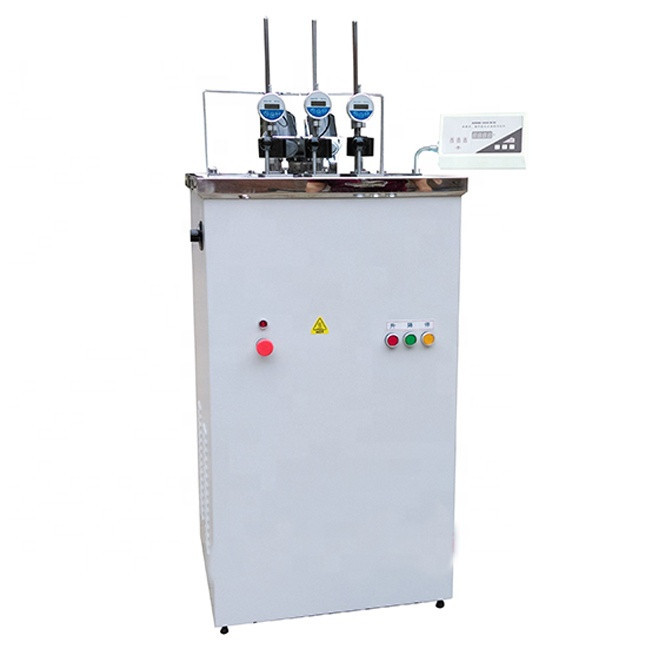

Vicat test -IEC62368 – clause – 5.4.1.10.2

Description:

Vicat softening temperature uses single-chip control, LED digital display of temperature and deformation on the operation panel to set test parameters and test results can be read. During the test, the test temperature monitoring can be implemented, test the deformation; This series of simple structure, easy to operate, after the end of the experiment results are automatically stored. Comply with IEC62368-1,IS075 (E), IS0306 (E), GB/T8802, GB/T1633, GB/T1634 and other standards.

Technical Parameter:

1. Test apparatus as per IEC 62368-1

2. Temperature control range- Room temperature- 300ºC

3 .Temperature rise speed:120±ºC/h 50±1ºC/h

4. Temperature accuracy – ±0.5ºC

5. Temperature resolution – 0.1ºC

6. Range of load- 0.75 N-50 N

7. Power supply:220V 50HZ 4KW

8. Sample holder:Three

9.Weight:1kg*3 5kg*3 200g*3 50g*3 10g*3 5g*3 2g*3 1g*3 20g*6

Calibrate and issue certificate

Certificates: calibrate certificate issued by internationally recognized laboratory with ilac.MRA mark.
