ISO 80601-2-70 Figure 21.101 Standard Resistance Medical Test Equipment

Standard:	ISO 80601-2-70 Figure 21.101	Internal Diameter:	(4 ± 0,1) Mm
Length:	(40 ± 1) Mm	Angle:	(45 ± 1) °
Highlight:	ISO 80601-2-70 Medical Test Equipment Figure 21.101 Medical Test Equipment Standard Resistance Medical Test Equipment

Standard:

ISO 80601-2-70 Figure 21.101

Internal Diameter:

(4 ± 0,1) Mm

Length:

(40 ± 1) Mm

Angle:

(45 ± 1) °

Highlight:

ISO 80601-2-70 Medical Test Equipment

Figure 21.101 Medical Test Equipment

Standard Resistance Medical Test Equipment

Send Inquiry Chat Now

Product Details
Inquiry

Product Description

ISO 80601-2-70 figure 21.101 standard resistance

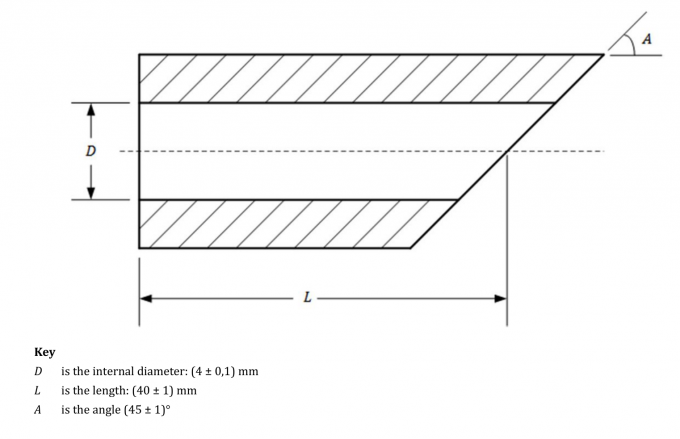

ISO 80601-2-70 Figure 21.101 Standard Resistance Medical Test Equipment 0

Key
D is the internal diameter: (4 ± 0,1) mm
L is the length: (40 ± 1) mm
A is the angle (45 ± 1) °
Break all edges with 0,15 mm to 0,20 mm radius or 45° chamfer. Drawing is not to scale.

Connector: 15/22mm standard connector can be made according to customer requirements
