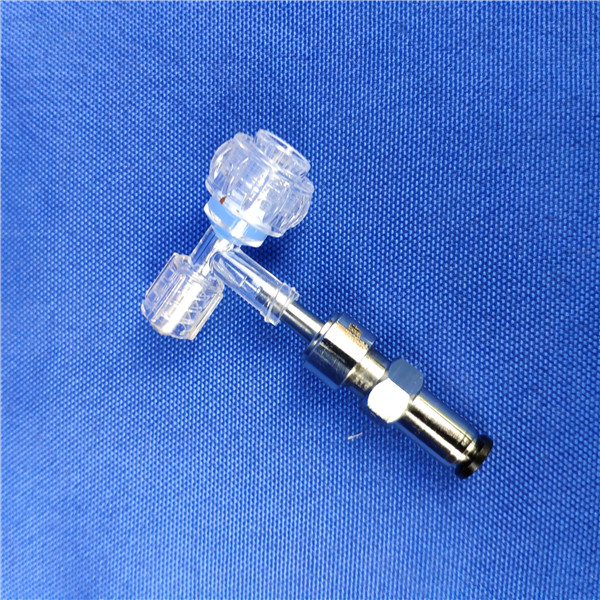

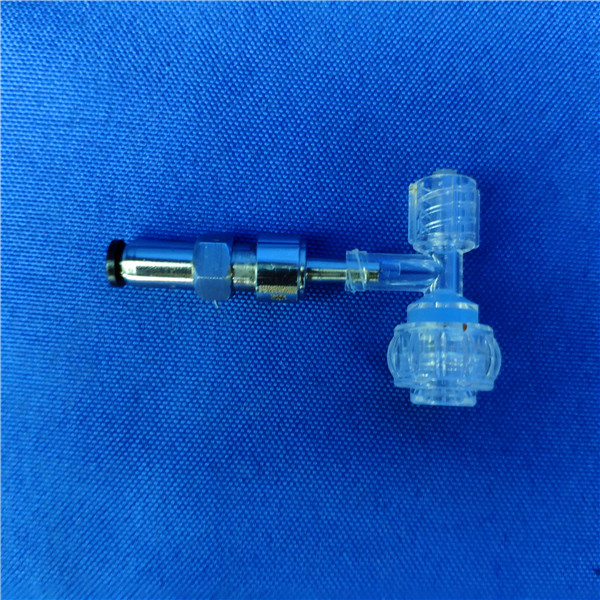

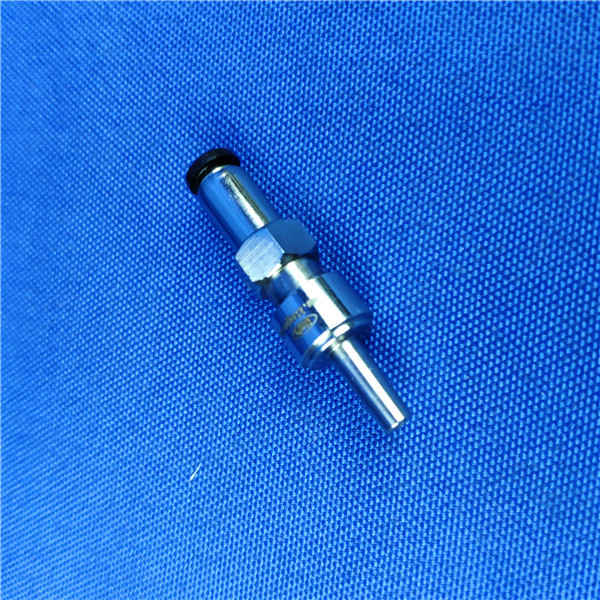

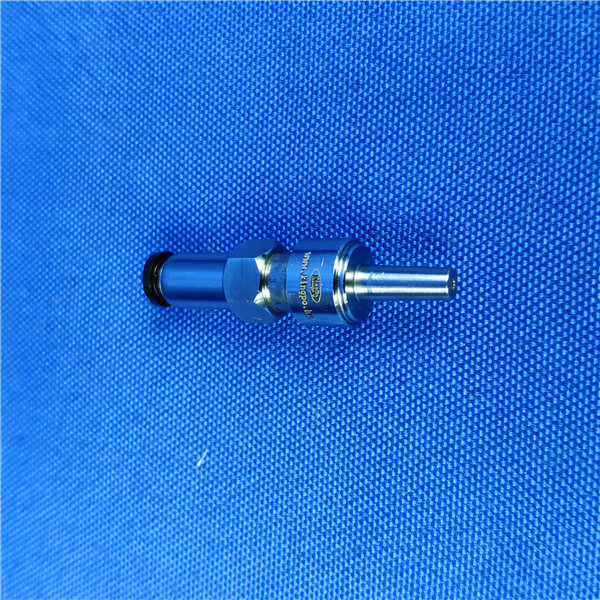

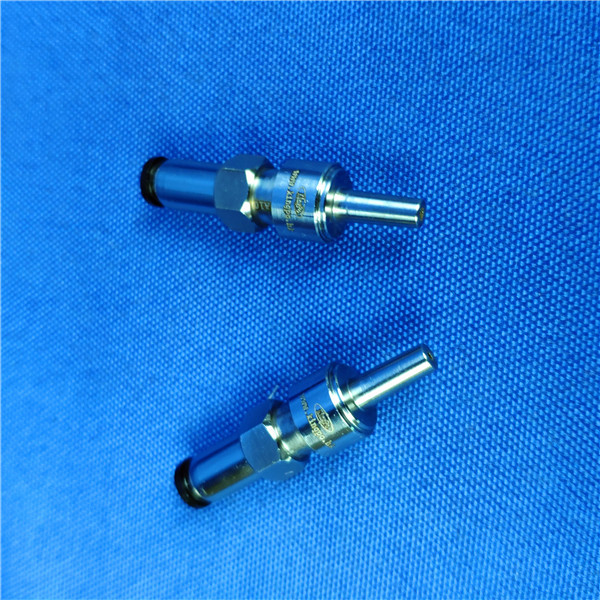

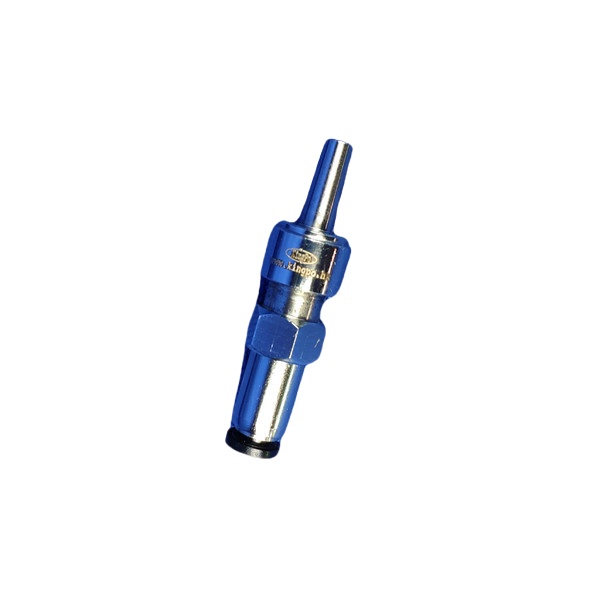

ISO 80369-7 Figure C.2 Male Reference Luer Slip Connector For Testing Female Luer Connectors Leakage

Brand Name:KingpoMaterial:Hardness Steel
Standard:ISO 80369-7Hardness:HRC58-62
Warranty:1 YearProduct Name:LUER GAUGE
Highlight:Figure C.2 Luer Slip Connector

ISO 80369-7 Luer Slip Connector

  • Product Details
  • Inquiry

Product Description

ISO 80369-7:2017 Small-bore connectors for liquids and gases in healthcare applications – Part 7: Connectors for intravascular or hypodermic applications

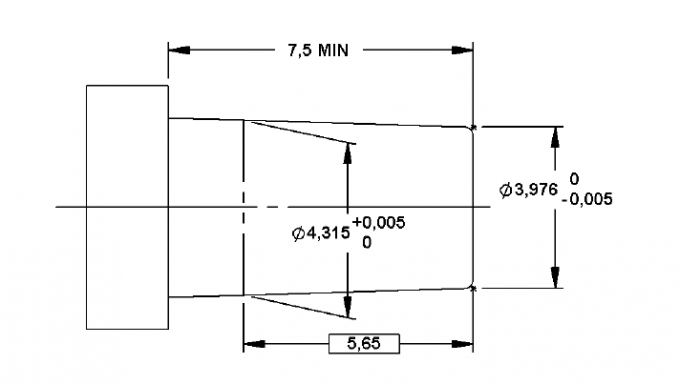

NOTE 1 Cone taper (0,06:1).
NOTE 2 R may be 0,5 mm (maximum) × 45° chamfer. The minimum length of the male taper of 10,5 mm is required for testing non-interconnectable characteristics. A minimum length of the male taper of 7,5 mm may be used for the performance tests of Clause 6.

ISO 80369-7 Figure C.2 Male Reference Luer Slip Connector For Testing Female Luer Connectors Leakage 0



ISO 80369-7-Figure C.2 — Male reference luer slip connector for testing female luer connectors for leakage, separation from axial load, stress cracking and non-interconnectable characteristics

ISO 80369-7 Figure C.2 Male Reference Luer Slip Connector For Testing Female Luer Connectors Leakage 1



ISO 80369-7 Figure C.2 Male Reference Luer Slip Connector For Testing Female Luer Connectors Leakage 2
