Product Description

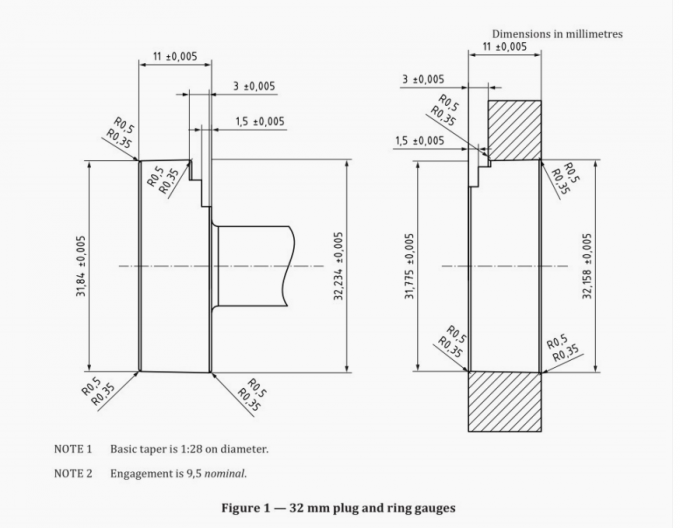

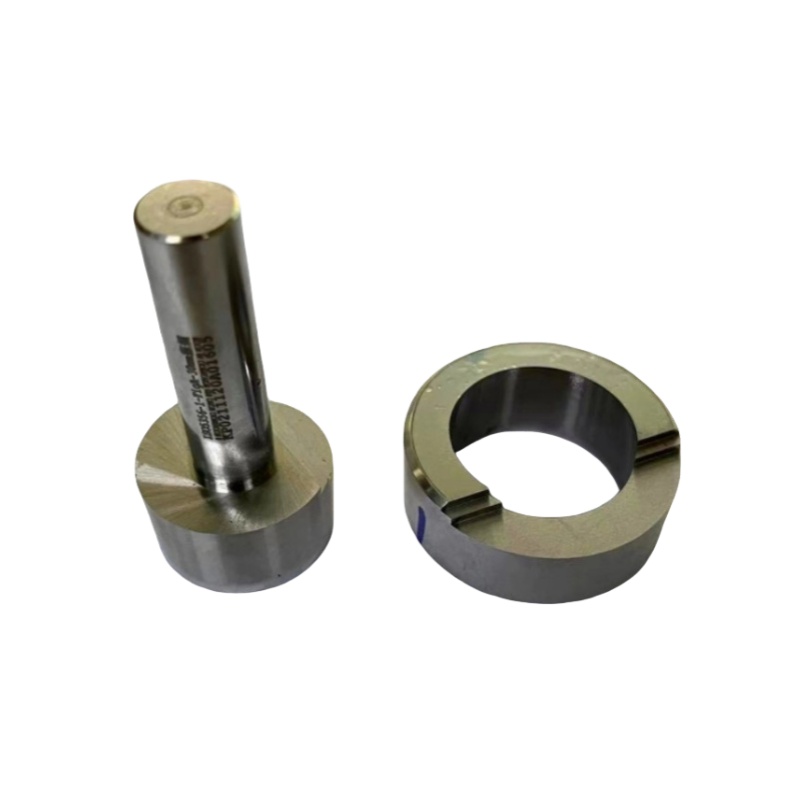

IS0 10651-4 Figure 1 32 mm plug and ring gauges
ISO 10651-4 2023.pdf specifies dimensional and gauging requirements for cones and sockets intended for connecting anaesthetic and respiratory equipment, e.g. in breathing systems, anaesthetic gas scavenging systems, and vaporizers. The cones and sockets are therefore not regarded as devices in their own right.
It gives requirements for the following cones and sockets: 8,5 mm and 11,5 mm sizes intended for use in neonatal and paediatric breathing systems; 15 mm and 22 mm sizes intended for general use in breathing systems; 22 mm latching sockets (including performance requirements); 23 mm size intended for use with vaporizers, but not for use in breathing systems; 30 mm size intended for the connection of a breathing system to an anaesthetic gas scavenging system.
It does not specify the medical devices and accessories on which these cones and sockets are to be provided.

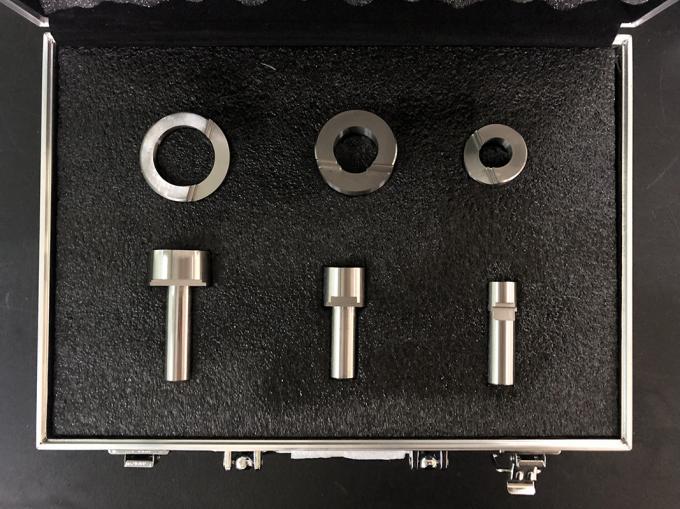

Gauges in picture:
| Items |
| plug gauge for 15 mm conical connectors. |
| ring gauge for 15 mm conical connectors. |
| plug gauge for 22 mm conical connectors. |
| ring gauge for 22 mm conical connectors. |
| plug gauge for 30 mm conical connectors. |
| ring gauge for 30 mm conical connectors. |
