Product Description

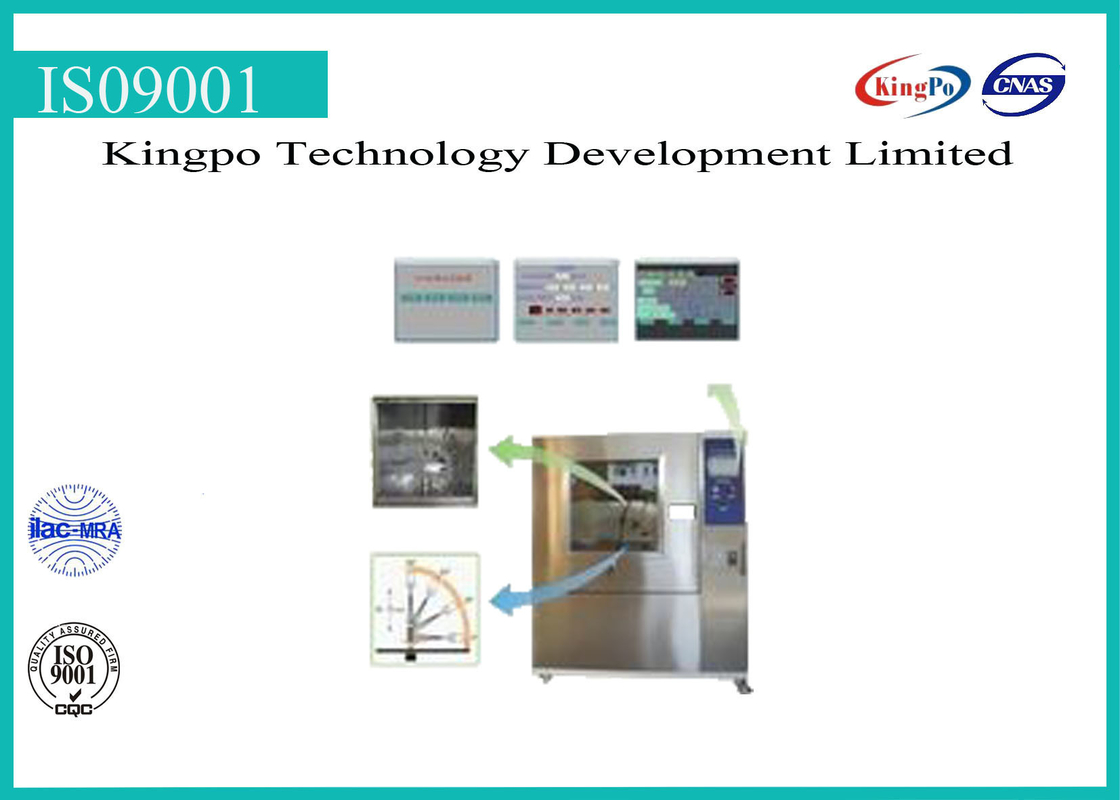

IPX9K High Temperature-Voltage Ejection Tester
Function Description
The chamber is applicable to check whether the device and components are ensured good performance when electrical product and its outer case are sealed in a raining environment,which is of scientific design and vividly simulate various environment like torrential rain and fierce water spray.Comprehensive stepping control system and stepping technique make 360°rotation of rainfall sample rack and rotary table to simulate a fiercely raining environment from all aspects.
Technical Parameter
type | KP-IPX9K-500 | KP-IPX9K-1000 |
Interior dimension | 800 x 800 x 800Mm | 1000 x 1000 x 1000Mm |
Exterior dimension | 1300 x 1000 x 1700Mm | 1500 x 1200 x 1900Mm |
Spray water temperature | 80℃±5 | 80℃±5 |
Spray water pressure | 80~100bar | 80~100bar |
Spray distance | 10~15cm | 10~15cm |
Spray flow | 14~16L/min | 14~16L/min |
Spray angle and time | 0°,30°,60°,90°,30 seconds’ spray at each angle | |
connecting pipe | High voltage stainless steel hydraulic tube | |
electromagnetic valve | Italian electromagnetic valve with high temp. and high voltage | |
Water pump | Italian plunger pump with high temp. and high voltage | |
Heating pipe | 6Kw German heating wire | |
Test time | 0-99h 59min | |
controller | Schneider touch screen and Schneider PLC | |
Spray system | 4 spray nozzle;equip with a spray nozzle at 30℃ | |
Power supply | 380V 3 Phase 7KW |
