Product Description

HD-6159E Apple Charging Line Rotating Test Instrument

Product Description:

HD-6159E instrument is suitable for testing the service life of wire and plane in a certain taper rotation, and simulating the service life of the tested product under certain load and load conditions. The instrument has a low voltage and high current load. External transients can be used to test the transient phenomenon of the product.
Technical parameters:
Control mode: servo motor PLC touch screen.
Group 3 fixture position: each group fixture independent servo control.
Cone experimental angle :0-3600 degrees (speed 5-60 r/m arbitrary setting) arbitrary setting.
Speed setting :2~60 r/m arbitrary setting (test angle below 360 degrees to meet 3.4 conditions).
Test times :0~999999(each station is preset independently).

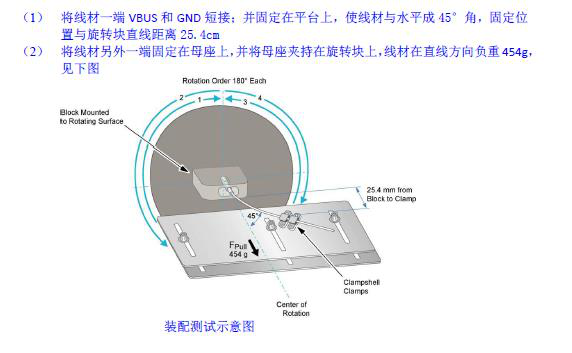

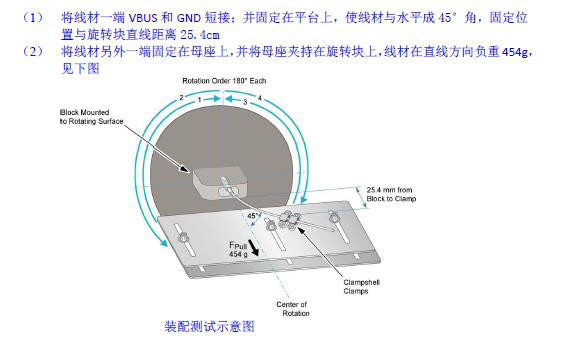

Test angle adjustment :45 or natural vertical (horizontal) test two adjustable (manual conversion by mechanical structure)
The four stations can be started at the same time or separately.
The independent output adjustable voltage 5-20 V and load current 0.5-20 A are set.
Test mode: load, no load, instant break arbitrary setting (each station set independently).
An external transient signal stop function is provided NM-11B this machine. (Transients provided by customers)
Power: AC 220V±10,50 Hz,60A.
The ambient temperature is 0~40℃.
Environmental humidity :≤85.
No violent shaking, shock, vibration, non corrosive air place.
