IP5X IP6X Environmental Test Chamber New Energy Vehicle Dust Testing Equipment

Testing Sample:New Energy VehicleMeet Standards:IEC-60529, ISO-20653, GB2423, DIN-40050, GB4706, GB4208
Heating Power:12KTwo Kinds Of Control:-90.00 ° C - 200.00 ° C, (-90.00 ° C - -300.00 ° C, Optional)
Highlight:ozone test chamber

climatic test chamber

IP6X Environmental Test Chamber

  • Product Details
  • Inquiry

Product Description

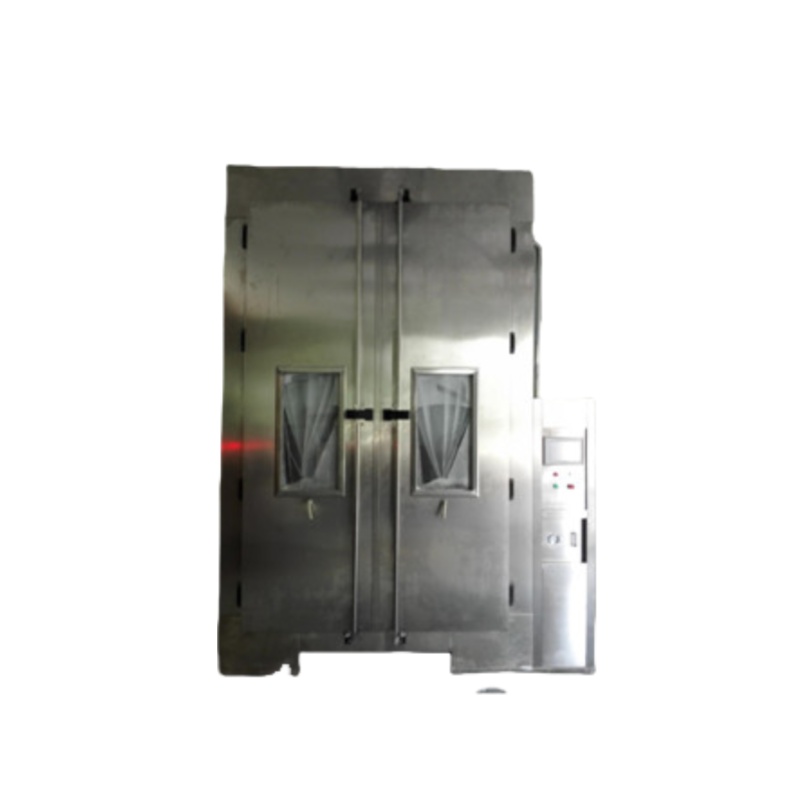

IP5X IP6X Dust Test New Energy Vehicle Dust Test Chamber



Application

The UPS energy storage battery pack is a battery module that is connected by a plurality of single cells, and the battery is protected by a protective plate. The new energy automobile sand dust test chamber is a fine sand or dust that can simulate the real environment in advance to the industrial machinery. Or the destructive test of industrial products, in order to prevent the direct damage caused by the related machinery or products in the actual application, resulting in direct major economic losses!

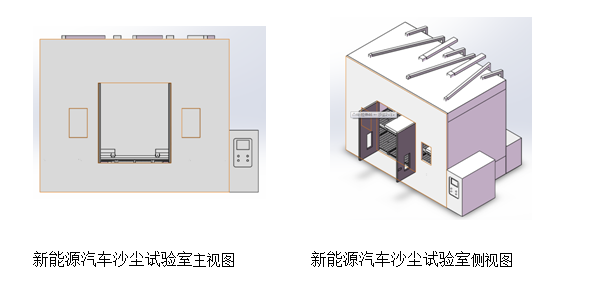

IP5X IP6X Environmental Test Chamber New Energy Vehicle Dust Testing Equipment 0

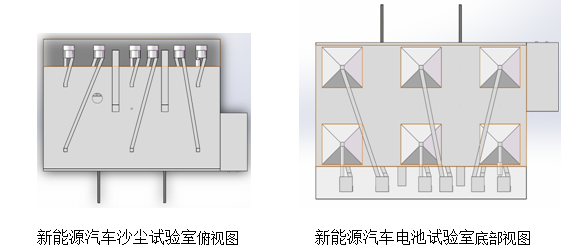

IP5X IP6X Environmental Test Chamber New Energy Vehicle Dust Testing Equipment 1

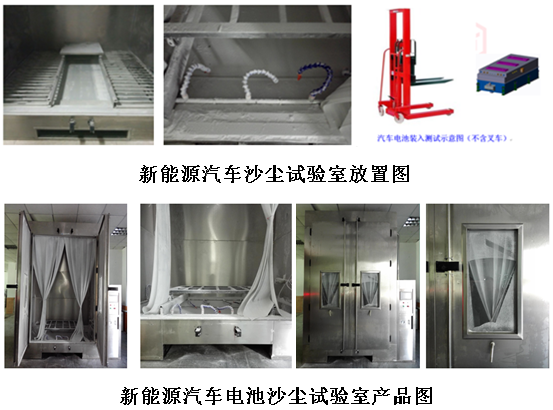

IP5X IP6X Environmental Test Chamber New Energy Vehicle Dust Testing Equipment 2

At present, it is mainly used in many electric vehicle battery packs such as pure electric vehicles, which adopts 3265-5Ah type batteries, and requires battery packs to be waterproof and dustproof. In particular, the batteries of new energy vehicles are more affected by sand and dust. New energy vehicle dustproof room, walk-in sand dust test room, dust detection test room, IP6X test room can meet IEC-60529, ISO-20653, GB2423, DIN-40050, GB4706, GB4208, medium household appliances, low-voltage electrical appliances , automotive and motorcycle parts enclosure protection level test requirements, applicable to electrical products for the second feature number “IP5X, IP6X” dust test.

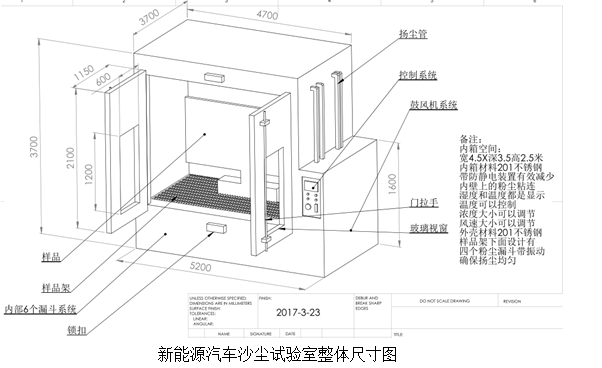

IP5X IP6X Environmental Test Chamber New Energy Vehicle Dust Testing Equipment 3



System NameSystem Function DescriptionComponent NameAccessories Function DescriptionPicture
Heating systemDust preheatingStainless steel mica sheet heating sleevePower: 12KIP5X IP6X Environmental Test Chamber New Energy Vehicle Dust Testing Equipment 4
Control execution systemGuarantee test is standard and effectiveTouch programming LCD controllerInput, display: control temperature, time, program: flexible and efficient control system to ensure the ultra-wide temperature range and precise control, but also to provide users with stable performance, flexible control, easy to learn and use the operating experience. Two kinds of control: program / fixed value

Temperature measurement range: -90.00 ° C – 200.00 ° C, (-90.00 ° C – -300.00 ° C, optional)

Error ± 0.2 ° C;

IP5X IP6X Environmental Test Chamber New Energy Vehicle Dust Testing Equipment 5
circuit control systemHigh-quality, scientifically equipped circuit control system ensures high-quality features such as reliable, high-efficiency and energy-saving.AC contactor: SchneiderIP5X IP6X Environmental Test Chamber New Energy Vehicle Dust Testing Equipment 6
Main power switch: Chint

Instrument main power on/off control

IP5X IP6X Environmental Test Chamber New Energy Vehicle Dust Testing Equipment 7
Push button switch: Schneider

Controller, lighting power control

IP5X IP6X Environmental Test Chamber New Energy Vehicle Dust Testing Equipment 8
Wire and cable: Jin LongyuIP5X IP6X Environmental Test Chamber New Energy Vehicle Dust Testing Equipment 9
Terminal block: Japan IDEC

Wiring port

IP5X IP6X Environmental Test Chamber New Energy Vehicle Dust Testing Equipment 10
Number tubeIP5X IP6X Environmental Test Chamber New Energy Vehicle Dust Testing Equipment 11
safety protectionPerfect safety protection device to ensure safe and reliable operation of the product;Leakage protection
Overload fuse protection
Fan overheat protection
Frame shapingBeautiful and durable interior and exterior chamber materials and careful design and matching are also guarantees of function realization.chamberThe thickness of SUS304 stainless steel is guaranteed to be free from deformation and leakage, and it is also resistant to corrosion and easy to clean.
Standard configuration

(accessory)

The necessary accessory configurations make the instrument function more perfect, giving customers a more intimate experience.Vacuum pumping (optional)Vacuum pump suction flow: 0~6L/min, 0~2kpa; vacuum gauge, air filter, centrifugal blower, etc. (optional)
Power socket in the chamber1 pcs, dust-proof special socket;
Test lead holeφ100 and φ50 each one, with inner and outer sealing cover
Vibration deviceEccentric motor
control panelThe friendly and simple control panel allows the customer to have no strangeness to the operation of the instrument, and better reflects the characteristics of the instrument that is easy to learn and use.ControllerInstalled in the upper right corner of the machine, according to the ergonomic height setting, the test conditions can be input here, and the interface of the controller is displayed in real time: setting the temperature, time, number of cycles, curve, etc., and also displaying the actual detected temperature in real time, time, curve, etc.
Power button switchRed: Schneider has a self-locking switch button for the instrument to run the power on and off, red light.
illuminationGreen light: Schneider has a self-locking switch button, which is used to turn on and off the lighting power supply in the instrument test area
