IP34 Automatic Environmental Test Chamber 80-150KPA Spray Pressure

Spray Bore Diameter:¢0.4MMBlowhole Spacing:50mm
Spray Flow:0.07L/MinSpray Pressure:80-150KPA
Pendulum Angle:360°±20°Turntable Speed:3r±1Min
Highlight:ozone test chamber

climatic test chamber

  • Product Details
  • Inquiry

Product Description

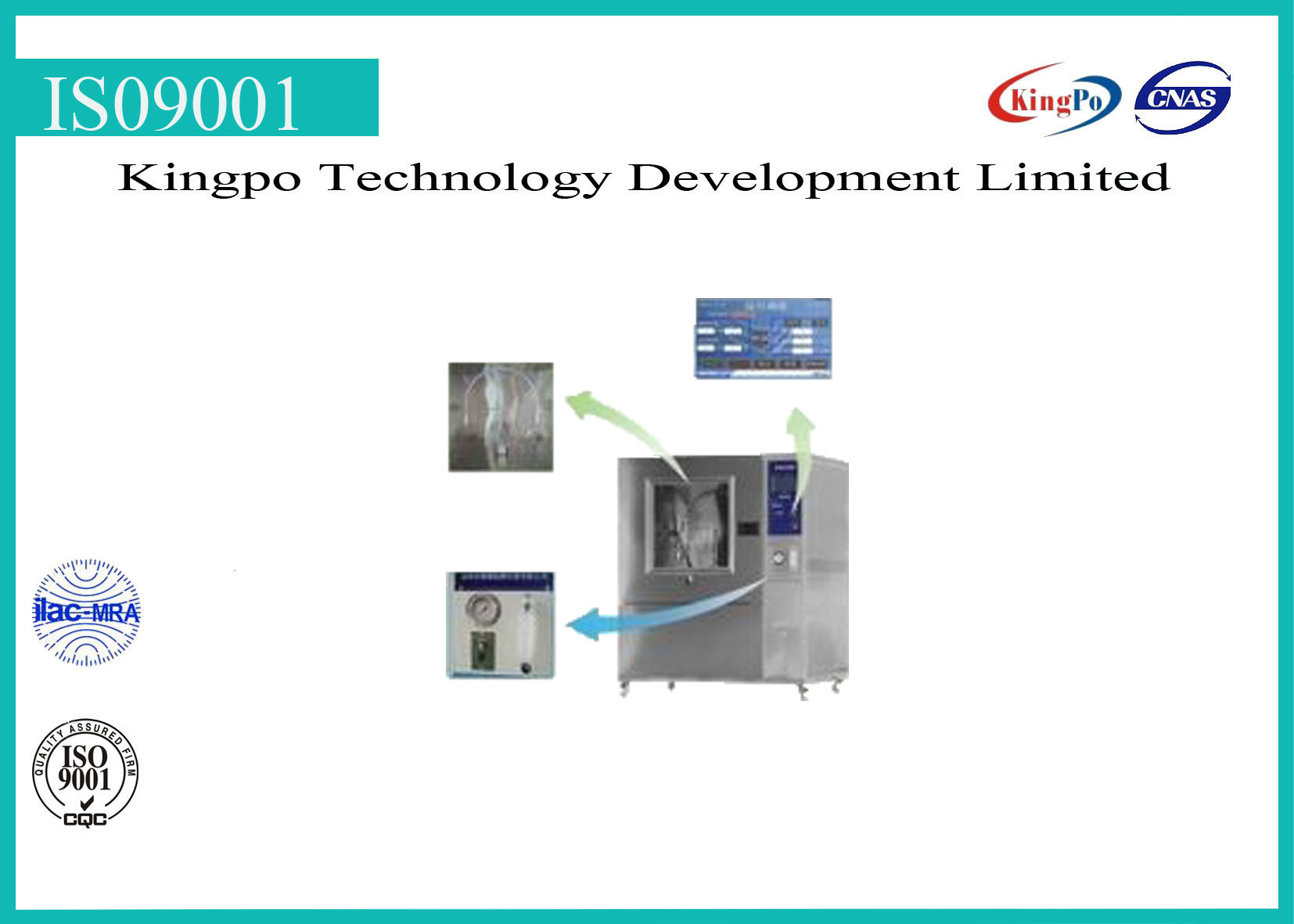

Water Spray Tester-IP34





Function Description

The chamber is applicable to check whether the device and components are ensured good performance when electrical product and its outer case are sealed in a raining environment,which is of scientific design and vividly simulate various environment like water spraying and splashing.Comprehensive stepping control system and stepping technique make swivel angle of rainfall sample rack,sway angle of spray pendulum and its frequency can be automatically adjusted.



typeKP-LY225KP-LY1000
Spray bore diameter¢0.4MM¢0.4MM
Blowhole spacing50mm50mm
Radius of spray ringR200mmR400mm
Spray flow0.07L/Min0.07L/Min
Spray pressure80-150KPA80-150KPA
Test time0~999h 59min0~999h 59min
Dimension of working cabinetD600 X W600 X H600MMD1000 X W1000 X H1000MM
Exterior dimensionD1100 X W800 X H1500mmD1100 X W1500 X H1700mm
Interior materialSUS204#stainless frosting steel sheetSUS204#stainless frosting steel sheet
Exterior materialSUS202#stainless steel/ cold rolled sheet with plastic spraySUS202#stainless steel/ cold rolled sheet with plastic spray
Pendulum speedIP315 times/min;IP4times/min
Water source and energypurified/distilled water 8L/day
controllerIndependent R&D PLC touch screen controllerIndependent R&D PLC touch screen controller
Spray system12 spray nozzles25 spray nozzles
Pendulum angle360°±20°About 360°±20°
Turntable diameter¢200¢400
Turntable speed3r±1Min3r±1Min
Distance between spray nozzle and sample200Mm200Mm
