Product Description
IEC60529 Ingress Protection Testing Equipment . List Of Equipment In Compliance With IEC 60529
IEC 60529 Test Equipment . List Of Equipment In Compliance With IEC 60529
| No. | Items | Description |
| 1 | IEC 60529 Test Sphere 50mm, IP1X | IEC 60529 IP1X Test Sphere 50mm This probe is intended to verify the protection of persons against access to hazardous parts. It is also used to verify the protection against access with the back of the hand. |
| 2 | IEC 60529 jointed test finger 12mm, IP2X | IEC 60529 IP2X jointed test finger Diameter 12mm, length 80mm This probe is intended to verify the basic protection against access to hazardous parts. It is also used to verify the protection against access with a finger. |
| 3 | IEC 60529 Test Rod 2.5mm, IP3X | IEC 60529 IP3X Test Rod Diameter 2.5mm, length 100mm This rod is intended to verify the protection of persons against access to hazardous parts. It is also used to verify protection against access with a tool. |
| 4 | IEC 60529 Test Wire 1.0mm, IP4X | IEC 60529 IP4X Test Wire Diameter 1.0mm, length 100mm This wire is intended to verify the rotection of persons against access to hazardous parts. It is also used to verify the protection against access with a wire. |
| 5 | IP5X IP6X Dust Test Chamber | Internal dimension: 1000 W X 1000 H X 1000 L mm nominal wire diameter: 50um nominal width of gap between wires: 75um Talcum powder dosage: 2Kg/m³ Vacuum Pump : Up to 50kPa Heating: ambient to 60 centigrade Door: tempered glass door Power: AC 220V 50Hz 3.0KW |

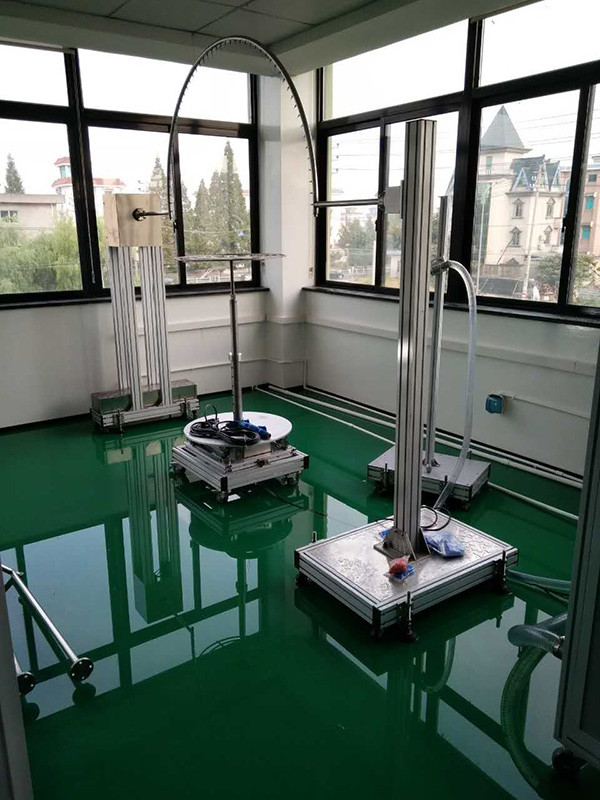

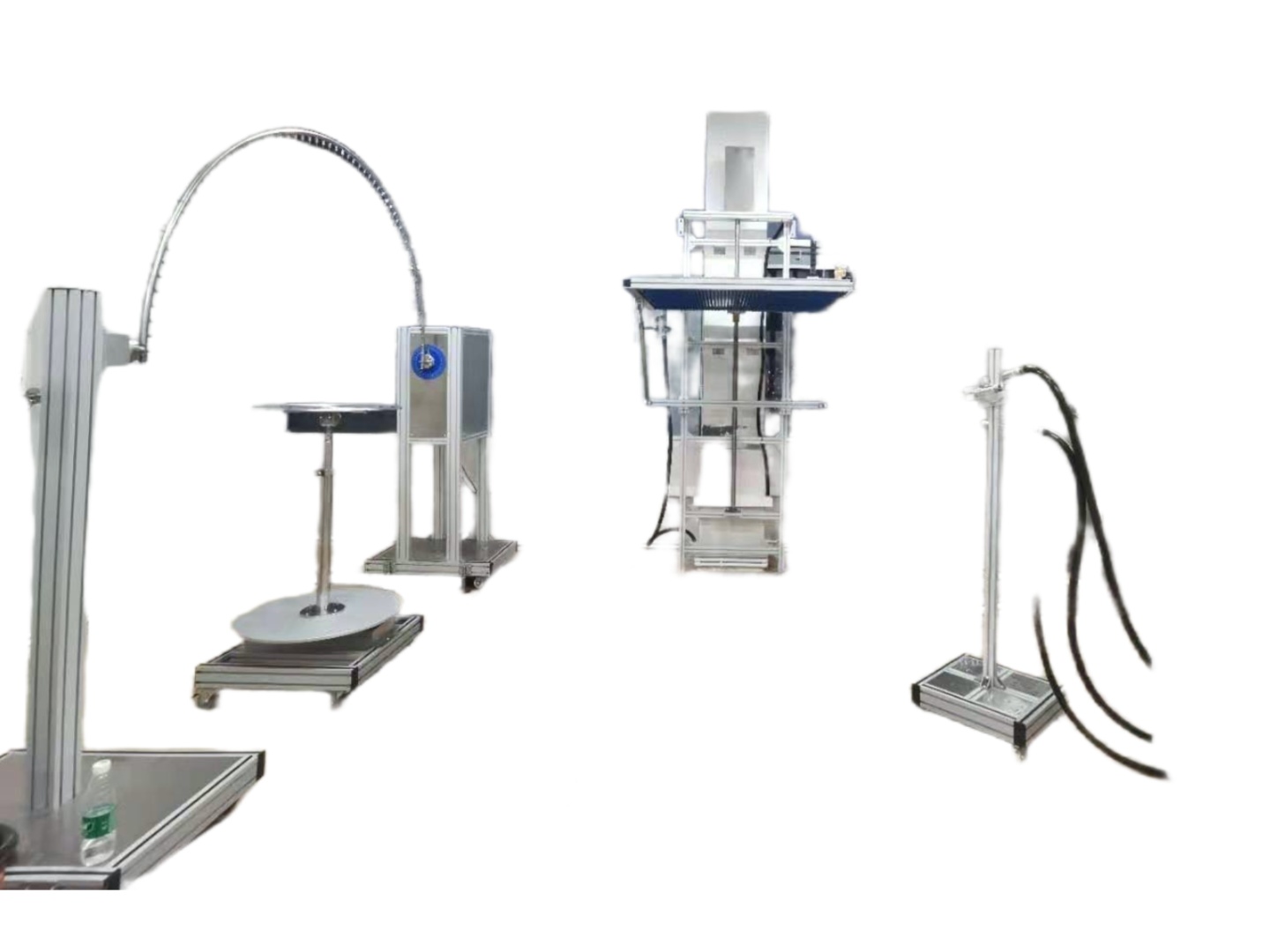

| 6 | IEC 60529 IPX1/IPX2 | IPX1, shell in the speed of 1r/min turntable, turntable axis and the specimen axis distance eccentricity about 100mm, water flow 1mm/min, duration of 10min. IPX2, shell four fixed positions in the tilted 15°, table does not turn, water flow 3mm/min, each inclined position for 2.5min. Drip area: 800*800mm Diameter of turntable: Φ 800mm plain perforated base with more perforations without boundaries Power supply: 220VAC 50Hz |
| 7 | IEC 60529 IPX3/IPX4 | IPx3: 60°on the either side of the vertical IPx4: 180°on the either side of the vertical The support (turnable) for the enclosure is perforated, not turn. Flow rate: 0.07 l/min per hole Tube radius: 200/400/600/800/1000/1200/1400/1600mm Power supply: 220VAC 50Hz |
| 8 | IEC 60529 IPX3/IPX4 | 121 holes of 0.5mm; 1 hole at the center 1 inner circles of 12 holes at 30°pitch 4 outer circles of 24 holes at 15°pitch Moving shield – Aluminium Spray nozzle – Brass Provide pipe and hose clamps |
| 9 | IEC 60529 IPX5/IPX6 | 1, the IPX5 nozzle: The nozzle diameter: 6.3 mm; Water flow rate: 12.5 L/min; 2, the IPX6 nozzle: The nozzle diameter: 12.5 mm; Water flow rate: 100 L/min; The center part of the main flow from the nozzle: 2.5m diameter of about 120 mm round; Provide pipe and hose clamps. |

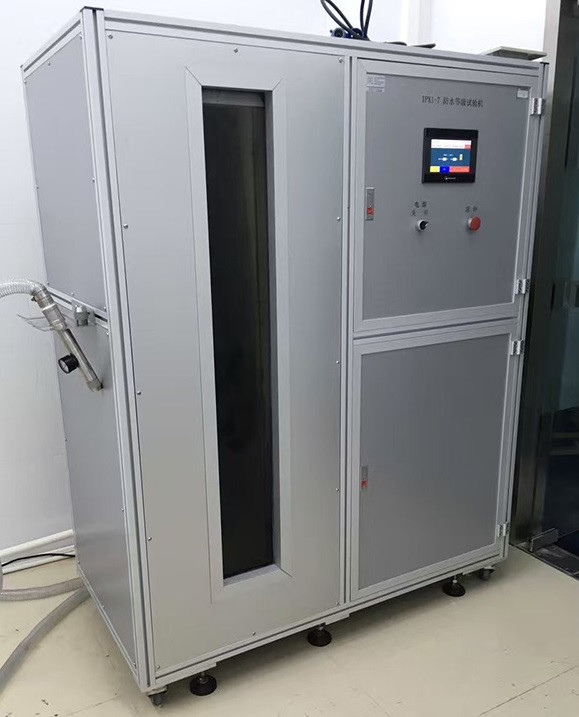

| 10 | IEC 60529 IPX7 and IPX1-8 water supply system | Volume: 100L Big flow pump: 0-7cbm/h Small flow pump: 0-3cbm/h Flow control: digital flow meter IPX6 flow control: manual Water supply: 4 ways, stainless steel pipe Filter: ceramic filter Power supply: 220VAC 50Hz Pressure control: electronic gauge(IPX4 spray nozzle) |

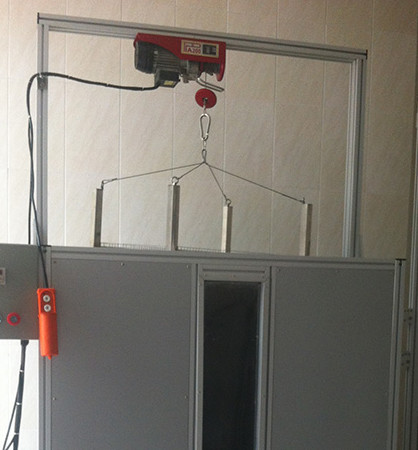

| 11 | IEC 60529 IPX8 | Tank with pressure gauge to simulate 0-30 meter Height Dimension:Φ600*1000mm |
