IEC62368 Pulse Test Generator (Figure D.1)

Highlight:	IEC62368 Pulse Test Generator Figure D.1 Pulse Test Generator Pulse Test Generator Equipment

Highlight:

IEC62368 Pulse Test Generator

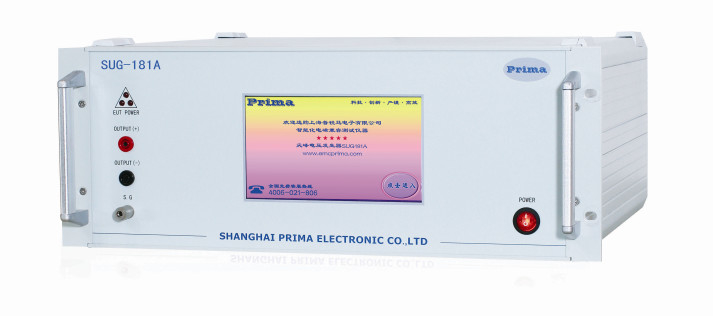

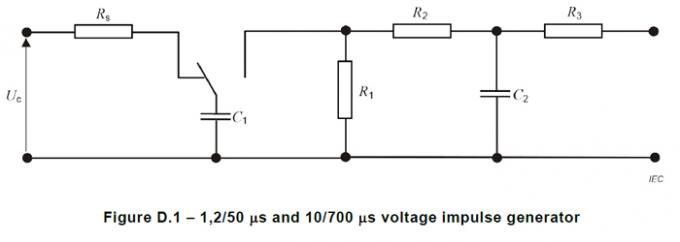

Figure D.1 Pulse Test Generator

Pulse Test Generator Equipment

Product Description

1. Product Name: pulse test generator

2. Product model:KP-PRM65

3. Standard basis:IEC62368-1:2018 Appendix D and figure D.1

4. Product introduction:

The pulse test generator is manufactured according to the requirements of Appendix D and figure D.1 of iec62368-1.

5. Standard requirements

IEC62368 Pulse Test Generator (Figure D.1) 0

Circuit type	Test pulse	C1	C2	R1	R2	R3
1	10/700us	20uF	0.2uF	50Ω	15Ω	25Ω
2	1.2/50us	1uF	30nF	76Ω	13Ω	25Ω
remarks	If the same results can be obtained, an alternative test generator can be used. Note: circuit 1 and circuit 2 are based on ITU-T Recommendation K.44
