Product Description

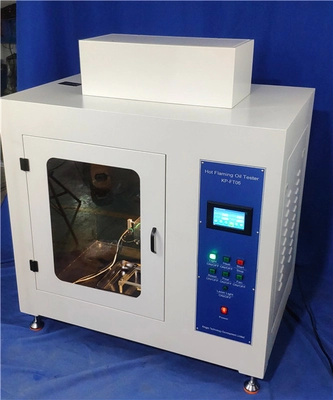

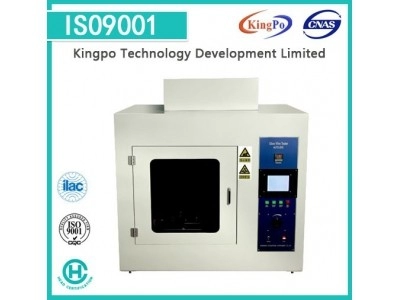

Needle Flame Tester, IEC60695-11-5 Flammability Testing Equipment
Introduction
Needle Flame Tester is a simulation experiment project using non-flame ignition source in accordance to standard requirements of IEC60695 -11-5,GB/T5169.5-2008,GB4706.1-2005 ,etc.
Needle Flame Tester uses Needle-shaped burner in required size (Φ0.9mm ) ;transport butane gas into it ,ignite the specimen at a regular time and angle of 45° ,to check whether the specimen ignite ,lasting ignition time and combustion length to test the ignition fatalness of devices inside because of flammule caused by breakdown.
Needle Flame Tester is suitable for research,production and quality testing department of electrical devices and component parts like lighting equipment,low voltage apparatus,household appliance,machine tool electric appliance,motor-driven machine,electric tool,electronic instrument,electrical connectors and accessories;also suitable for insulating material,engineering plastic and other solid combustible material industry.
Characteristics:
With predetermined size (Φ 0.9 mm) needle burner, in 45°angle burning product,measure the fire risk by product light-off or hold burning time.
Technical parameters:
| Needle burner | inner hole diameter Φ 0.5mm ± 0.1mm, Diameter,9mm≤Φ, length ≥ 35mm, stainless steel |
| Burner angle | 0°, 45° (adjust flame height) |
| Thermocouple | Ø0.5mm Type K (Ni/Cr – Ni/Al), armored sheath can withstand temperature-40°C~ 1100°C |
| Burning time | 0-999.9 s ± 0.1 s adjustable (usually selected for 30s) |
| Hold Burning time | 0-999.9 s ± 0.1 s, automatic recording, manual timeout |
| Flame Height | 12mm ± 1mm (with height measurement instruments) |
| Flame Gas | butane gas/Butane gas, min. 95% purity (can use bottled lighter gases) |
| Temperature Test Range | 0~1000°C |
| Flame Temperature Requirements | from 100 °C ± 2 °C liters to 700 °C ± 3 °C time in 23.5 seconds ± 1 seconds |
| Standard Copper Block | 4mm±0.01mm, weight.0.58g±0.01g before drilling. Cu-ETP |
| Test process | automatic control, independent convulsions |
| Chamber | ≥0.5m3 |
| Size | W1100mm×D700mm×H1300mm, exhaust hole Ø100mm |
| Control | Using single chip microcomputer + touch screen control |
| Consult standard | EN 60695−11−5, IEC60695−11−5,UL746A |
| Power Supply | 220V, 48-60Hz |
| Display panel language | Chinese + English (adjustable) |

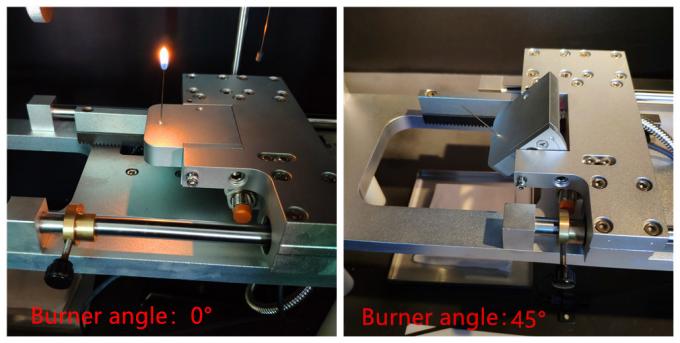

Burner Angle

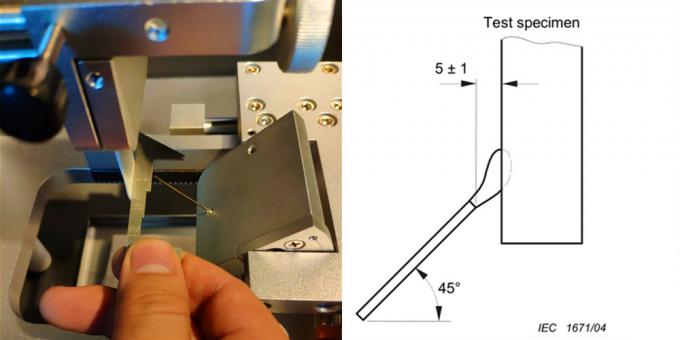

Test position

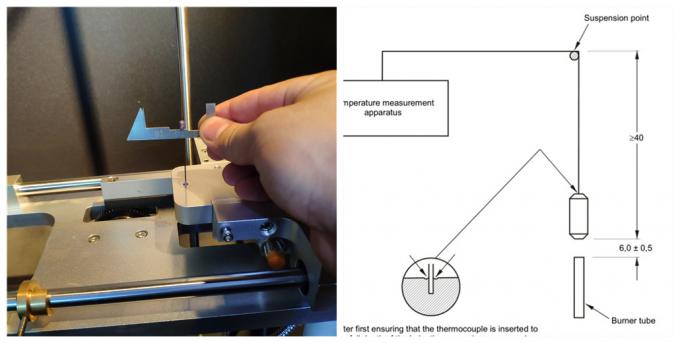

The mode of suspension of the copper block shall be such that the block remains essentially stationary during the test.

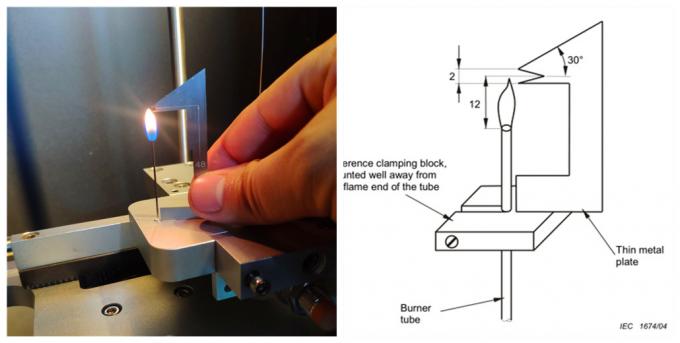

Gauge to measure flame height
