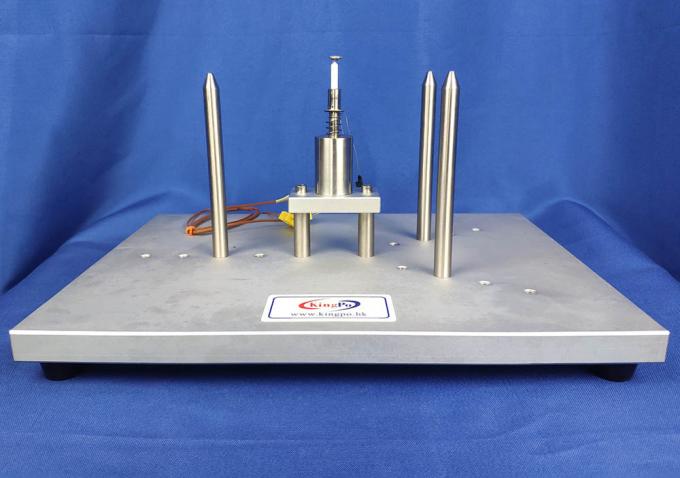

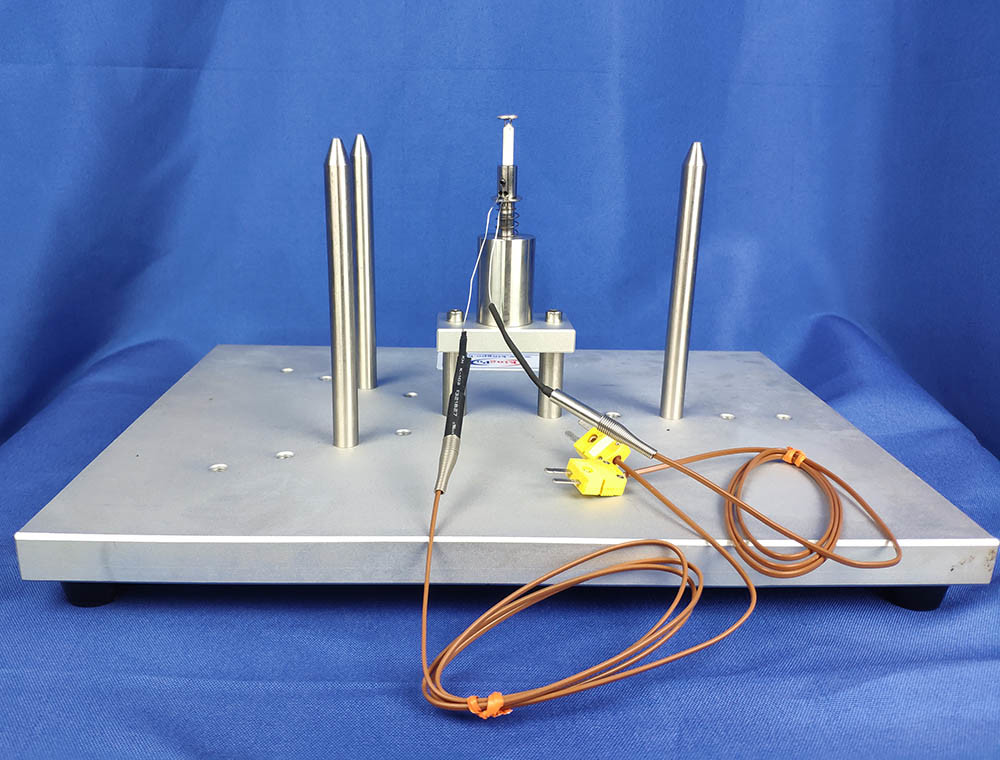

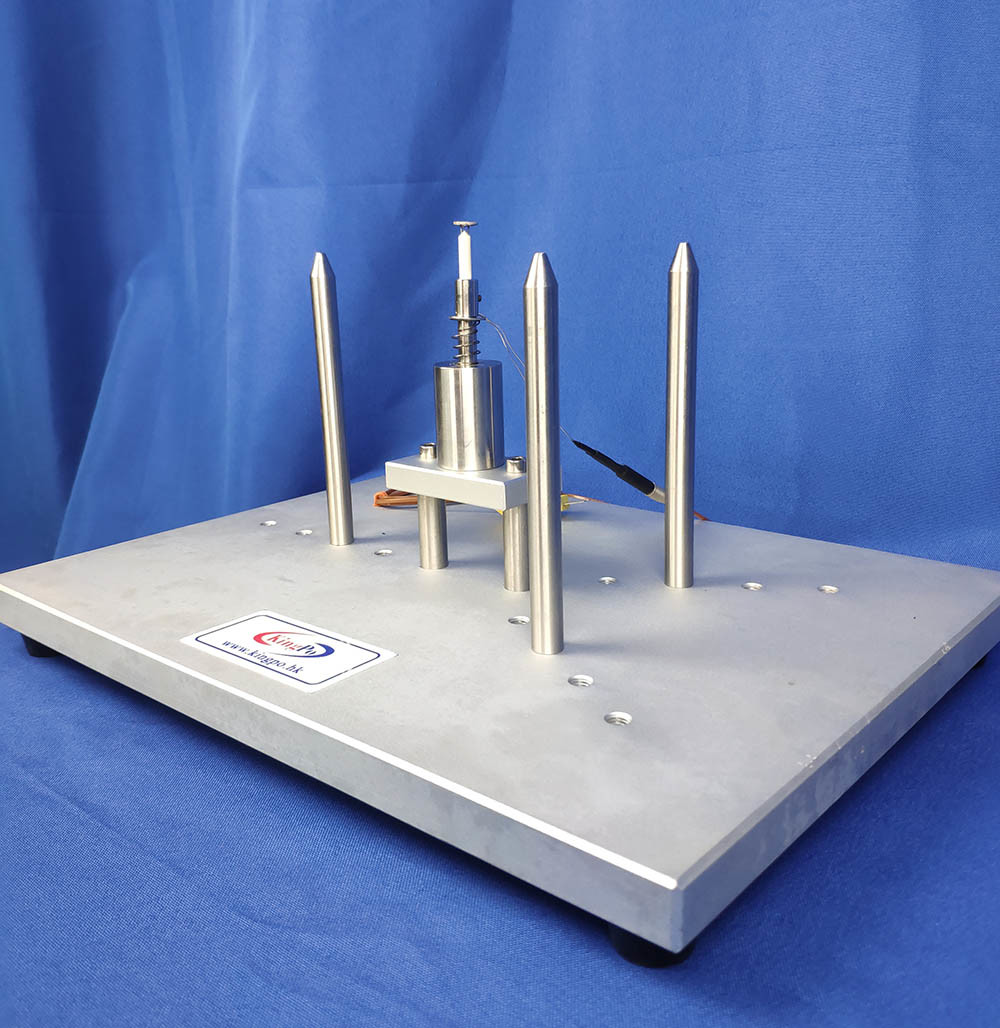

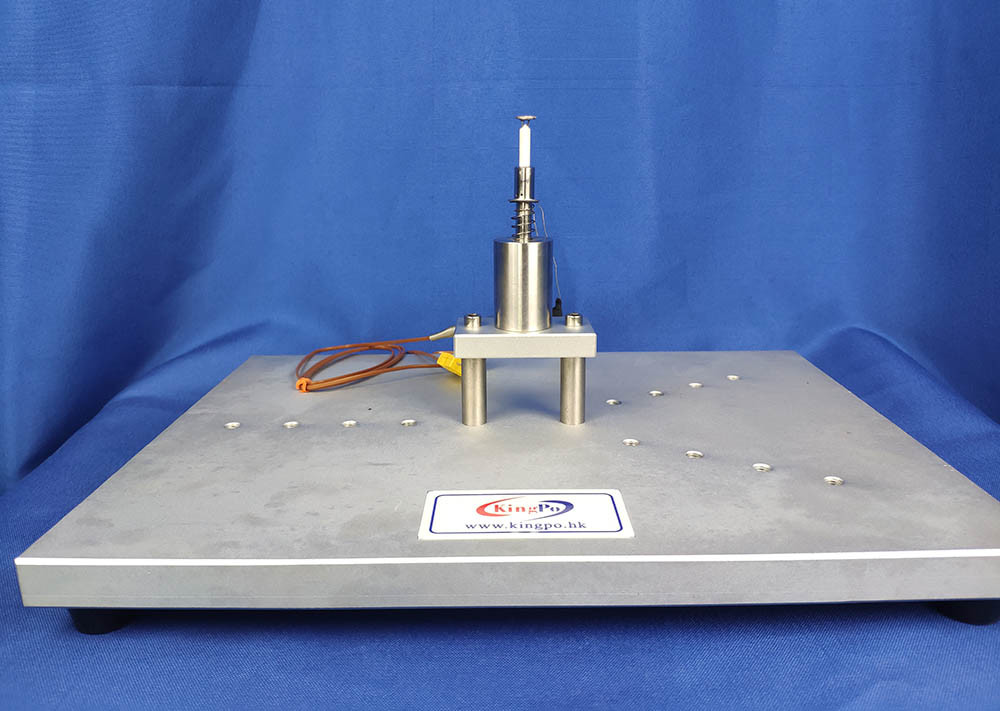

IEC60311 Figure 1 Arrangement For Measuring The Iron Sole Plate Temperature
- Product Details
- Inquiry
Product Description
IEC60311 Figure 1 Arrangement for measuring the sole-plate temperature of Iron
1. According to the standard:

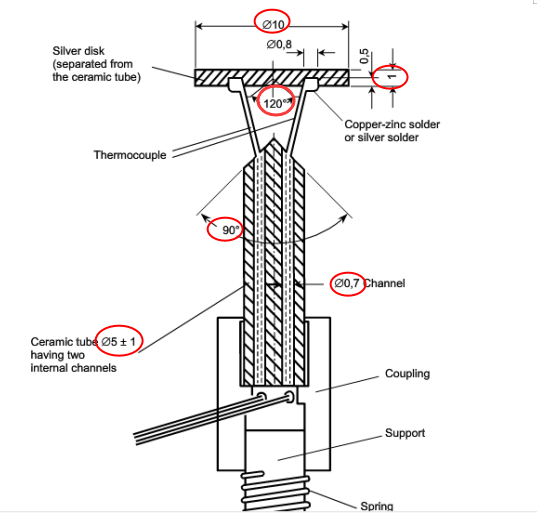

IEC60311-Fig1
IEC60311-Fig1
2. Purpose: measure the temperature of the bottom of the iron (including the iron stand)
3.Technical parameters:

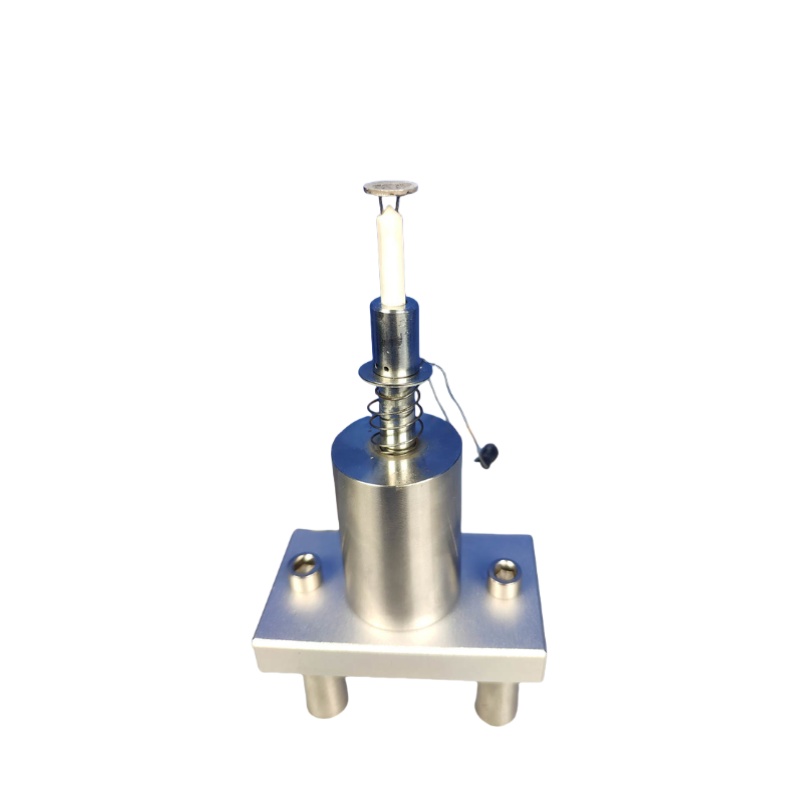

1. Silver disk
Diameter: 10mm, Thickness: 1mm
2. Themocouple wires
Brand: American original OMEGA,
Diameter: 0.3mm, K type
3. Ceramic tube
Diameter 5mm±1mm.
Inner hole diameter: 0.7mm*2, top 90 degree sharp angle
4. Spring
Force value>1N
5. Silisome grease
Brand: Japanese Shinetsu
1. Silver disk
Diameter: 10mm, Thickness: 1mm
2. Themocouple wires
Brand: American original OMEGA,
Diameter: 0.3mm, K type
3. Ceramic tube
Diameter 5mm±1mm.
Inner hole diameter: 0.7mm*2, top 90 degree sharp angle
4. Spring
Force value>1N
5. Silisome grease
Brand: Japanese Shinetsu
4. Calibration
Measurable data: force value, temperature (50°C, 100°C, 200°C, 250°C) and size marked in red
Measurable data: force value, temperature (50°C, 100°C, 200°C, 250°C) and size marked in red
