Product Description

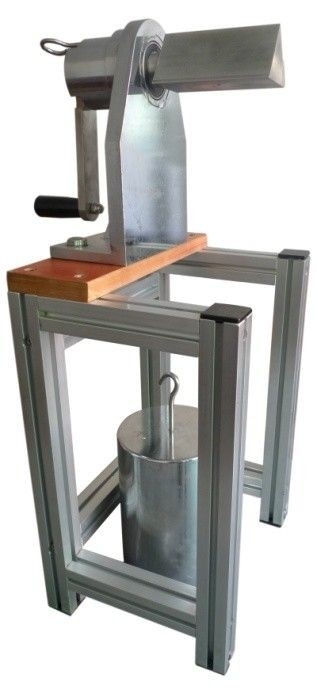

IEC60065:2014 clause 8.21, figure 16 Mandrel Test Device

Non Separable Thin Layer Material Anti Damage Strength Verification Device

Standard:

Confirm to IEC60065:2014 clause 8.21, figure 16, IEC60950

Application:

Insulation anti damage strength verification for non separable thin layer materials.

Test sample:

Non separable thin layer material.

Feature:

The position of 10°and 230°are set with mechanical limit, not only to ensure the accuracy of the test angle, but also to achieve a simple operation method; weight with a hanging ring, in case of a point is damaged because of too large pull force.

Parameters:

1. Weight of 50N*3pcs,can be combined to achieve 100N and 150N testing.

2. Number of test times:3 times.

3. Withstanding voltage tester (Optional).
