IEC60065 Clause 12.1.2 Drop Test Apparatus For Audio , Video And Electronic Clamping Appliance
- Product Details
- Inquiry
Product Description

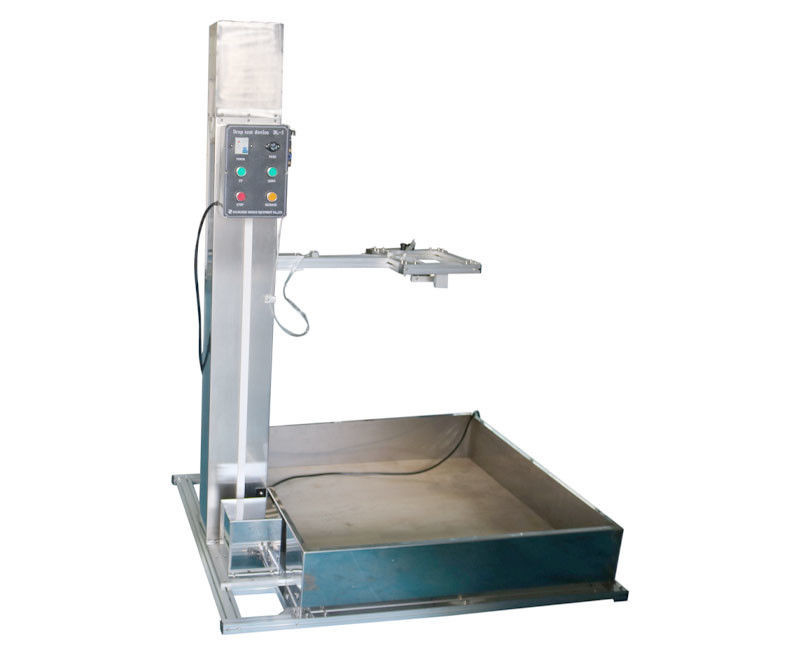

IEC 60065:2014 clause 12.1.5 single arm drop tester
Standard:
Conforms to IEC 60065:2014 clause 12.1.5, 15.4.3 a), 12.7.3.4, IEC 60950-1 Clause 4.2.6, IEC 60598-1 Clause 4.13.4b)
Application:
This device is suitable for verify the drop resistance performance of audio, video and similar electronic apparatus having a mass of 7kg or less, information technology equipment having a mass of 5 kg or less, and portable lamp .
Test sample:
Audio, video and similar electronic apparatus, Information technology equipment, Luminaries
Feature:
Also known as the single arm drop tester, carton drop test machine. Can carry on the multi direction drop to the packing product. In the test, the support arm rapid downward movement and then rotating, to ensure test sample free separate with the support arm. Samples free fall, angle error is less than 5 degrees, the impact of small vibration, stable and reliable, is the real surface, edge and corner drop test machine.
Parameters:
| Model | KP-1212 |
| Release mode | Pneumatic |
| Drop floor | hardwood at least 13 mm thick, mounted on two layers of plywood each 19 mm to 20 mm thick, 1000*1000mm*(51~60)mm |
| Drop height | 750mm or 1000mm, Electric adjustable |
| Test sample | information technology equipment having a mass of 5 kg or less, and portable lamp; audio, video and similar electronic apparatus having a mass of 7kg or less |
