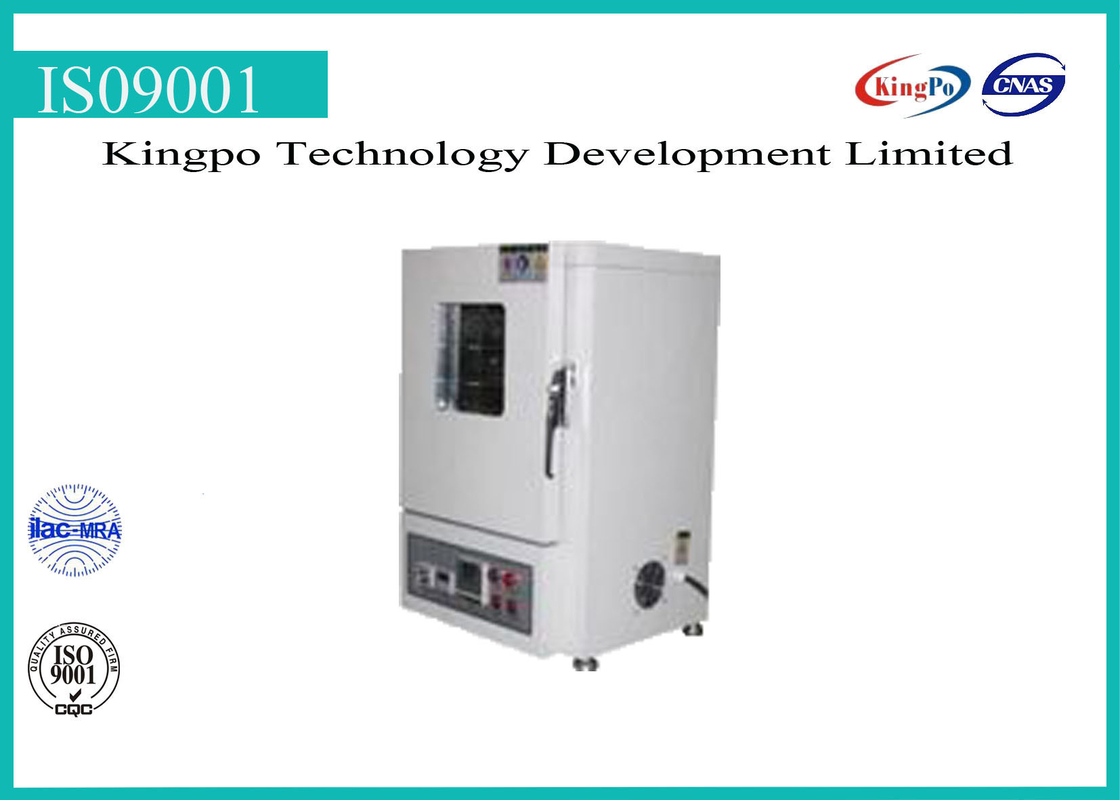

IEC Standard Battery Thermal Shock Test Chamber For UL KP-3020-B

Type:	Climatic Simulating Test Chamber	Weight:	80kg
Internal Space:	W65H92D53cmc	Temperature Accuracy:	0.1℃
Temperature Stability:	±1.0℃	Temperature Uniformity:	±2℃
Highlight:	Battery Test Chamber, Battery Testing Equipment, UL KP-3020-B Thermal Shock Test Chamber

Product Description

Thermal Shock Test Chamber For UL And IEC Standard

1. Quick Details

Alternative name	Battery Thermal Shock Test Chamber
Function	Test battery safety capability after suffering impact of hot air
Type	Climatic simulating test chamber
Weight	80kg
Internal space	W65H92D53cm
Corresponding test standard	UL2054-2008, UL1642, SJ/T11170, IEC62133, SJ/T11169, GB/T18287, QC/T743, QC/T744

2. Description

The battery thermal shock test chamber is used to test safety capability after suffering hot air shock.

The temperature will be raised at certain speed at certain time, apply hot air cyclic system to ensure average distribution of working temperature.

3. Features

a. The low air pressure tester is used for testing safety capability of lithium battery.

b. The tester is simulating battery suffering environment of hot air shock.

c. Test result is non explosion, no fire, non air leaking, non electrolyte leakage for the qualified battery.

4. Specifications

Model	KP-3020-B
Temperature range	Normal temperature to 200℃
Temperature accuracy	0.1℃
Temperature stability	±1.0℃
Temperature uniformity	±2℃
Temperature raising time	(5±2)℃／min (temperature average raising)
Temperature- controlled meter	Programmable, time control for temperature raising time
Internal dimension WHD mm	W40H40D45cm
External dimension WHD mm	W65H92D53cm
