Product Description
IEC 62680- 1-2/ IEC 62680- 1-3 USB TYPE-C Compliance Testing Plan

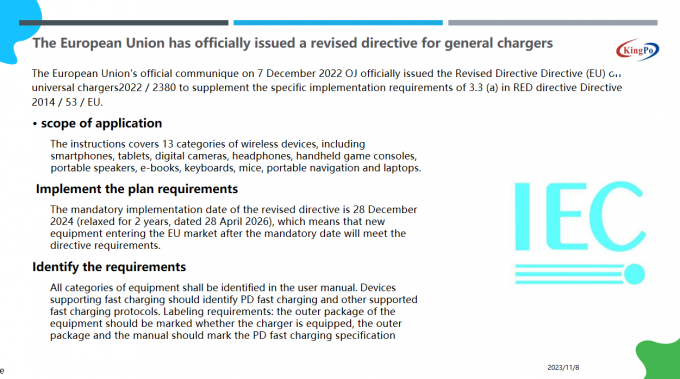

The EU officially issued the revised directive on universal chargers
Directive (EU) in the Official communique 0J on 7 December 2022/2380 to supplement the specific implementation requirements of 3.3 (a) in RED
scope of application
The instructions covers 13 categories of wireless devices, including smartphones, tablets, digital cameras, headphones, handheld game consoles, portable speakers, e-books, keyboards, mice, portable navigation and laptops
Implement the plan requirements
The mandatory implementation date of the revised directive is 28 December 2024 (relaxed for 2 years, dated 28 April 2026), which means that new equipment entering the EU market after the mandatory date will meet the directive requirements.
Admidia identification requirements
All categories of equipment shall be identified in the user manual. Devices supporting fast charging should identify PD fast charging and other supported fast charging protocols. Labeling requirements: the outer package of the equipment should be marked whether the charger is equipped, the outer package and the manual should mark the PD fast charging specificationg
One-stop PD and TYPE-C testing solution

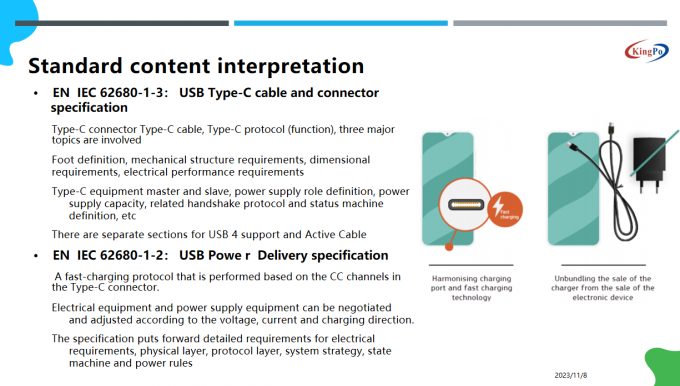

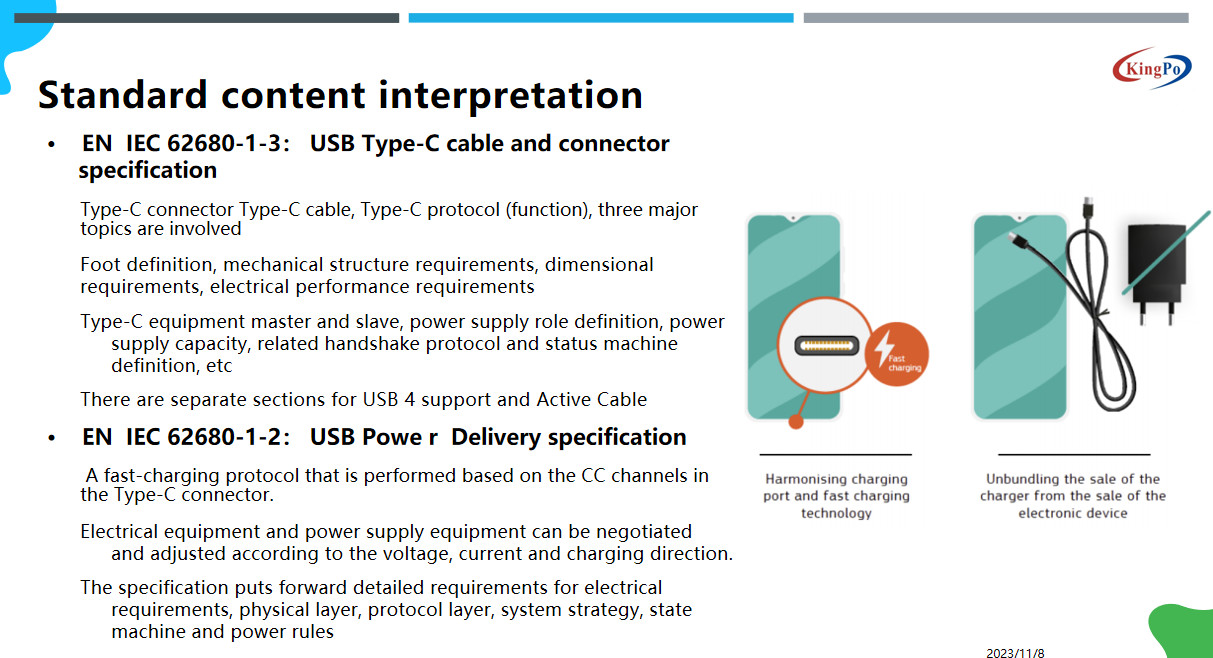

Standard content interpretation
EN IEC 62680-1-3: USB Type-C cable and connector specification
Type-C connector Type-C cable, Type-C protocol (function), three major topics are involved
Foot definition, mechanical structure requirements, dimensional requirements, electrical performance requirements
Type-C equipment master and slave, power supply role definition, power supply capacity, related handshake protocol and status machine definition, etc
There are separate sections for USB 4 support and Active Cable
• EN IEC 62680-1-2: USB Powe r Delivery specification
A fast-charging protocol that is performed based on the CC channels in the Type-C connector.
Electrical equipment and power supply equipment can be negotiated and adjusted according to the voltage, current and charging direction.
The specification puts forward detailed requirements for electrical requirements, physical layer, protocol layer, system strategy, state machine and power rules

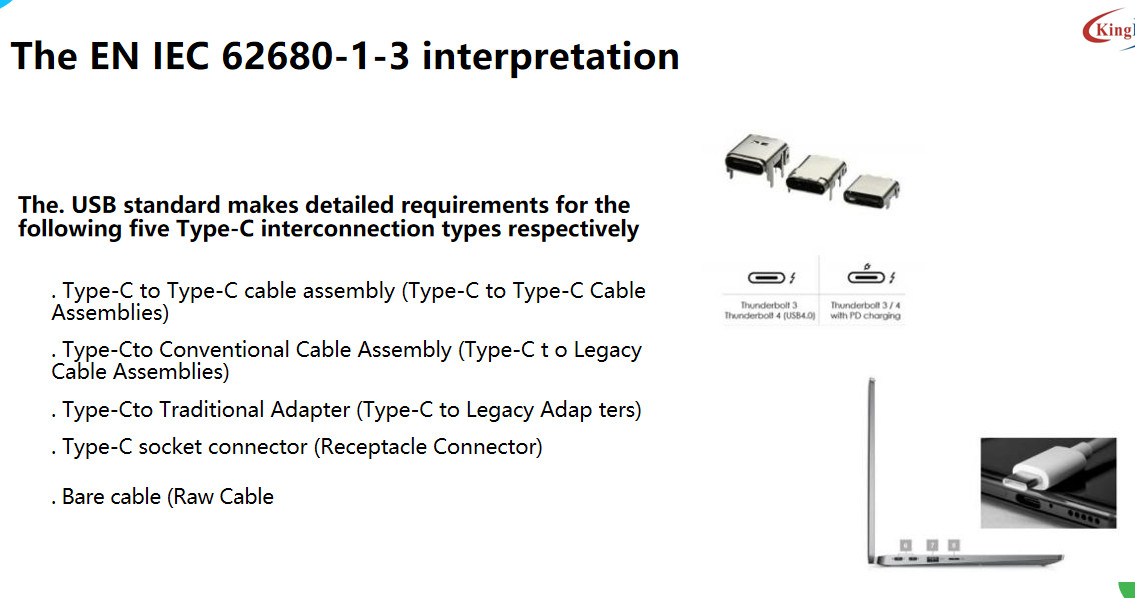

The EN IEC 62680-1-3 interpretation
The. USB standard makes detailed requirements for the following five Type-C interconnection types respectively
. Type-C to Type-C cable assembly (Type-C to Type-C Cable Assemblies)
. Type-Cto Conventional Cable Assembly (Type-C t o Legacy Cable Assemblies)
. Type-Cto Traditional Adapter (Type-C to Legacy Adap ters)
. Type-C socket connector (Receptacle Connector)
. Bare cable (Raw Cable)
The EN IEC 62680-1-3 interpretation

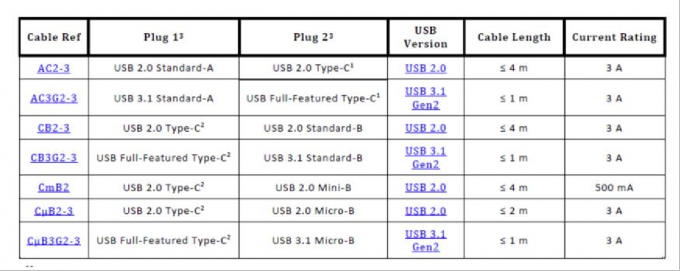

USB Type-C Standard cable Assembly Specification Type-C to Type-C Cable assembly (Type-C to Type-C Cable Assemblies)
The EN IEC 62680-1-3 interpretation

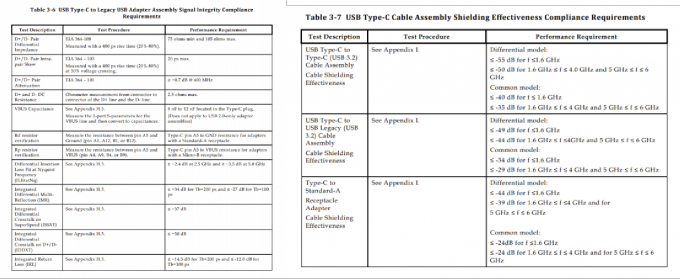

USB Type-C® Connectors and Cable Assemblies CTS Test Group B-3
WE ARE READY FOR EN IEC 62680-1-3

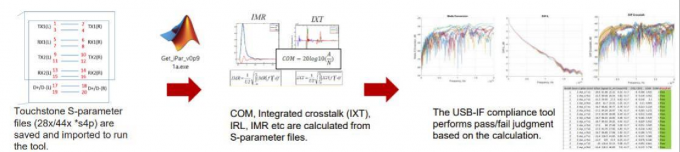

The USB-IF compliance protocol

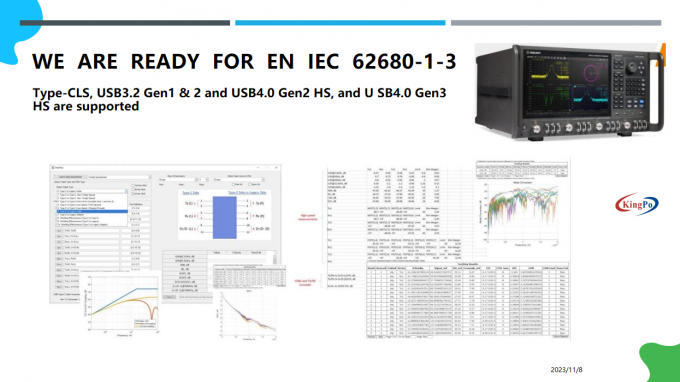

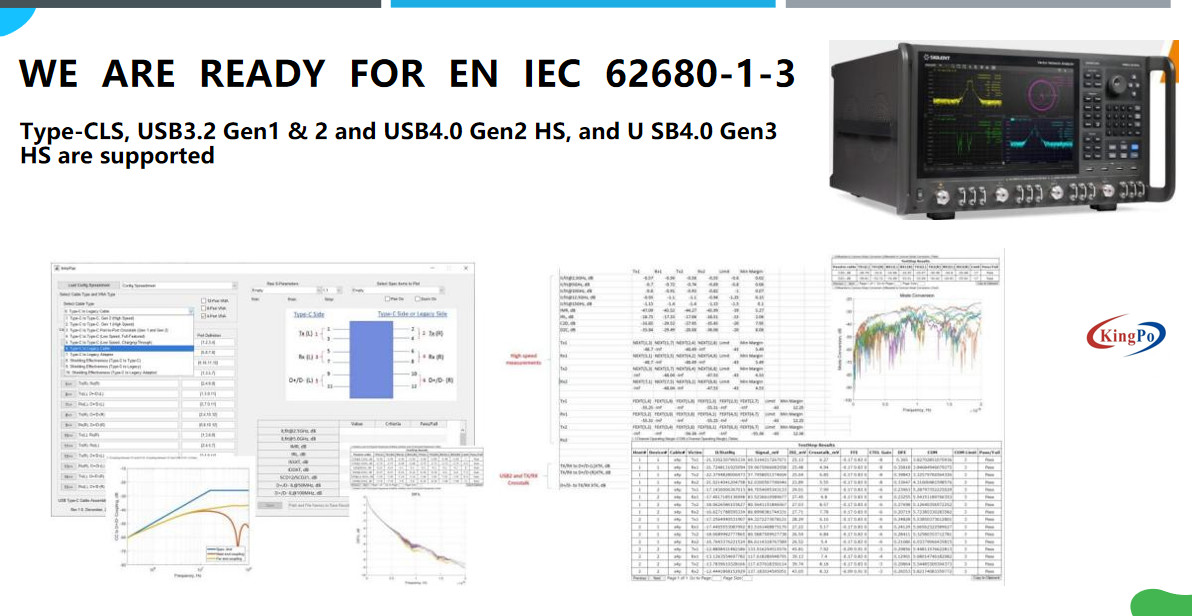

WE ARE READY FOR EN IEC 62680-1-3
Type-CLS, USB3.2 Gen1 & 2 and USB4.0 Gen2 HS, and U SB4.0 Gen3 HS are supported
The EN IEC 62680-1-2 interpretation

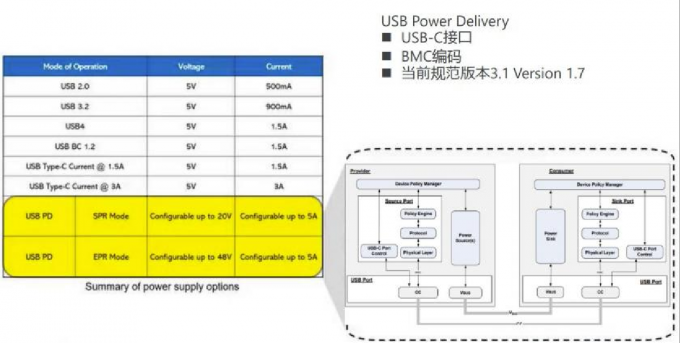

USB PD Evolution
The EN IEC 62680-1-2 interpretation
USB Power Delivery Product standard test items
The EN IEC 62680-1-2 interpretation

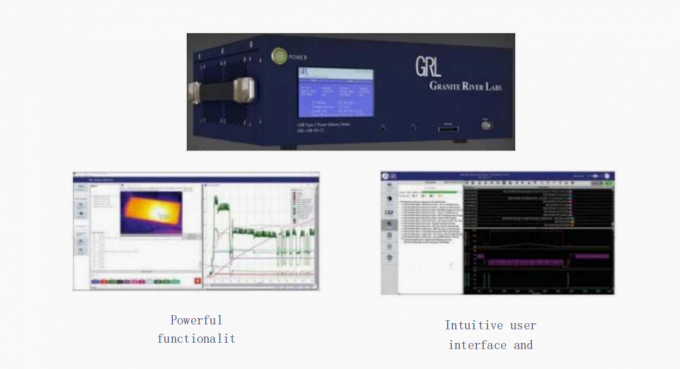

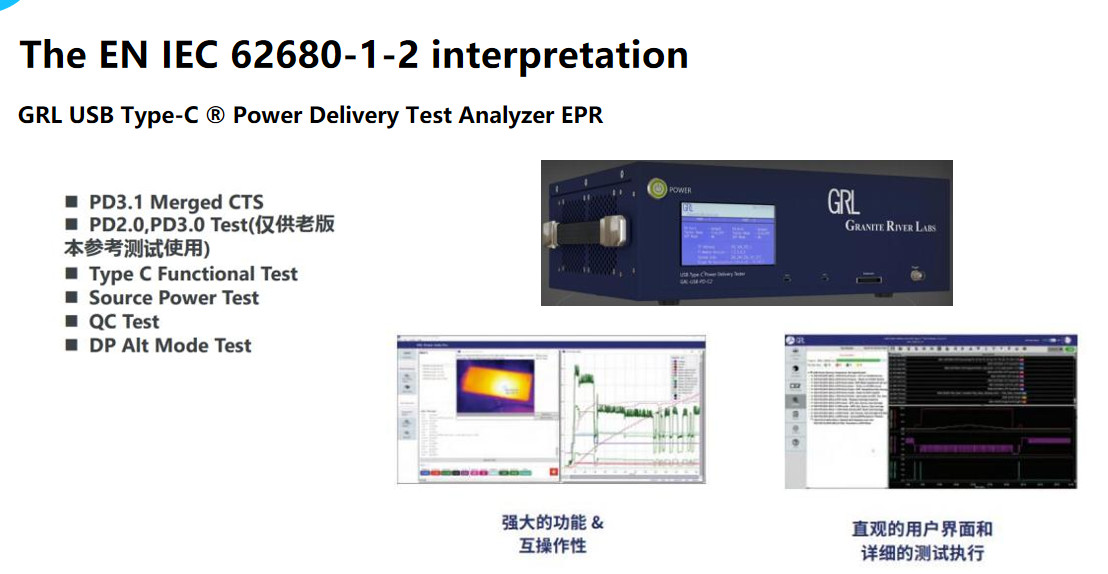

GRL USB Type-C ® Power Delivery Test Analyzer EPR
■ PD3.1 Merged CTS
■ PD2.0,PD3.0Test (For old version reference test use only)
■ Type C Functional Test
■ Source Power Test
■ QC Test
■ DP Alt Mode Test
The EN IEC 62680-1-2 interpretation

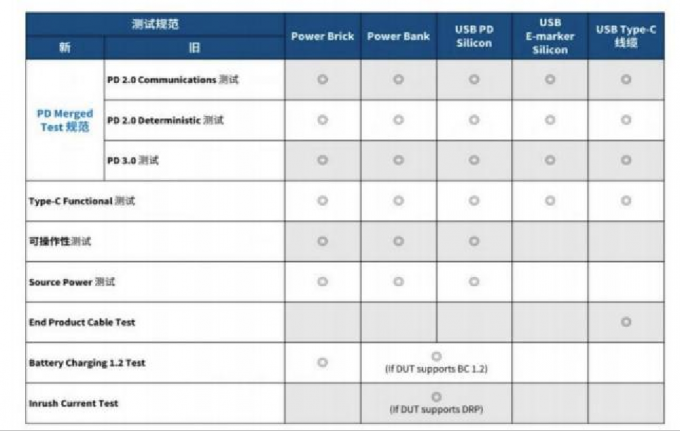

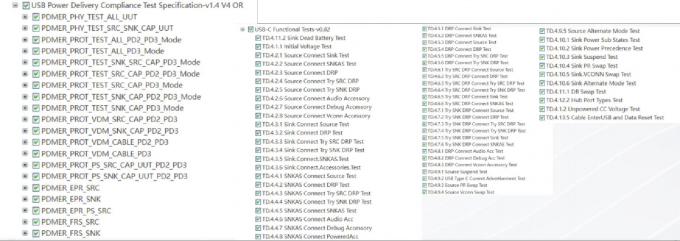

USB PD 3.1 The Merged CTS test item
