IEC 62368-1 Annex G.8.2.2 Resistor loading box

1. IEC 62368-1, Annex G.8.2.2

2. Resistance: 3840ohm(60W), 1920ohm(120W),960ohm(240W),480ohm(480W),240ohm(960W),120ohm(1920),60ohm (3840W),480ohm(short circuit)

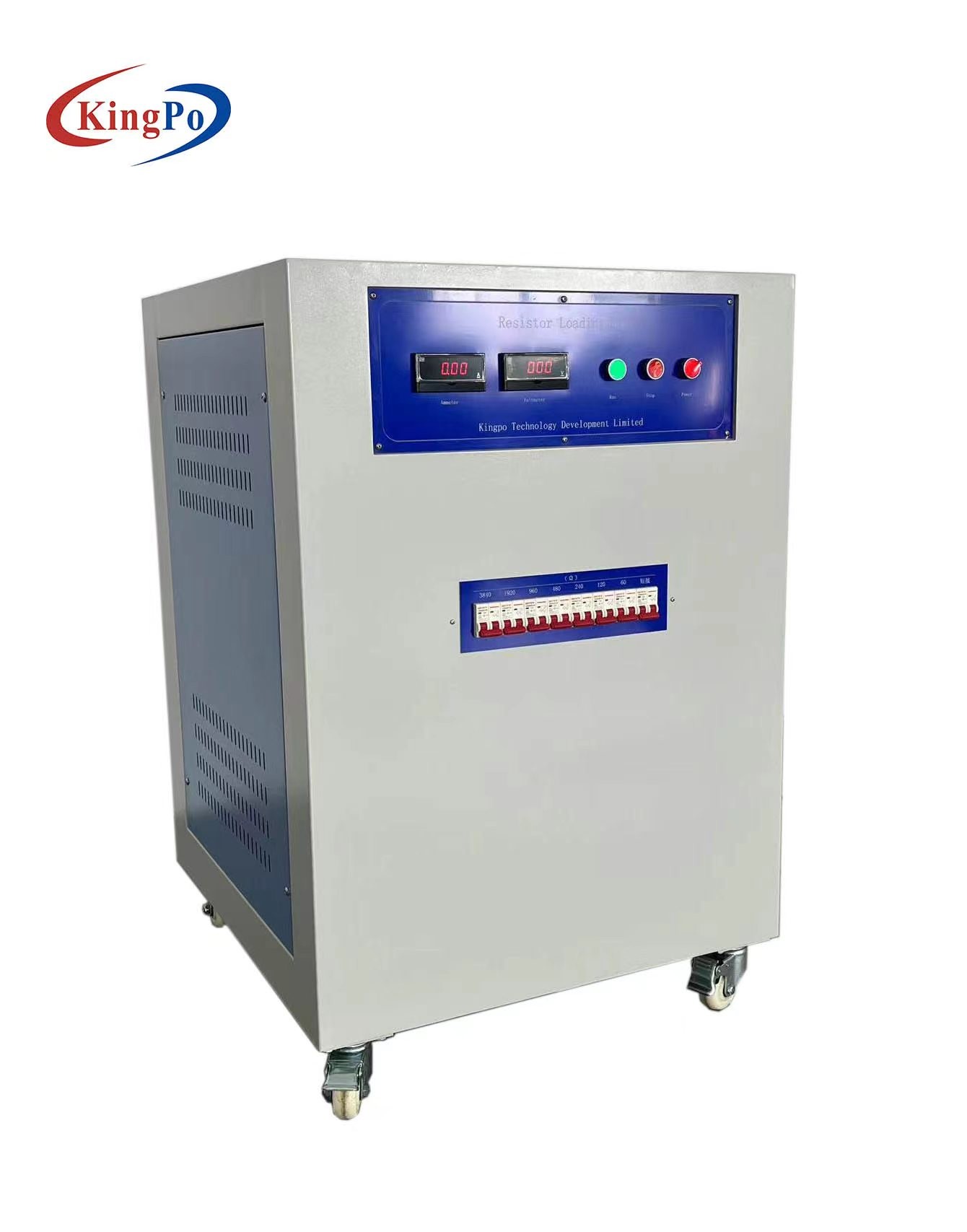

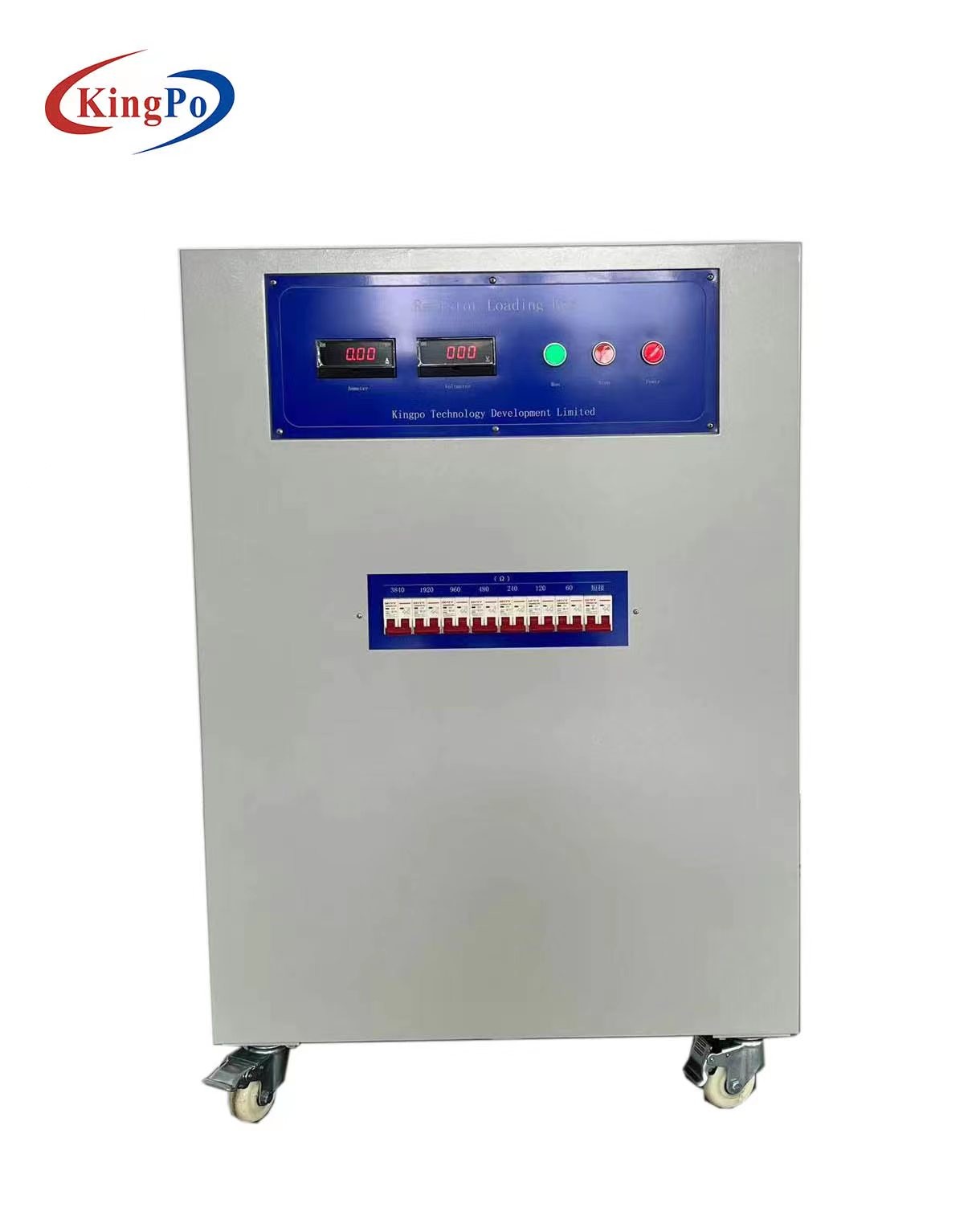

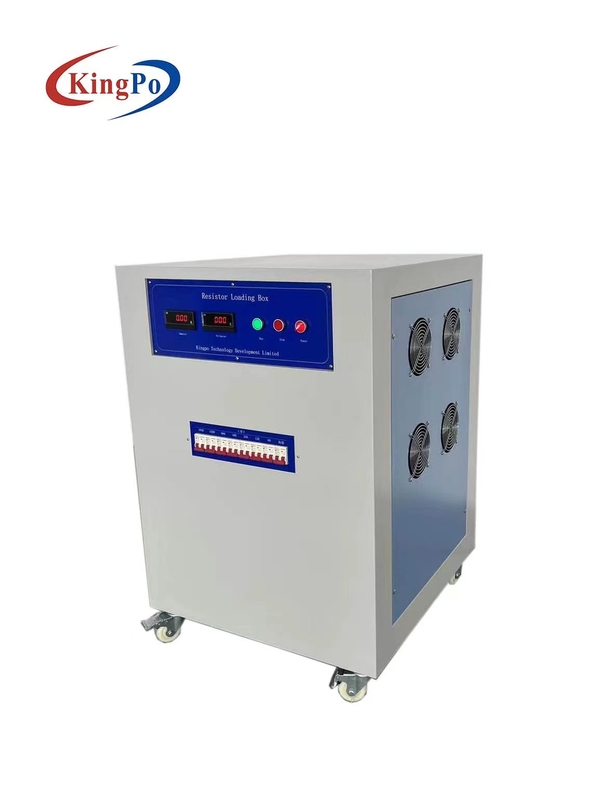

3. The loading box should be metal enclosure with ground, wheel with stoper. Display of input voltmeter(Digital voltmeter),current(Digital ammeter). E-stop for disconnect all input voltage. Enough cooling fan to maintain the resistance constantly under high current.

4. Dimensions: 750*800*1100mm
