IEC 62368-1 Annex C UV Radiation Test Equipment , Xenon-Arc Light-Exposure Test

lace Of Origin::	Guangdong, China (Mainland)	Temperature Range:	RT+10℃~70℃
Humidity Range:	Light 20% ~ 60%RH, Dark: 30% ~ 98%RH	Rain Time:	0~9999min(adjustable)
Rain Cycle:	0~240min,adjustable Interval	Irradiated Intensity:	(340nm) 0.35W/m²
Lamp Life:	1200h	Lamp Power:	6500W
Highlight:	IEC 62368-1 UV radiation test equipment Xenon Arc Light Exposure Tester

Send Inquiry Chat Now

Product Details
Inquiry

Product Description

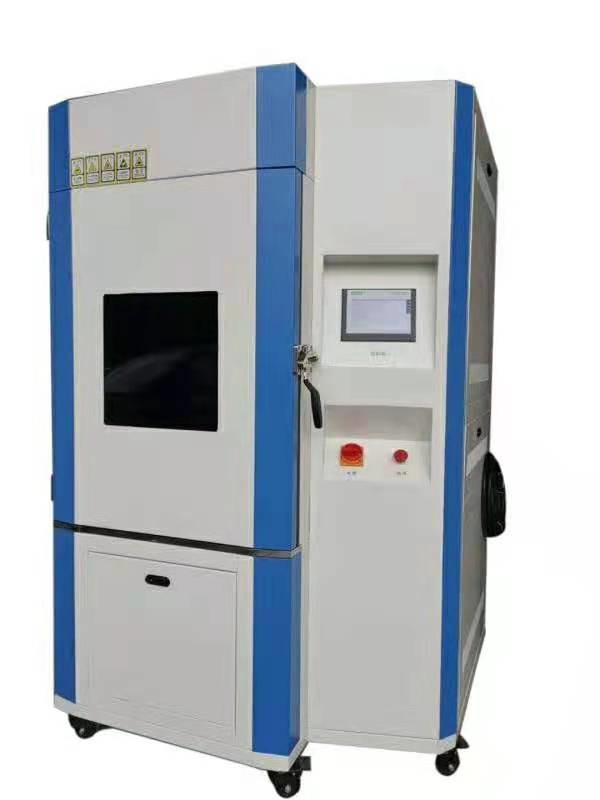

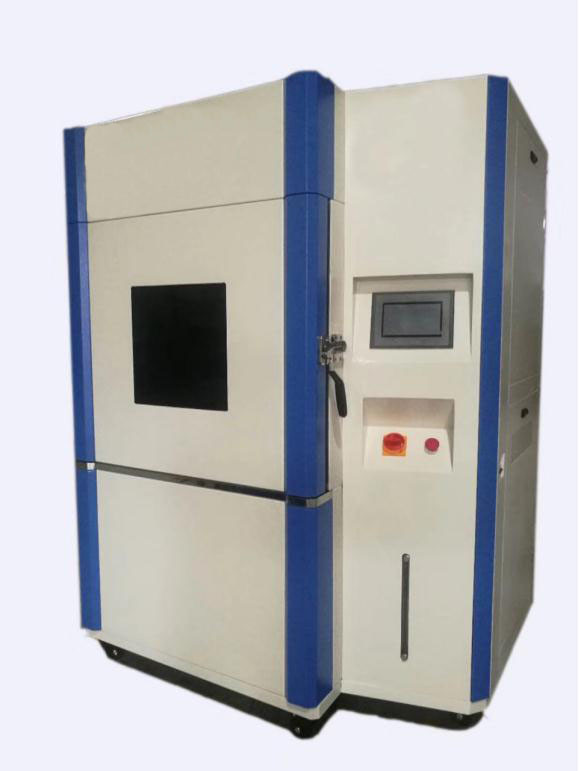

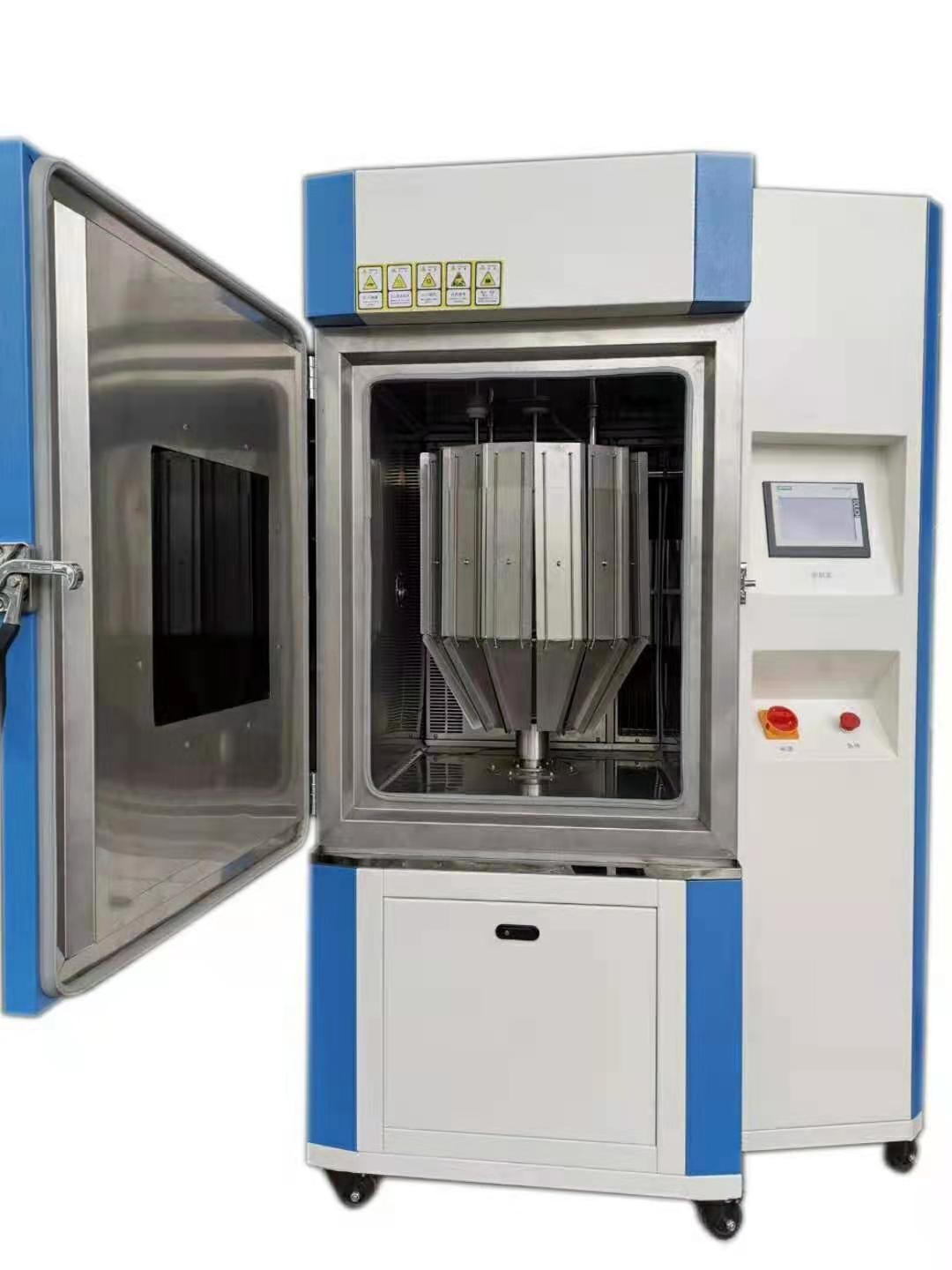

IEC 62368-1 Annex C UV radiation test equipment , Xenon-arc light-exposure test

IEC62368-1 Standard requirement:

C.2 UV light conditioning test
C.2.1 Test apparatus
Samples are exposed to UV light by using one of the following apparatus:
– a twin enclosed carbon-arc (see C.2.3) with continuous exposure for a minimum of 720 h.
The test apparatus shall operate with a black-panel temperature of 63 °C ± 3 °C in a relative humidity of (50 ± 5) %; or

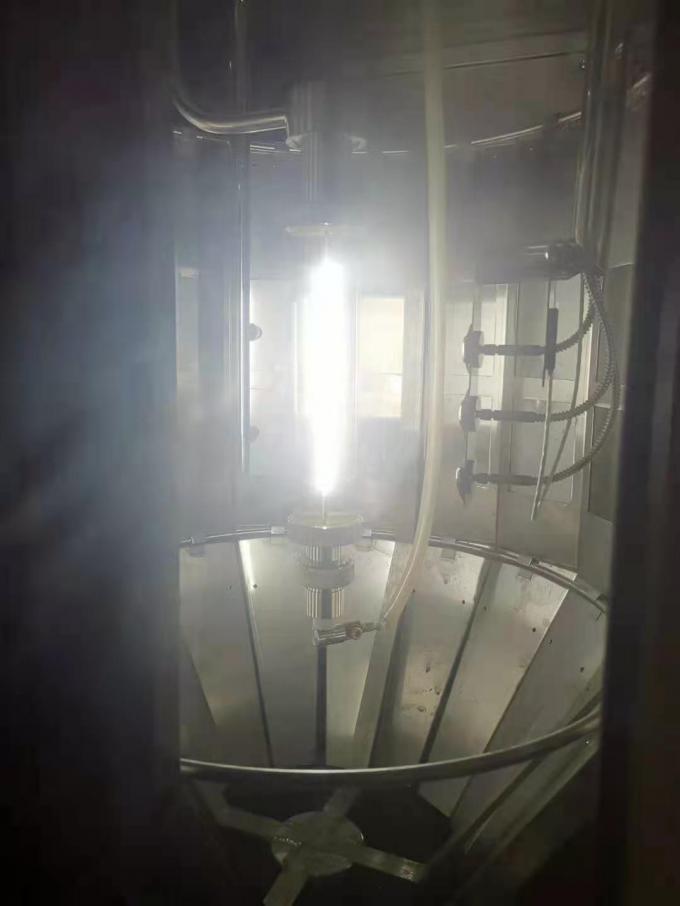

– a xenon-arc (see C.2.4) with continuous exposure for a minimum of 1 000 h. The test apparatus shall operate with a 6 500 W, water-cooled xenon-arc lamp, a spectral irradiance of 0,35 W/m² at 340 nm, a black-panel temperature of 63 °C ± 3 °C in a relative humidity of (50 ± 5) %

Specifications:

Item	Specification
Internal Dimension (WDH)	600600800mm(WDH)
External Dimension (WDH)	135012002050 mm(WDH)
Inner chamber material	SUS 304 # Stainless Steel, Anti-rust, easy to clean
Outer chamber material	cold plate rust proof and plastic spraying treatment
Temperature	RT+10℃～70℃
Temperature Uniformity	±3℃
Humidity Range	Light 20% ~ 60%RH, dark: 30% ~ 98%RH
Irradiated intensity	(340nm) 0.35W/m²
lamp power	6500W
Lamp life	1200h
Blank panel temperature	Light 60℃ ~ 100℃, dark 40 ~ 70℃
Temperature sensor	PT100 high precision temperature sensor
Control system	PLC controller

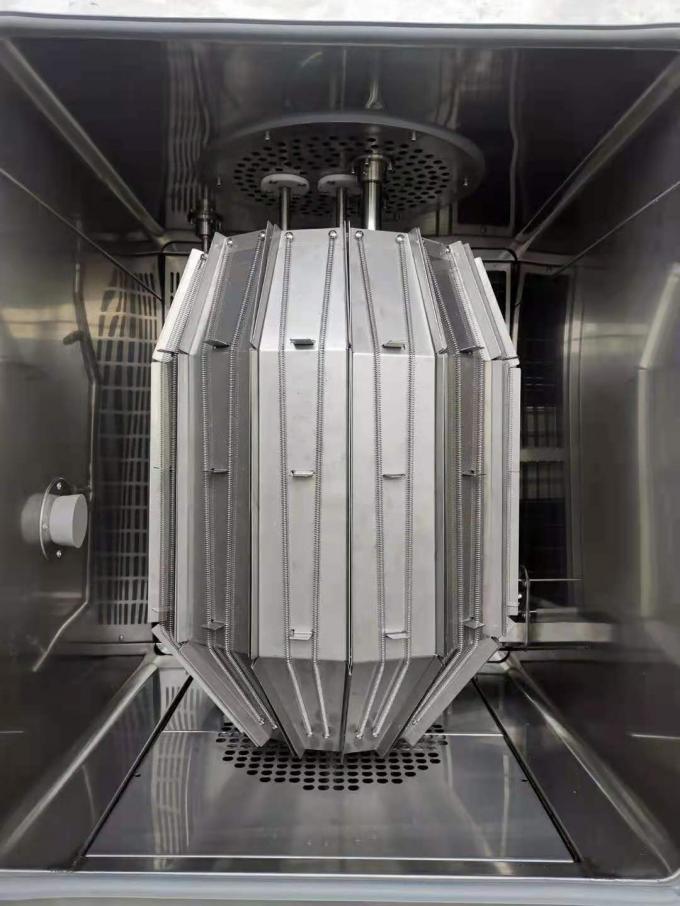

Distance from specimen to arc center	250~300mm, Effective exposure area 3760cm²
Filter	Borosilicate filter inside and outside
Water pressure at nozzle	0.12～0.15Mpa
Nozzle diameter	0.8mm
Water supply time	0-999min
Cooling Model	Cold water machine
Power	AC380V, 60Hz.
Safety Protection	Over heat protection for fan,
	Over load protection for cooling system,
	Over pressure protection for cooling system,
	Over temperature protection,
	Over heat and over flow protection for water pump,
	Leakage protection, Water shortage protection,
	Auto stop after failure warning
