Product Description

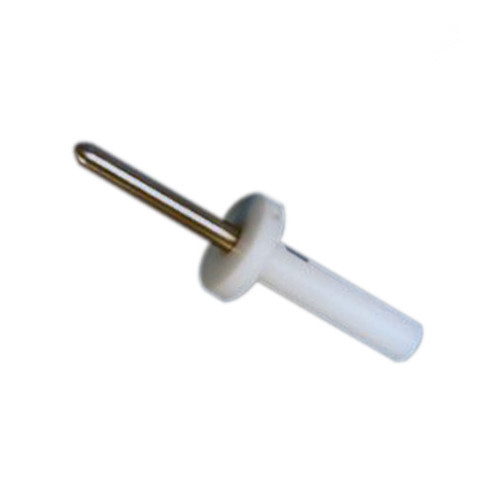

IEC 60950 Figure 2C / IEC62368-1 Figure V.3 Blunt Probe Testing the Limited Access to Telecommunications Voltages
The Blunt probe is required in IEC62368,IEC 60950,IEC 60065, UL and CSA Standards. It is used to check the limited access to Telecommunications voltages (TNV), mainly telephone jacks and operator areas. Satisfies basic standard for telecom product safety.
Meets Requirements for Testing Standard(s) including but not limited to:IEC 60950 UL 60950 EN 60950 CSA 950
Reference Standard:

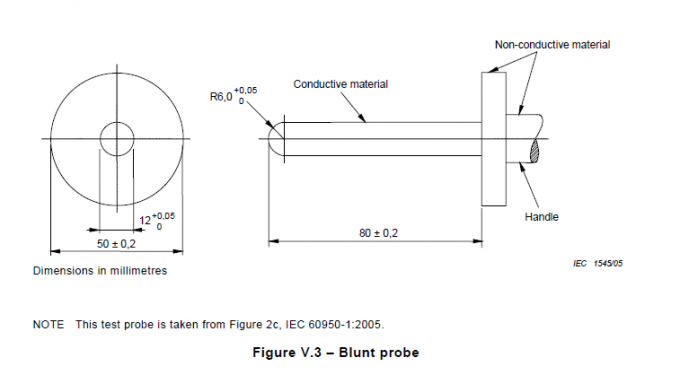

IEC62368-1-Figure V.3
Technical Parameters:
| Telecom Test probe diameter | 12mm |
| Telecom Test probe length | 80mm |
| Dam-board diameter | 50mm |
| Material | nylon and stainless steel |
| Reference | IEC62368,IEC60950, IEC60065,IEC60695, UL, CSA |
