IEC 60884-1:2022 Clause 8.8 Figure 5 Test Piston

Standard:	IEC 60884-1:2022 Clause 8.8 And Figure 5	Shore-A Hardness:	47 ± 5
Highlight:	IEC 60884-1:2022 Clause, Clause 8.8 Figure 5 Test Piston, IEC 60884-1 Lamp Cap Gauge

Standard:

IEC 60884-1:2022 Clause 8.8 And Figure 5

Shore-A Hardness:

47 ± 5

Highlight:

IEC 60884-1:2022 Clause,

Clause 8.8 Figure 5 Test Piston,

IEC 60884-1 Lamp Cap Gauge

Send Inquiry Chat Now

Product Details
Inquiry

Product Description

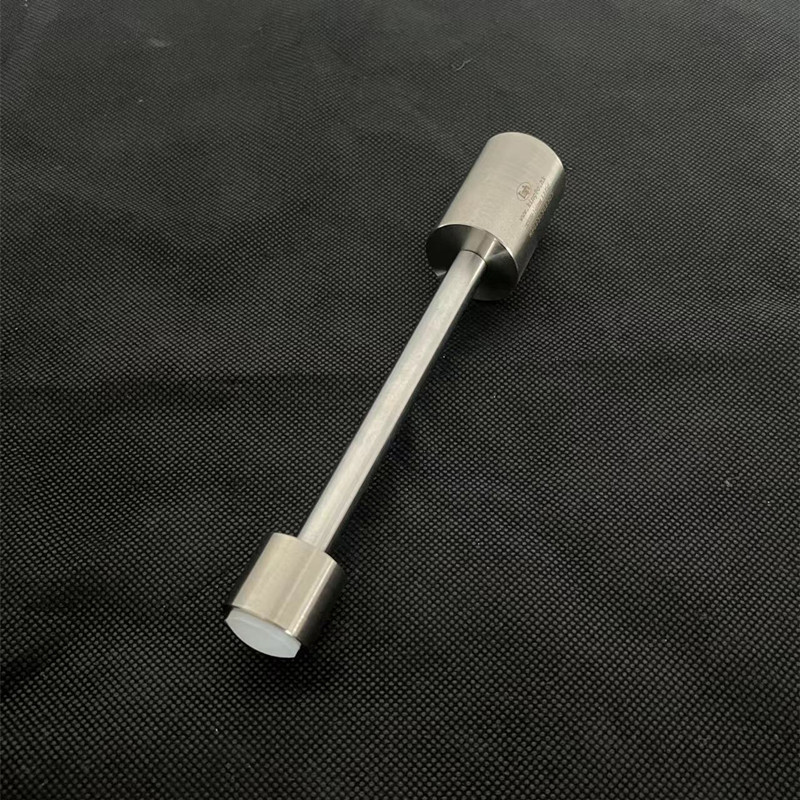

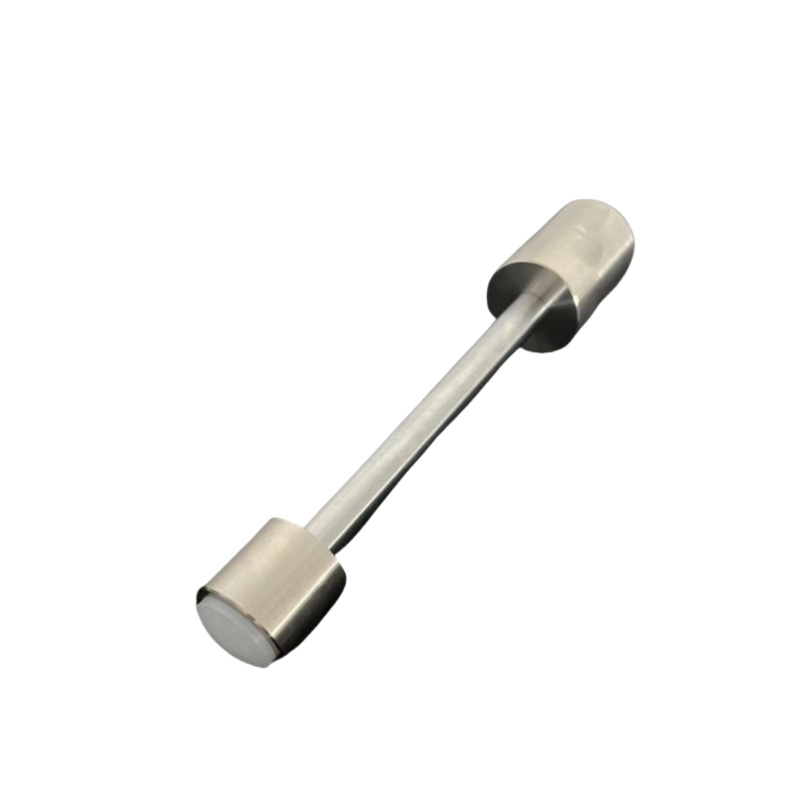

IEC 60884-1:2022 clause 8.8 figure 5 Test piston

8.8 Durability

The compression force is applied by means of a test piston which is wrapped with cotton comprising cotton wool covered by a piece of cotton medical gauze.

The test piston shall have the dimensions specified in Figure 5 and shall be made of an elastic material which is inert against the test liquids and has a Shore-A hardness of 47 ± 5 (for example synthetic rubber).

When it is not possible to carry out the test on the specimens due to the shape/size of the product or the marking is not accessible with the test piston:

– a suitable piece having the same characteristics as the product can be submitted to the test

– another test piston with different shape can be used on the condition that radius B is kept.
