Product Description

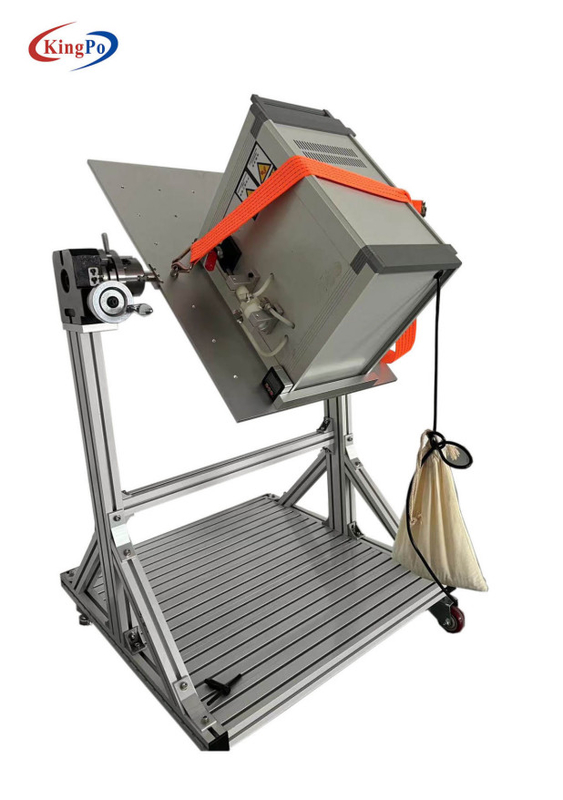

IEC 60601-1-clause.8.11.3.6 / IEC 62368-AnnexG.7.5 Cord guards / Non-detachable cord bend protection tester

Technical Parameters:

Applied standards	IEC 60601-1,IEC 62368-1
Clause	IEC 60601-1-clause.8.11.3.6 ,IEC 62368-AnnexG.7.5,
Angle	0-90° (Manual setting)
Angle accuracy:	±0.1°
Table size	800*500mm
Weight	50kg ( It consists of steel balls and cloth bags. The weight can be adjusted by the number of balls )

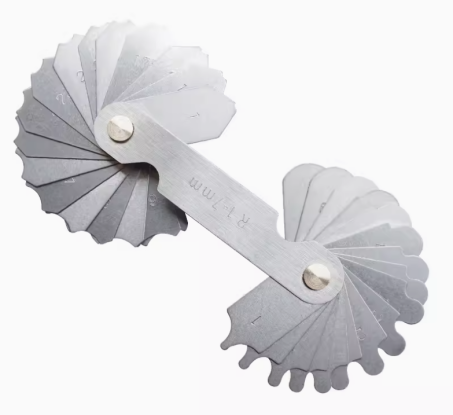

R gauge	R1-R15 (1 1.25 1.5 1.75 2 2.25 2.5 2.75 3 3.5 4 4.5 5 5.5 6 6.5 7 ,7.5 8 8.5 9 9.5 10 10.5 11 11.5 12 12.5 13 13.5 14 14.5 15mm)
