High Efficient Environmental Test Chamber Uv Accelerated Weathering Tester

Temperature Range:RT+10℃~70℃Temperature Uniformity:±3℃
Humidity Range:≥75%RHCentral Distance:65~70mm
Distance Between Sample And Light Center:55mmStandard Sample:75 X 150mm
Highlight:ozone test chamber

temperature and humidity chamber

  • Product Details
  • Inquiry

Product Description

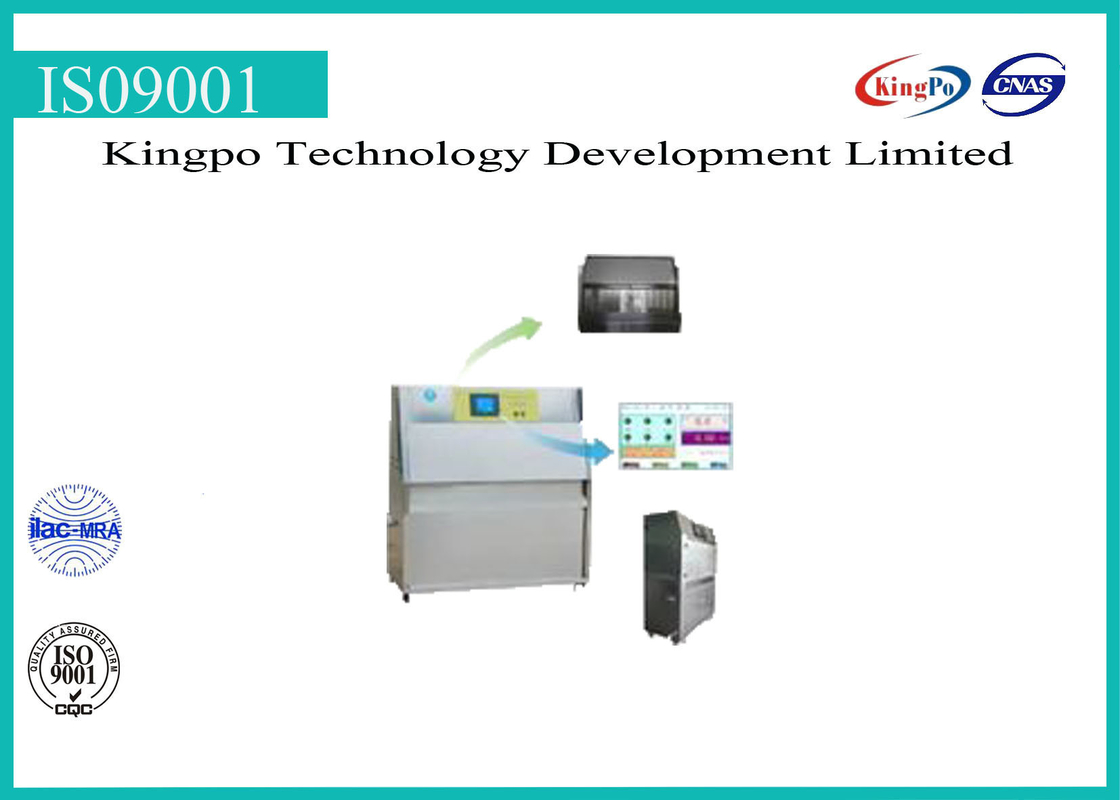

UV Weatherable Tester





Function Description



Tester of KP-UV serial can simulate the damage caused by sunlight,rainfall and dew.UV can simulate sunlight effect with fluorescent UV lamp and rainfall and dew with condensation moisture.Put tested material in the cyclic process of sunlight and moisture under certain temperature.UV can recreate the outdoor hazards with several weeks or years using several days or weeks.Hazards type include:color fading,color change,gloss loss,pink light,cracking,turbidity,bub-

Ble,embrittlement,intensity,decay and oxidization.UV test data can help you choose new materials and evaluate how formula changes effect durability of new product.KP-UV can give superb relevant estimated results regarding trendy changes when material is placed outdoors.



Fix the sample on sample rack,if the rack isn’t filled with sample,the use blackboard to fill up.keep inner wall closed.

Test temperature:50,60,70℃ are adoptable under illumination while make 60℃ a priority;50℃ during condensation segment.tolerance uniformity ±3℃.

illumination and condensation period can choose one of the 2 cycles of 4H illumination and 4H condensation/8H illumination and 4H condensation.After the first illumination of 400~450H,each row should replace one fluorescent lamp.Others compensate the loss caused by aging by means of lamp cycle and substitution,which ensures 1600~1800H service life of each fluorescent tube.when replacing it,wipe them dry and then clean it and avoid scale.



typeKP-UV standardKP-UV intelligent
Temperature rangeRT+10℃~70℃RT+10℃~70℃
Temperature uniformity±3℃±3℃
Humidity range≥75%RH≥75%RH
central distance65~70mm65~70mm
distance between sample and light center55mm55mm
Standard sample75 x 150mm75 x 150mm
Working chamber dimensionD450 X W1165 X H500mmD450 X W1165 X H500mm
Exterior dimensionD600 X W1325 X H14780mmD600 X W1325 X H14780mm
Interior materialSUS304#stainless steelSUS304#stainless wiredrawing steel
Exterior materialSUS201#stainless steel

/cold rolled plastic plate

SUS304#stainless wiredrawing steel

/aluminum alloy

Light tube8 UVB/ UVA light tubes on the front and back side(domestic)American Q-balp original light tube or Atlas UVB-340/UVA-313
water source and energy consumptionPurified/distilled water 8L/day
controllerXinjie PLC control& text displaySiemens PLC control&touch screen display
Spray system6 spray nozzles(3 on each side)6 spray nozzles(3 on each side)
radiation strength0.55W/M20.38-1.1W/M2
