High Accuracy Environmental Test Chamber For Electronic Components

Temperature Range:Normal Temperature ~1200℃Heating Control:S.S.R,PID
Accuracy:±2℃Temperature Uniformity:±1.5%
Temperature Raising Speed:60 Min To 1200±1.0℃Cyclic System:Thermal Radiation Auto Power Off System
Highlight:temperature and humidity chamber

climatic test chamber

  • Product Details
  • Inquiry

Product Description

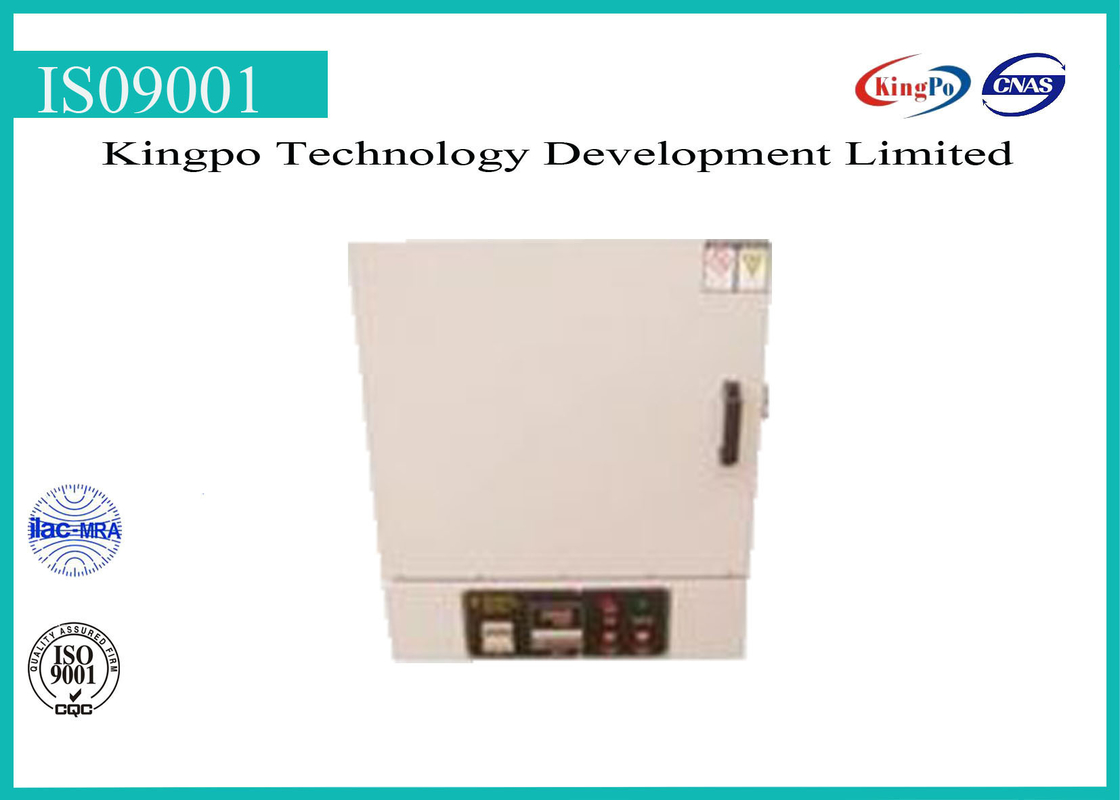

High temperature Ashing Furnace



FunctionAging test for electronic components and plastic, rubber and chemical products;

preheating, quenching, burning, stewing, annealing, and ashing test for mental and iron;

Other heat treatment test

FeatureSimulating weather influence or damage on the products;

Anti-aging performance of specimen to UV light

Weight45kg, 55kg, 75kg
Volume42×48×67cm; 47×48×72cm; 47×68×72cm



Description

High temperature Ashing Furnace is mainly used for alloy steel products, and various kinds of mental parts to do tempering , high temperature reaction, and ashing test.

High temperature ashing furnace for special baking process can be used for aging test of electronic components and plastic chemical products together with iron preheat, quenching, burn, stewing, annealing, ashing test, concise and other high fever processing experiment,etc.



Features



(1). Top grade heating unit, long life for using

(2). Imported PID thermometer, precise temperature controlling function and simple operation.

(3). Rapid temperature raising and cooling;

(4). Over- temperature protective device and auto over-load power off system.

(5) . Cyclic system: thermal radiation auto power off system



Specifications



ModelKP-3030-AKP-3030-BKP-3030-C
Working space(W×D×H)30×20×12cm20×40×30cm20×42×20cm
Temperature rangeNormal temperature ~1200℃
Heating controllingS.S.R,PID
Accuracy±2℃
Temperature uniformity±1.5%
Temperature raising speed60 min to 1200±1.0℃
materialExternal chamber made of SECC steel sheet, powder coating, and inside made of ceramic plate
Volume (W×D×H)42×48×67cm47×48×72cm47×68×72cm
Weight45kg55kg75kg
Power1∮,AC380V,4KW1∮,AC380V,6KW1∮,AC38V,6KW
