Headphone Audio Test Solution
- Product Details
- Inquiry

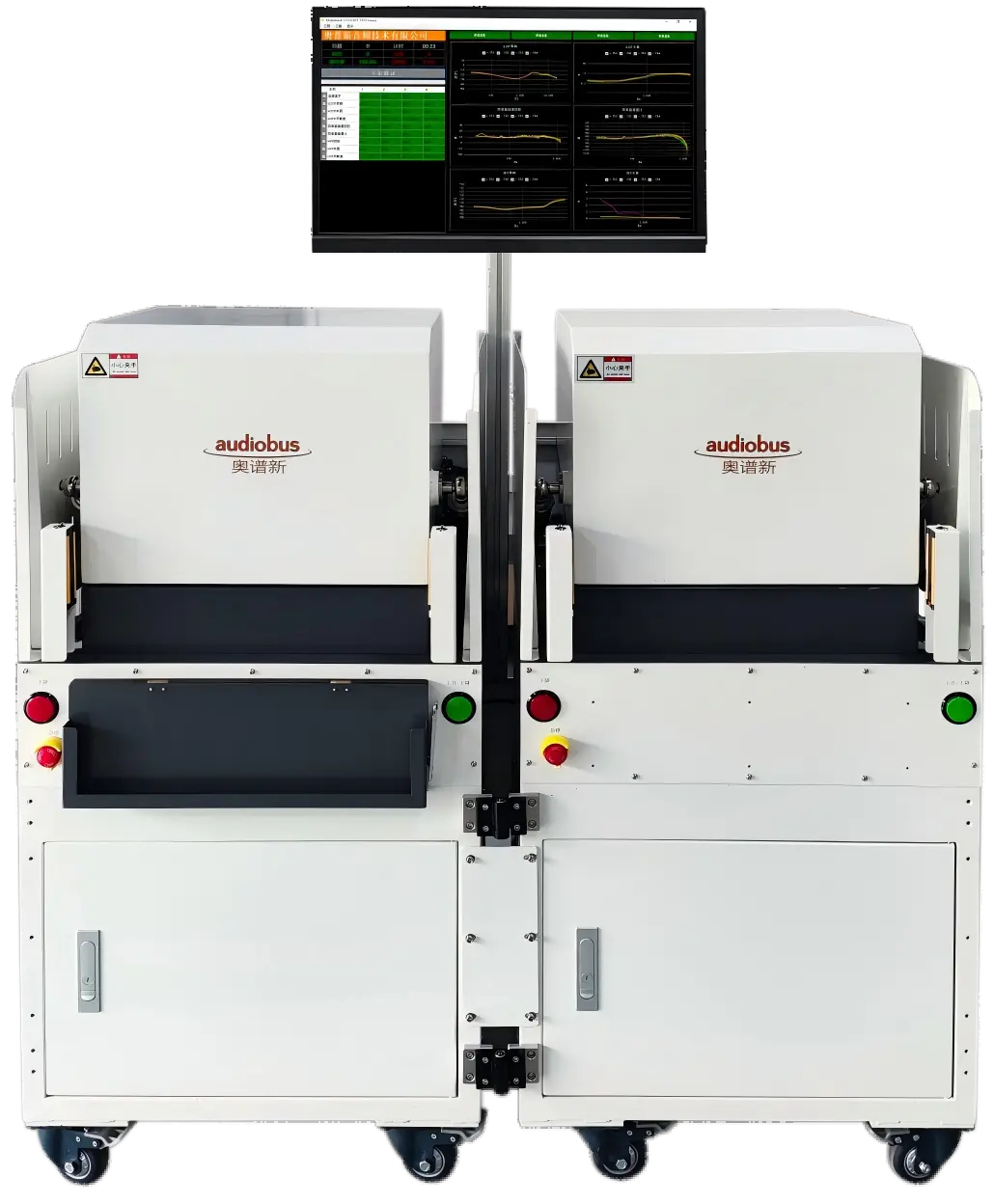

The audio test system supports 4-channel parallel and 8-channel alternating operation. The system is suitable for headphone testing and audio testing of other products. The system has the characteristics of high test efficiency and strong replaceability. The components adopt modular design, and customers can replace relevant fixtures according to their needs to adapt to the testing of different types of headphones.
EQUIPMENT PERFORMANCE
| Work station | Test category | Test category | Capacity |
| TWS regular audio | Earphone speaker, earphone microphone | Frequency response, sensitivity,distortion, horn anomaly, balance | 450~500PCS/H (Subject to the actual plan) |
| TWS regular audio+ENC one-stop test | Headphone speaker,microphone, call noise reduction | Frequency response, sensitivity, distortion, horn abnormal sound, balance, double mi cvc noise reduction, ENC noise reduction, etc | 300~350PCS/H (Subject to the actual plan) |
| TWS regular audio+ANC one-stop tes | Headphone speaker,microphone, call noise reduction | Frequency response, sensitivity, distortion, horn abnormal sound, balance, noise reduction, optimal gain automatic burning, etc | 300~350PCS/H (Subject to the actual plan) |
 | | | |
| Ultra-high efficiency | Ultra-high precision | Ultra-high compatibility | Strong flexibility |
| Single box 4-channel parallel test, two shield box ping-pong operation, 4pcs single test only 20 seconds minimum. | The high impedance audio analyzer is built, the measurement accuracy is up to microvolt (uV) level, and the abnormal sound test is a perfect substitute for manual listening | Compatible with conventional acoustic, ANC, ENC one station test. Replacement of different fixtures can also be compatible with multiple models. | Test fixture modular design, replace the fixture can adapt to different styles of headphones. |
