Product Description

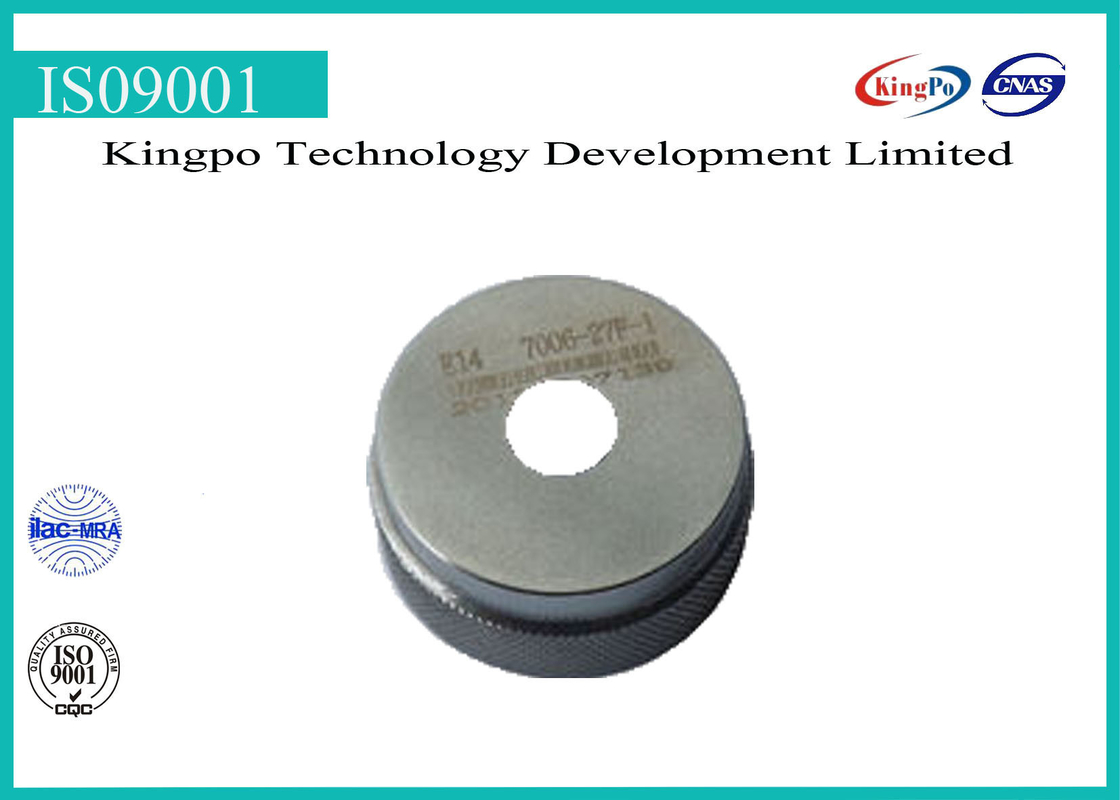

E14 Lamp Cap Gauge | Go Gauge For E14 Caps On Finished Lamps 7006-27F-1
Purpose:
to check the maximum dimensions of the screw thread and dimension T1 minimum of E14 caps on finished lamps.
Testing:

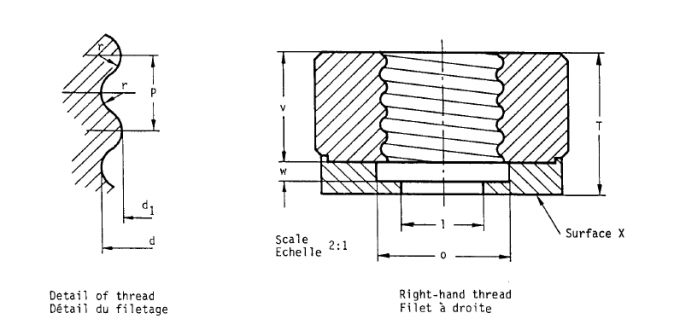

when the cap on a finished lamp has been screwed into the gauge as far as it will go, the centre contact shall be co-planar with, or project beyond surface X.
| “NOT GO” GAUGE FOR E14 CAPS ON FINISHED LAMPS, Cód. 7006-28B-1 |
| “GO”GAUGE FOR E14 CAPS ON FINISHED LAMPS, Cód. 7006-27F-1 |
| GAUGE FOR FINISHED LAMPS FITTED WITH E14 CAPS FOR TESTING CONTACT-MAKING, Cód. 7006-54-2 |
| GAUGE FOR FINISHED LAMPS FITTED WITH E14 CAPS FOR TESTING PROTECTION AGAINST ACCIDENTAL CONTACT, Cód. 7006-55-2 |
| “GO”GAUGE FOR DIMENSION”S1” OF E14 CAPS ON FINISHED LAMPS, Cód. 7006-27G-1 |
