Product Description

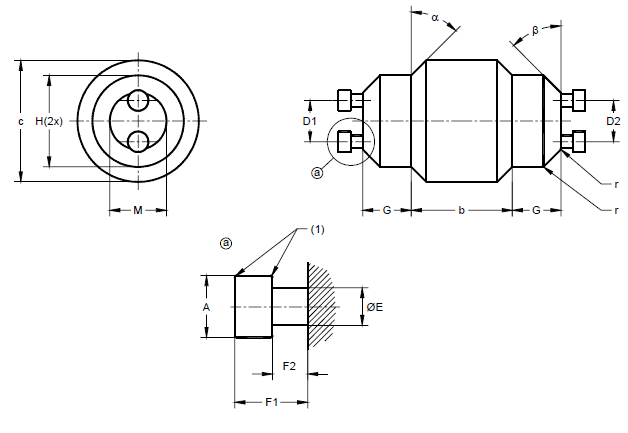

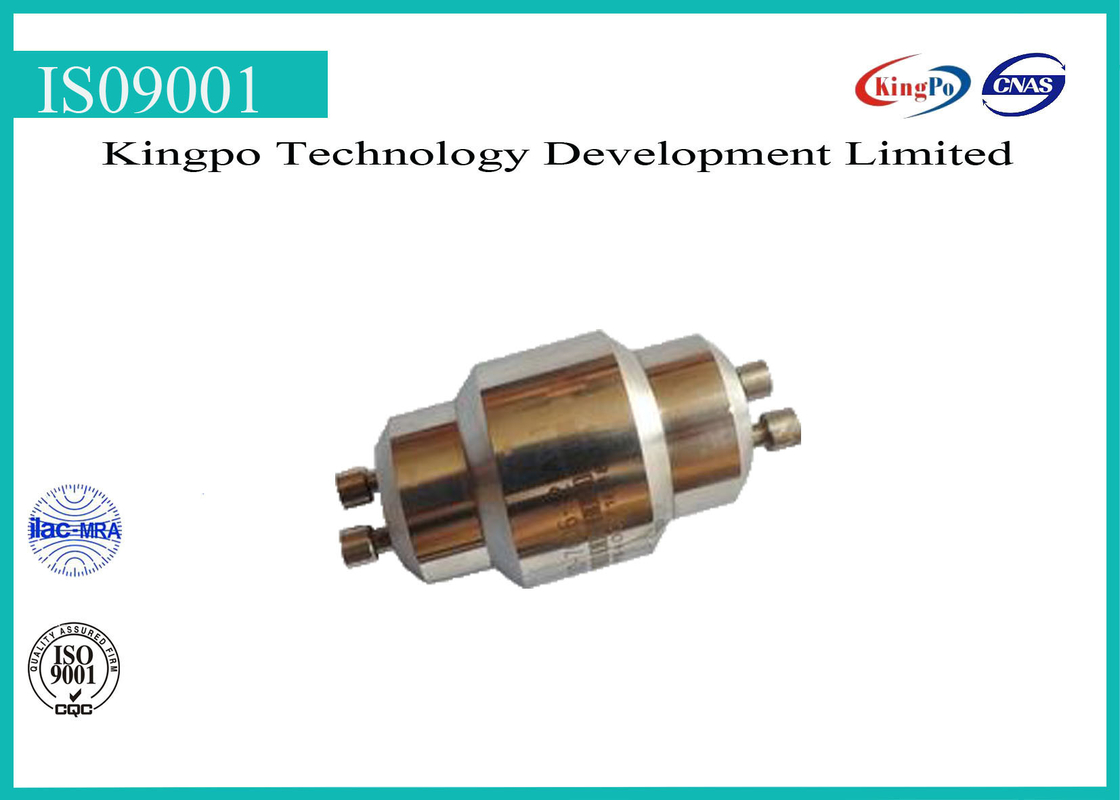

GU10 Lamp cap gauge | Gauge for checking the maximum insertion and withdrawal torques in lampholders GU10

PURPOSE:

To check the maximum insertion torque and the maximum withdrawal torque of lampholders GU10. To check for proper acceptance of “maximum” GU10 lamp bases.

Testing:

it shall be possible to insert each end of the gauge in turn into the lampholder with a torque not exceeding the maximum insertion torque specified on the lampholder sheet. It shall be possible to remove the gauge from the lampholder with a torque not exceeding the maximum withdrawal torque specified on the lampholder sheet.
