Product Description
E26d Lamp Cap Gauge | Gauge For Caps On Finished Lamps For Testing Pretection Against Accidental Contact E26d
PURPOSE:
To check protection against accidental contact of caps E26d on finished lamps.
TESTING:

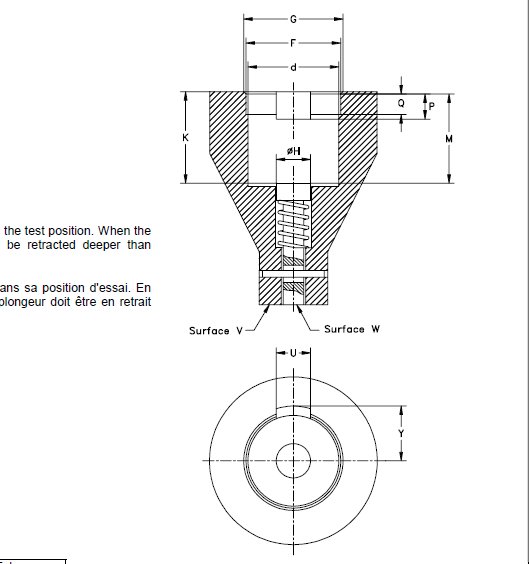

When the lamp has been pushed into the gauge as far as it will go with the side solder of the cap located in the recess provided, surface W of the plunger shall not project beyond surface V.
Related gauges:
| “NOT GO” GAUGE FOR E26, E26/50×39, E26/51×39 & E26d CAPS ON FINISHED LAMPS (Sh. 7006-29L-4) |
| “GO” GAUGE FOR CAPS E26, E26/50×39, E26/51×39 & E26d (7006-27D-3) |
| GAUGE FOR TESTING CONTACT-MAKING OF LAMPS FITTED WITH CAPS E26, E26/50×39,E26/51×39 & E26d (NON-SKIRTED) (7006-29-3) |
| E26d GAUGE FOR CAPS ON FINISHED LAMPS FOR TESTING PROTECTION AGAINST ACCIDENTAL CONTACT (7006-29A-2) |
| E26d GAUGE WITH REFERENCE DIAMETER OF 23 mm FOR CAPS (7006-29B-2) |
| E26d GAUGE WITH REFERENCE DIAMETER OF 13,2 mm FOR CAPS (7006-29C-2) |
| E26d GAUGE WITH REFERENCE DIAMETER OF 10,4 mm FOR CAPS ON FINISHED LAMPS (7006-29D-1) |
