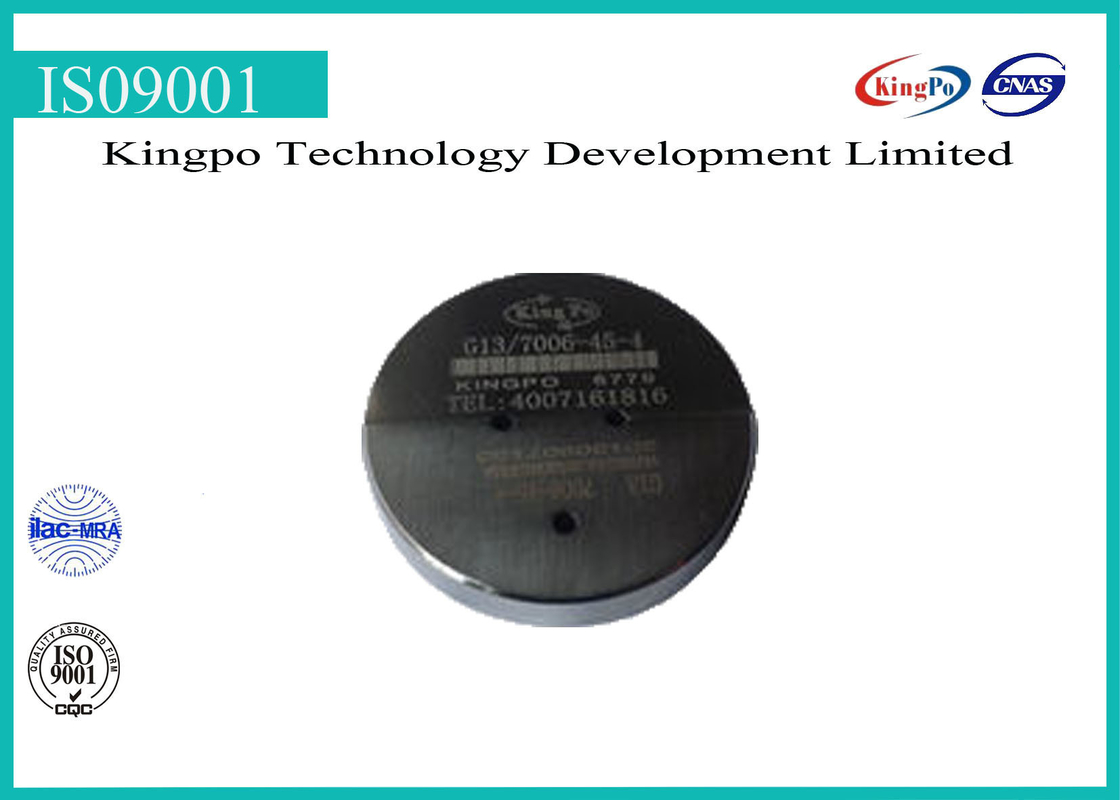

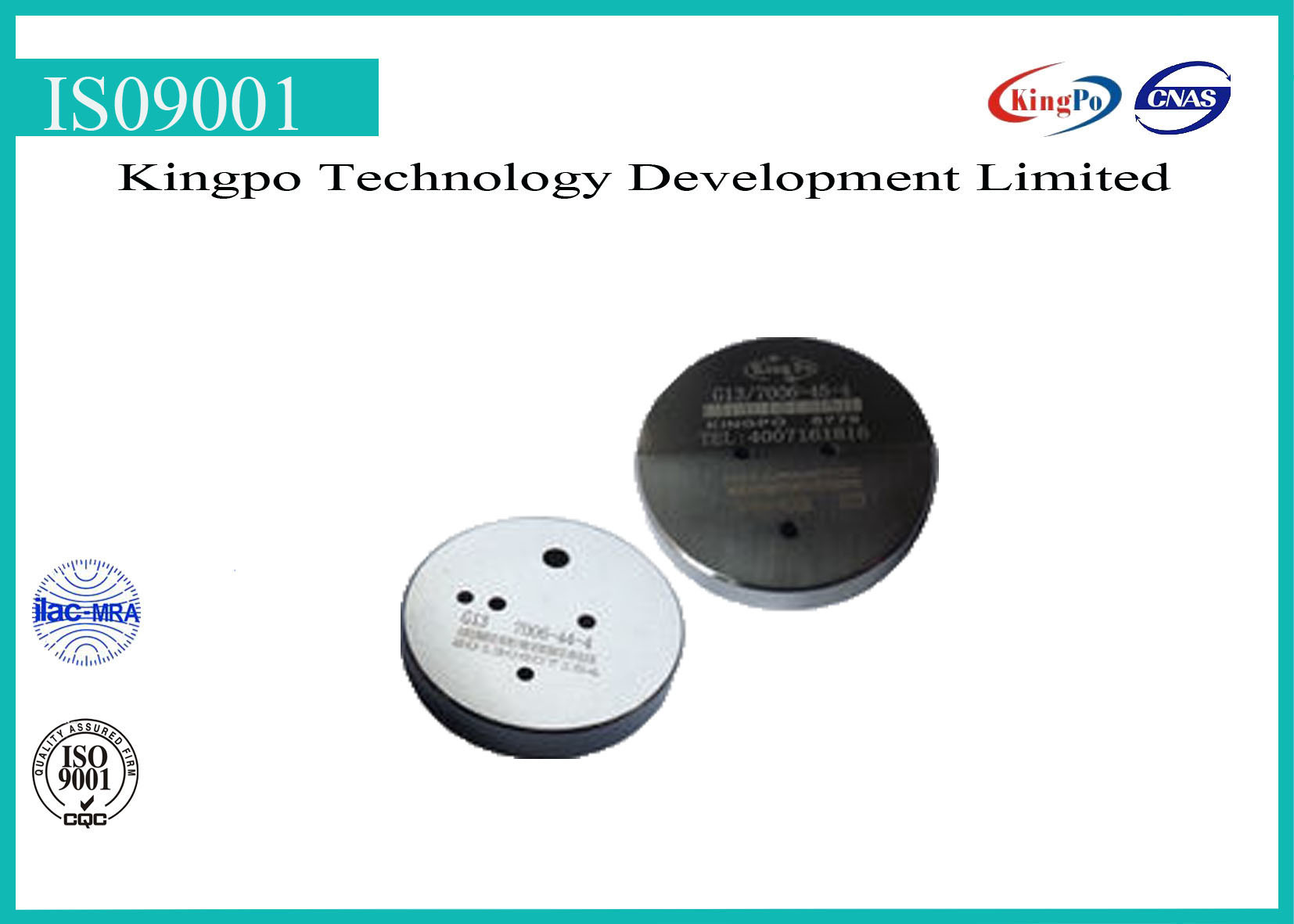

G5 Lamp Cap Gauge | “GO” Gauge For Bi-Pin Cap On Finished Lamps G13-7006-46A-3

Purpose: Purpose: to check dimensions E max.,F min.,F max.,and the combined pin diameter and displacement of pins (including bosses) of bi-pin caps G5 on finished lamps.

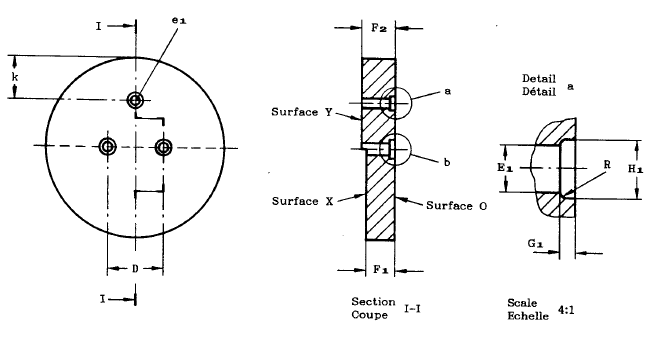

Testing: the pins of the caps on finished lamps shall enter the gauge at surface O and, when fully inserted, the surfaces of cap and gauge shall contact. In this position the end of the pins shall be co-planar with or project beyond surface X, but shall not project beyond surface Y. Each individual pin shall enter hole e1 at surface O until the face of the cap and the surface of the gauge contact.
