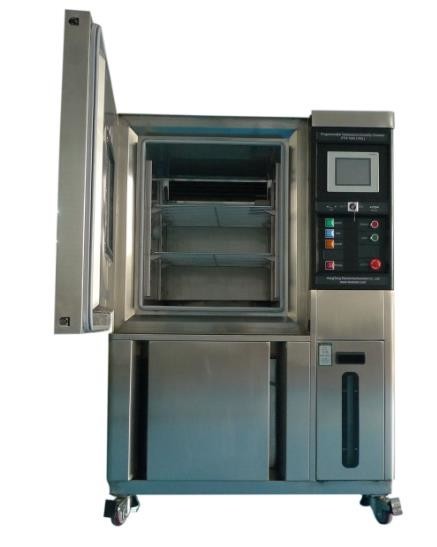

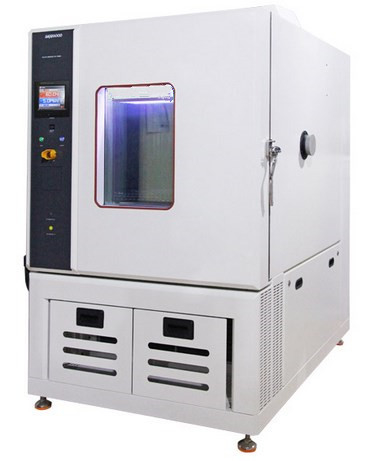

Eco Friendly Formaldehyde Testing Equipment / Voc Testing Chamber

Temp. Adjustable Range:20~30℃Temp. Adjustment Accuracy:±0.5(fluctuation),±1.0℃(deviation)
Temperature Measurement Accuracy:±0.1℃Relative Humidity Adjustable Range:40~70%R.H.
Relative Humidity Adjustment Accuracy:±5%R.H.Relative Humidity Measurement Accuracy:±1%R.H.
Highlight:ozone test chamber

temperature and humidity chamber

  • Product Details
  • Inquiry

Product Description

VOC test chamber of the whole vehicle



Test principles

The process of the test of pollutant release with the environmental chamber can be

summarized as: putting materials and products or their samples in the test chamber,

and adjusting environmental conditions such as temperature in the chamber,relative-

ly humidity and air exchange rate;sampling at the exhaust port or the inside of the

environmental chamber;adopting appropriate methods to analyze gas samples and

identify major pollutants and the changes in their concentration with the time;then

confirm the release rate and release properties of materials and products according

to the measured concentration.





Feature



• The test equipment satisfies ISO 12219-2011 Enviromental Protection Industry Standard of People’s Republic of China.

• Background of the test chamber is controlled with Ventilation Method and internal circulation.

• The customer provides other accessories and instruments for detecting voc,while the supplier coordinates with the installation of sampling aperture.





Reference Standards:

• VOC detection method for Janpanese Jama vehicle(automotive air conditioning can be started.)

• National standard HJ/T400-2007 methods for sampling and detecting volatile organic compounds as well as Aldehydes and Ketones inside the vehicle(the whole vehicle is static.)

• GB/T 28370-2012 Detection methods for air quality in the coach

• VOC test methods for German VW PV 3938 vehicle(infrared heating method)

• ISO 12219-1:2012(E) Air in road vehicles section 1:the whole vehicle testing with the environental chamber method specification for detection of volatile organic compounds inside the vehicle(simulating sunshine)





Technical Parameters:



Temperatureadjustable range20~30℃
adjustment accuracy±0.5(fluctuation),±1.0℃(deviation)
measurement accuracy±0.1℃
Relative humidityadjustable range40~70%R.H.
adjustment accuracy±5%R.H.
measurement accuracy±1%R.H.
Ventilation quantityadjustable range300~1200m³/h(air change rate:2~10 times/h)
Dimension of internal VOC compartment of whole vehicleD8000*W5000*H3500=140m³
Dimension of the door VOC compartment of whole vehicleH2800*W3000
Pressure inside VOC compartment of whole vehicleCompared to pressure outside the compartment,mirco positive pressure
Wind rate≤0.3m/s,with outlet at the smallbox mesh on the ceiling and return air at the bottom
Maximum air processing volume of the filter qir quantitym³/h
High-efficiency particle filtermax. wind processing volume1000m³/h
Activated carbon filter/chemical filtermax. wind processing volume1000m³/h;requirements for pollutant concentration in gases after processing
Value of background concentration of pollutants in the environmetal chamberblank background : 1.benzene<0.01mg/m³; 2.methylbenzene≤0.02mg/m³; 3.dimethylbenzene≤0.02;4.ethylbenzene≤0.02mg/m³;5.styrene≤0.02mg/m³;6.formaldehyde≤0.02mg/m³;7.acetaldehyde≤0.01mg/m³;8.acroleine≤0.01mg/m³
open the door of the whole vehicle:due to great differences of materials of the vehicle when operating the door of the whole vehicle,it should be guaranteed that voc of single component is smaller than 0.02mg/m³ or 10% of the limit;formaldehyde content is smaller than 0.02mg/m³ ;TVOC content is smaller than 0.2mg/m³

• This scheme is our invention patent,so pls avoid patent disputes.

• Scheme A of background processing properties: 0.02g of toluic aldehyde is placed in the chamber.After it has released completely,the test chamber is operated in accordance with the standard stipulation of HJ/T400-2007methods for sampling and detecting volatile organic compounds as well as Aldehydes and Ketones inside the vehicle.20 minutes later,air in the chamber is sampled,and the background value of toluic aldehyde in the chamber should be smaller than 20μg/m³.

• End user(customer) should self-prepare the power: AC 380V,3 phases 5 wires,50Hz

• End user(customer) consider the dimension of internal chamber,the space the equipment takes up,the outfall of the equipment system,waste gas discharging and tap water or pure water.
