E27 Screw Lamp Holder Gauges With Calibration Certificate 7006-26-4
- Product Details
- Inquiry
Product Description
E27 Lampholder gauges | “NOT GO” Gauge for Screw Thread Lampholder E27 | 7006-26-4

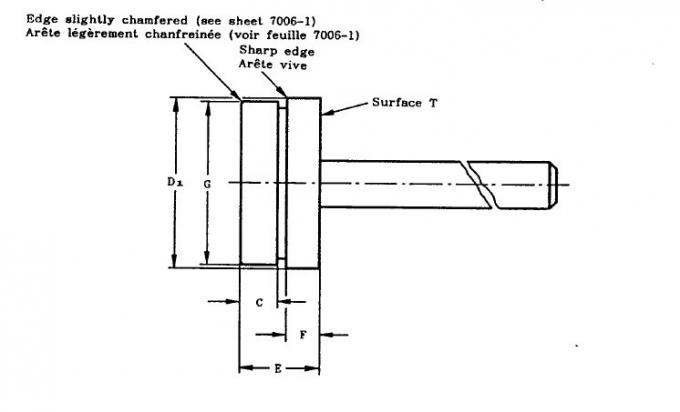

Purpose: the check the maximum minor diameter of the screw thread, dimension D1, of lampholder E27
Testing: the screw thread of the lampholder shall be assumed to be correct if the gauge does not enter by its own weight so far that the thread protudes beyond surface T.
Related gauges for E27 lamp holder:
| E27 lamp holder gauge | “GO” GAUGE FOR LAMPHOLDERS E27 | 7006-25A-2 |
| NOT GO”GAUGE FOR SCREW THREADS OF LAMPHOLDERS E27 | 7006-26-4 | |
| GAUGE FOR TESTING PROTECTION AGAINST BULB-NECK DAMAGE AND FOR TESTING CONTACT-MAKING IN LAMPHOLDERS E27 | 7006-21-5 | |
| GAUGE FOR TESTING CONTACT-MAKING AND PROTECTION AGAINST ACCIDENTAL CONTACT DURING INSERTION OF LAMPS IN LAMPHOLDERS E27 | 7006-22A-5 | |
| GAUGE FOR DETECTING SIDE-CONTACTS WITH CUTTING-EDGES IN LAMPHOLDERS E27 | 7006-22B-1 | |
| GAUGE I FOR CHECKING SIDE-CONTACT RESILIENCY IN LAMPHOLDERS E27 | 7006-22C-1 | |
| GAUGE II FOR CHECKING SIDE-CONTACT RESILIENCY IN LAMPHOLDERS E27 | 7006-22D-1 |
