DIN-VDE0620-1:2021 Bild 16a Temperature Rise Plug Gauge Prufestecker 2P+AC 16A
- Product Details
- Inquiry
Product Description

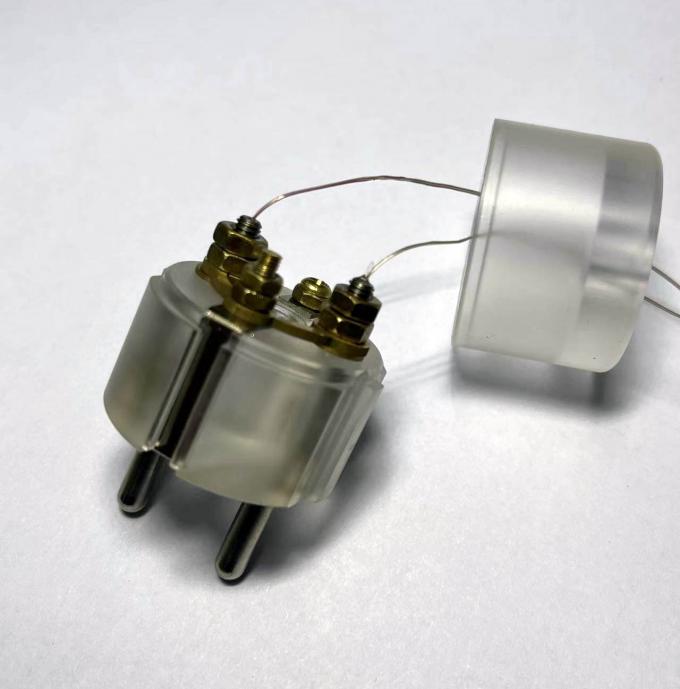

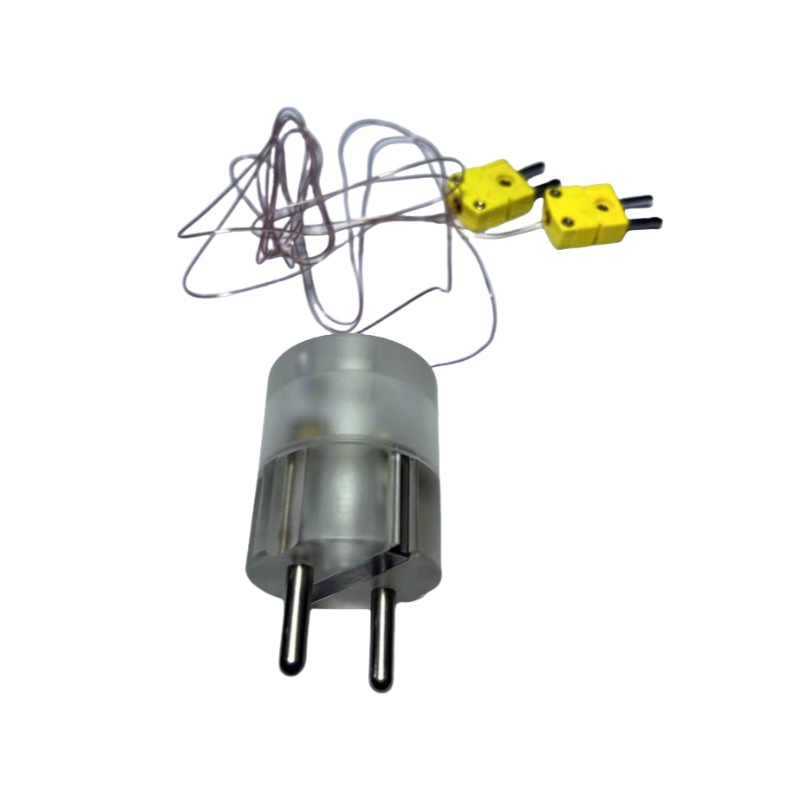

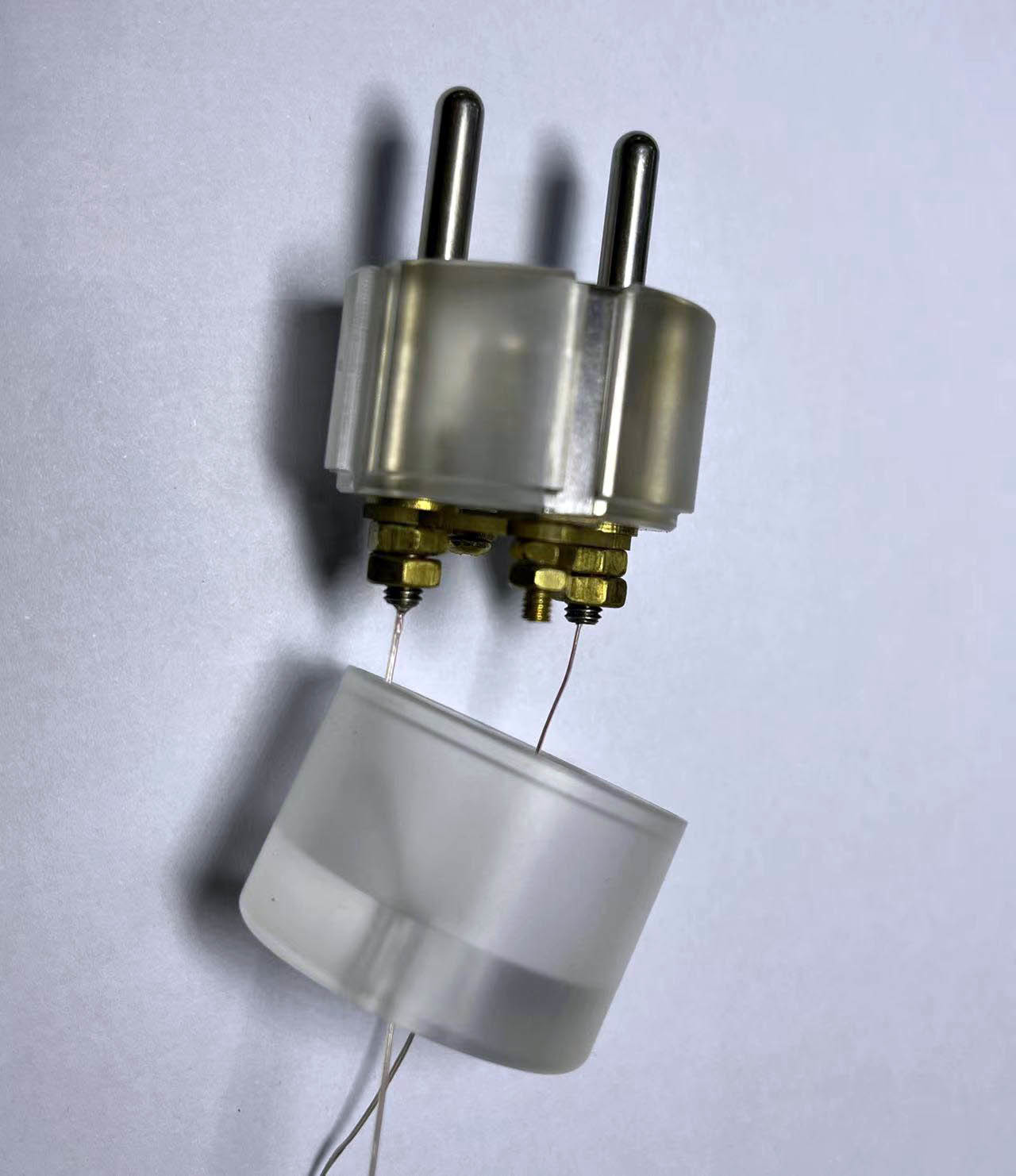

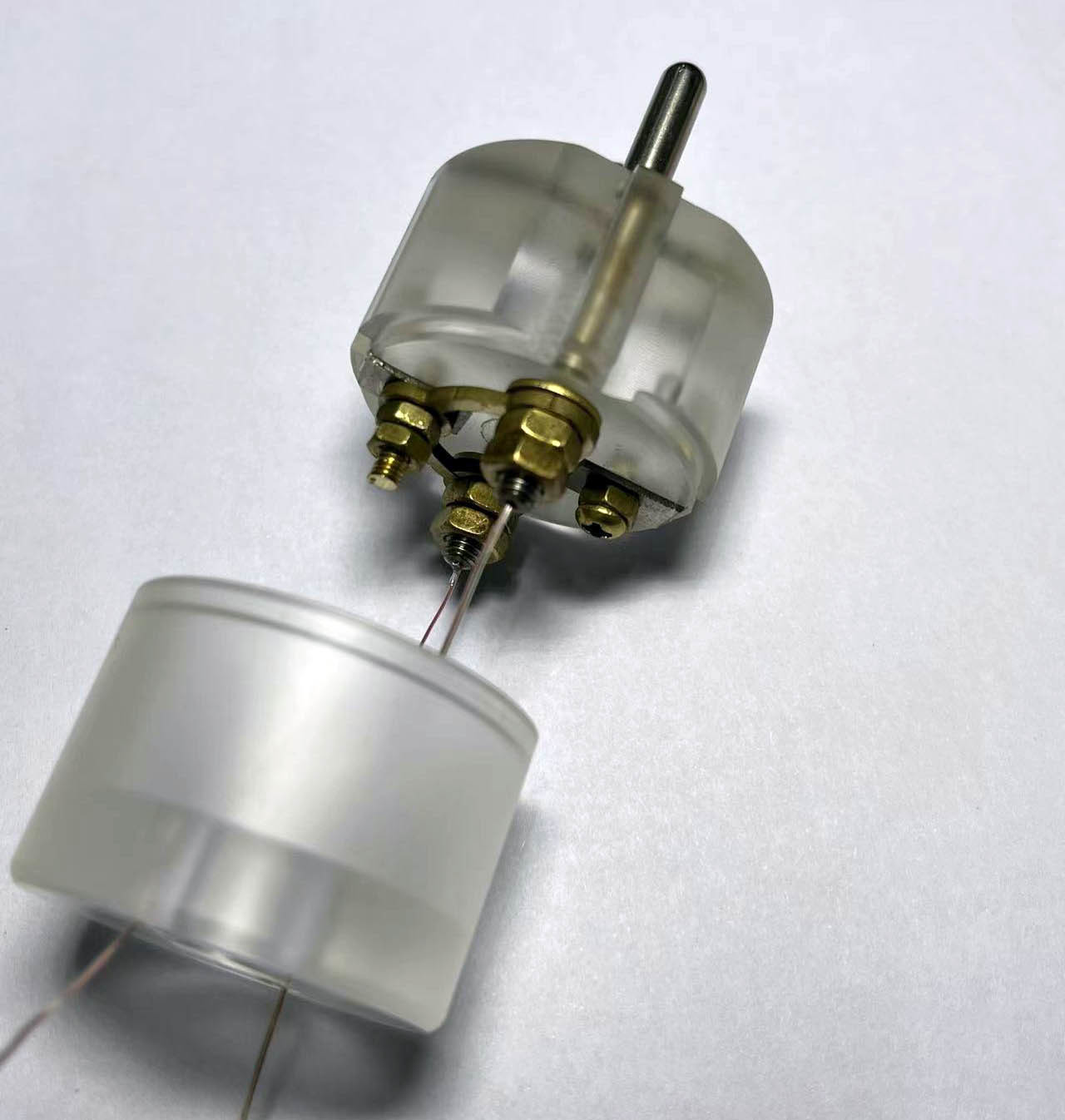

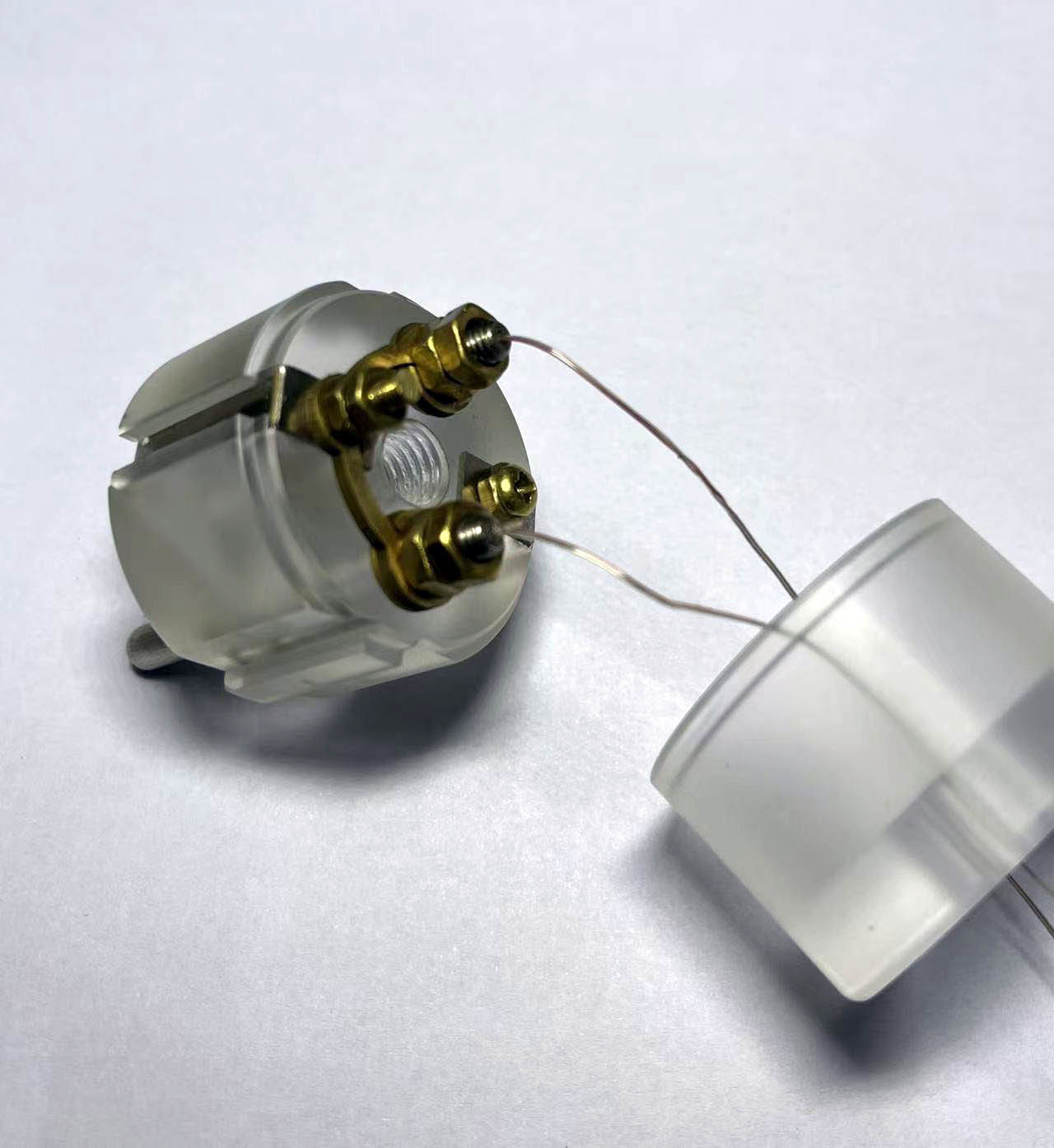

DIN-VDE0620-1:2021 Bild 16a temperature rise plug gauge Prufestecker 2P+AC 16A
| DIN-VDE0620-1 plug and socket gauge | ||
| Figure number | Project name | Qty |
| DIN-VDE0620-1-Lehre1 | Socket R gauge (5.0,5.8,6.0) | 3 |
| DIN-VDE0620-1-lehre2 | Minimum opening width and minimum pull out force of contact jack | 2 |
| DIN-VDE0620-1-Lehre3 | Bipolar plug force | 1 |
| DIN-VDE0620-1-Lehre4 | Bipolar plug with earthing contact insertion flanking force | 1 |
| DIN-VDE0620-1-Lehre5 | To test the first time contact closure interval gauge | 1 sets of /4 parts |
| DIN-VDE0620-1-Lehre6 | Pin diameter | 1 sets of /4 parts |
| DIN-VDE0620-1-Lehre7 | Pin distance | 1 /2 combination |
| DIN-VDE0620-1-Lehre8 | The maximum opening width of the contact jack | 1 |
| DIN-VDE0620-1-Lehre9 | Interchangeability test plug gauge | 1 |
| DIN-VDE0620-1-Lehre10-A | The impossibility of the contact of the single pole contact hole A | 1 |
| DIN-VDE0620-1-Lehre10-B | Unipolar contact hole contacts not the possibility of B | 1 |
| DIN-VDE0620-1-Lehre11 | No bipolar plug ground contact can not be inserted | 1 |
| DIN-VDE0620-1-Lehre12 | The possibility of unipolar insertion plug (including 250 grams and 1000 grams of weight and the positioning rack) | 1 sets of /4 parts |
| DIN-VDE0620-1-Lehre13 | After normal operation test of live parts check protection inside the door can not touch the probe | 1 sets |
| DIN-VDE0620-1-Lehre14 | On both sides of the ground test | 1 |
| DIN-VDE0620-1-Lehre15 | Live parts check protection inside the door and strengthen the protection of live parts socket can not touch with the probe | 1 sets |
| DIN-VDE0620-1Fig15 | Gauge | 1 |
| DIN-VDE0620-1-Lehre16a | The maximum pullout force plug (16a) | 1 |
| DIN-VDE0620-1-Lehre16d | The maximum pullout force plug (16d) | 1 |
| DIN-VDE0620-1-Lehre17 | Lehre17 | 1 |
| DIN-VDE0620-1-Lehre18 | Lehre18gauge | 1 |
| DIN-VDE0620-1-EN50075 | Interchangeability test plug gauge | 1 |
| DIN-VDE0620-1-49440-L1 | 49440-L1- on the IPX4 test socket | 1 |
| DIN-VDE0620-1-49440-L2 | 49440-L2- on the IPX4 test socket | 1 |
| DIN-VDE0620-1-49440-L1-L2 | Bipolar grounded plug diameter gauge and test equipment | 1 sets of /3 parts |
| DIN-VDE0620-1-Bild15 | Test pressure device | 1 sets |
| DIN-VDE0620-1-Bild14 | Bild14 gauge | 1 sets |
| DIN-VDE0620-1-Bild43 | Bild43 gauge | 1 sets of /2 parts |
| DIN-VDE0620-1 Bild 16a | 16a temperature rise plug gauge Prufestecker 2P+AC 16A | 1 |
| DIN-VDE0620-1 Bild 16b | 16a temperature rise plug gauge Prufestecker 3P+AC 16A | 1 |
| DIN-VDE0620-1 Bild 16d | 2.5A temperature rise plug gauge Prufestecker 2P+AC 2.5A | 1
|
