Product Description

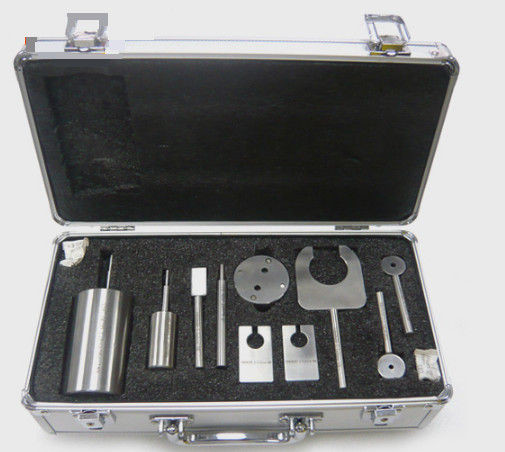

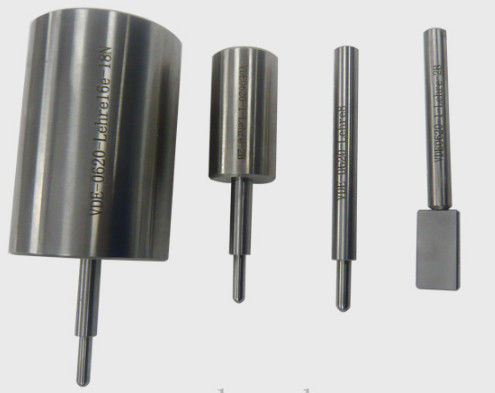

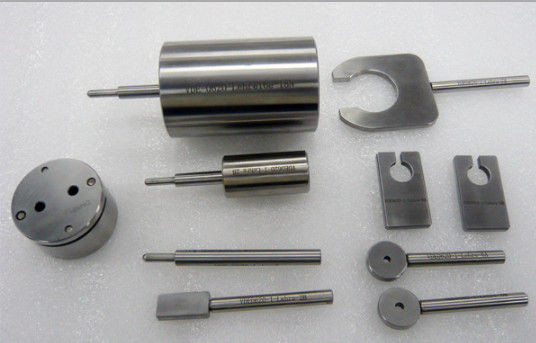

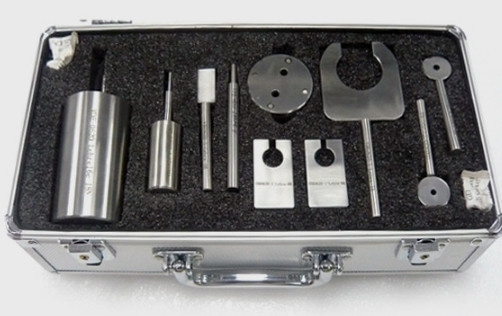

DIN-VDE0620-1 Plug And Socket Gauge For Measuring German Standard Plug And Socket
Product information:
The gauges conforms to the standard of DIN-VDE0620-1.It is measuring German standard plug and socket.
| Figure number | Project name | Number |
| DIN-VDE0620-1-Lehre1 | Socket R gauge (5.0,5.8,6.0)
| 3
|
| DIN-VDE0620-1-lehre2 | Minimum opening width and minimum pull out force of contact jack | 2 |
| DIN-VDE0620-1-Lehre3 | Bipolar plug force
| 1 |
| DIN-VDE0620-1-Lehre4 | Bipolar plug with earthing contact insertion flanking force | 1 |
| DIN-VDE0620-1-Lehre5 | To test the first time contact closure interval gauge | 1 sets of /4 parts |
| DIN-VDE0620-1-Lehre6 | Pin diameter | 1 sets of /4 parts |
| DIN-VDE0620-1-Lehre7 | Pin distance
| 1 /2 combination |
| DIN-VDE0620-1-Lehre8 | The maximum opening width of the contact jack
| 1 |
| DIN-VDE0620-1-Lehre9 | Interchangeability test plug gauge | 1 |
| DIN-VDE0620-1-Lehre10-A | The impossibility of the contact of the single pole contact hole A
| 1 |
| DIN-VDE0620-1-Lehre10-B | Unipolar contact hole contacts not the possibility of B
| 1 |
| DIN-VDE0620-1-Lehre11 | No bipolar plug ground contact can not be inserted | 1 |
| DIN-VDE0620-1-Lehre12 | The possibility of unipolar insertion plug (including 250 grams and 1000 grams of weight and the positioning rack)
| 1 sets of /4 parts |
| DIN-VDE0620-1-Lehre13 | After normal operation test of live parts check protection inside the door can not touch the probe | 1 sets
|
| DIN-VDE0620-1-Lehre14 | On both sides of the ground test
| 1 |
| DIN-VDE0620-1-Lehre15 | Live parts check protection inside the door and strengthen the protection of live parts socket can not touch with the probe | 1 |
| DIN-VDE0620-1Fig15 | Gauge | 1 |
| DIN-VDE0620-1-Lehre16a | The maximum pullout force plug (16a) | 1 |
| DIN-VDE0620-1-Lehre16d | The maximum pullout force plug (16d)
| 1 |
| DIN-VDE0620-1-Lehre17 | Lehre17 | 1 |
| DIN-VDE0620-1-Lehre18 | Lehre18gauge | 1 |
| DIN-VDE0620-1-EN50075 | Interchangeability test plug gauge | 1 |
| DIN-VDE0620-1-49440-L1 | 49440-L1- on the IPX4 test socket | 1 |
| DIN-VDE0620-1-49440-L2 | 49440-L2- on the IPX4 test socket
| 1 |
| DIN-VDE0620-1-49440-L1-L2 | Bipolar grounded plug diameter gauge and test equipment
| 1 sets of /3 parts |
| DIN-VDE0620-1-Bild15 | Test pressure device
| 1 sets
|
| DIN-VDE0620-1-Bild14 | Bild14 gauge
| 1 sets
|
| DIN-VDE0620-1-Bild43 | Bild43 gauge
| 1 sets of /2 parts
|
