Product Description

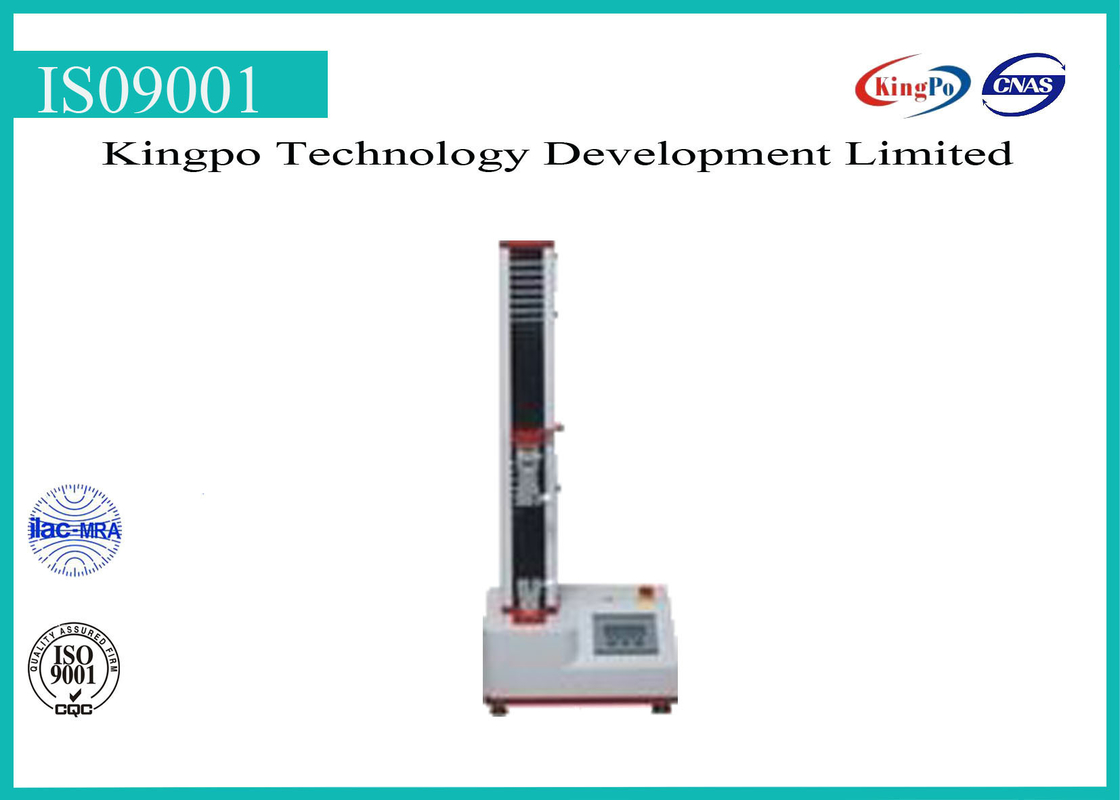

Desktop Microcomputer controlled Single-column Tester
Function Description
Applicable to mechanical properties test on materials like rubber,plastic aluminum plastic pipe(PAP),composite material,waterproof material,yarn,fiber,wire and cable,paper,spring,wood,packing material and adhesive tape through tension ,compression,bending,shearing,tearing and stripping.Serial 2000 and 4000 can achieve multiple closed-loop test includes constant stress, constant strain and relaxation test,which can also complete experimental items like torsion and cupping test after being equipped with special devices;automatically give the tensile strength,yield strength,elongation rate,tensile stress at a given elongation,elongation at a given stress,elastic modulus,etc.
Technical Parameter
type | KP-L0120 | KP-L0110 |
capacity | 10,20,50,100,200,500KG | 10,20,50,100,200KG |
Unit shift | N,KG,lb | |
Degree of decomposition of load | 1/10,000 | |
Load precision | ±1% | |
Maximum stole(without clamp) | 650mm | 1000mm |
Speed input | Rotate the knob | |
Test speed | 1~500mm/min adjustable | 25~500mm/min adjustable |
Data sampling frequency | 600HZ | |
display | Elongation,test value,maximum value and bursting strength can be displayed | test value,maximum value and bursting strength can be displayed |
motor | AC server motor | AC Inverter motor |
volume | 55 x45 x130cm | 47 x37 x182cm |
weight | 65kg | 85kg |
power | 1ϕ,AC220V, 5A | 1ϕ,AC220V, 3A |
