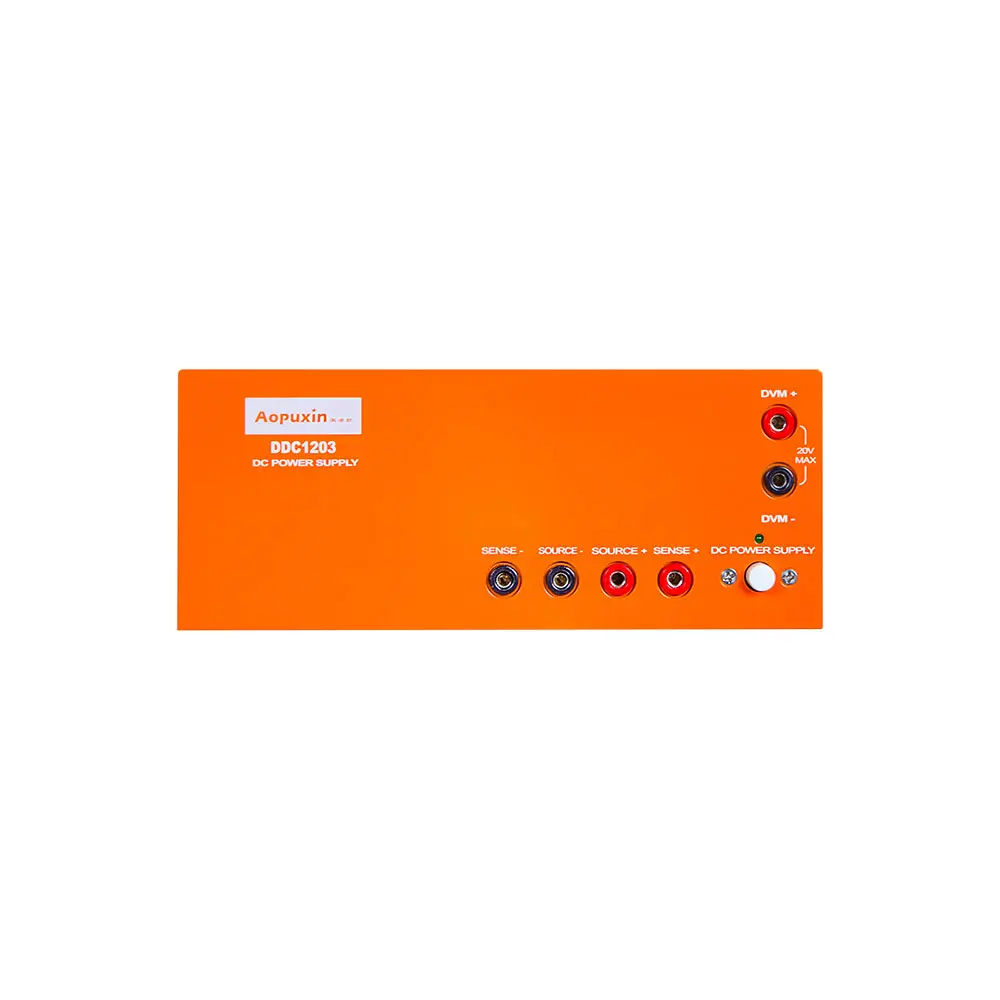

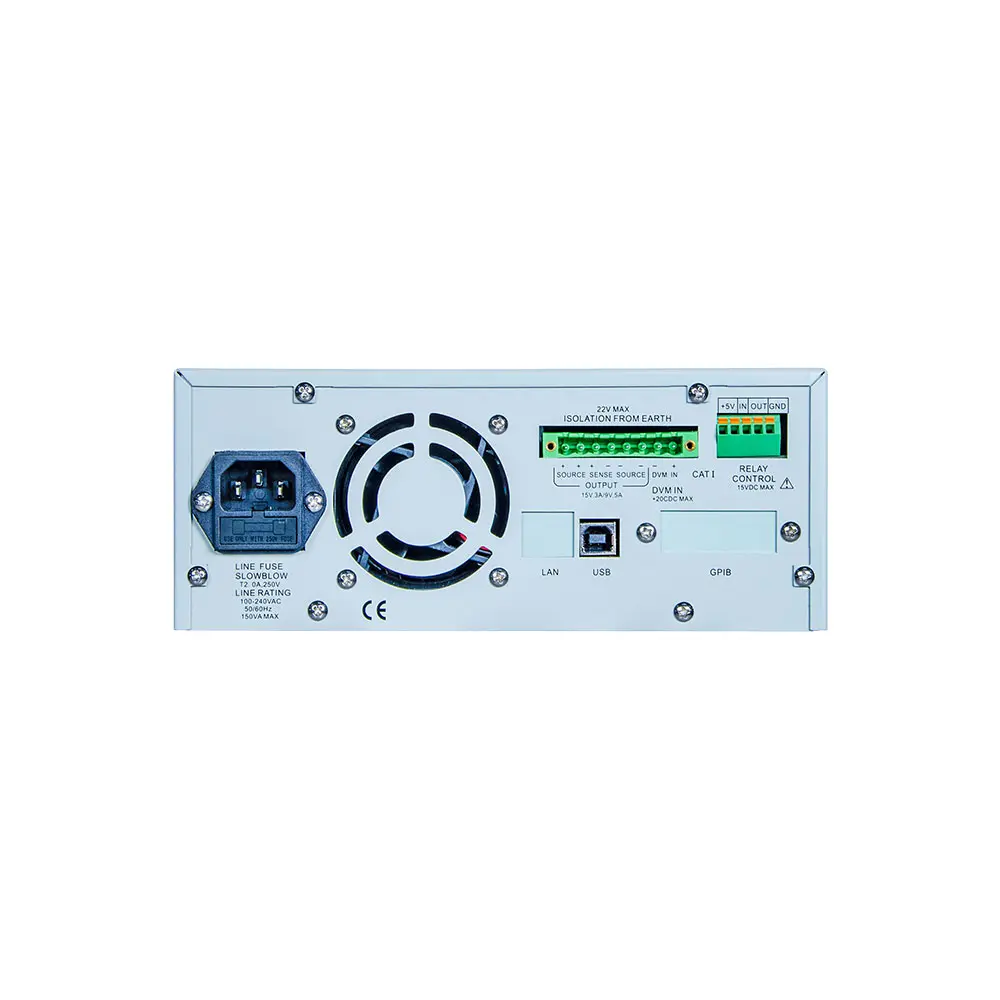

DDC1203 DC Voltage Regulator Power Supply Prevent Test Interruption Caused By Low Voltage Falling Edge Triggering
- Product Details
- Inquiry
Everything you need to meet your testing needs
DDC1203 is a high performance, transient response DC source for peak current testing of digital wireless communication products. Excellent voltage transient response characteristics can prevent test interruption caused by low voltage falling edge triggering.
Specification | ||
Output Range | Voltage | 0 ~ 15V |
Electric Current | 0 ～9V:0-5A / 0 ～ 15V : 0-3A | |
Ripple And Noise | Voltage ( Rms/Pp ) | 1 MV / 8 MV |
Programmable Precision | Voltage | 0.05 % + 10mV |
Electric Current | 5A: 0.16% + 5mA | |
Programmable Resolution | Voltage | 2.5mV |
Electric Current | 1.25 MA | |
Power Regulation | Voltage ( CV ) | 0.5mV _ _ |
Current ( CC ) | 0.5mA _ _ | |
Response Time | Instantaneous Recovery Time( For 1000% Load Change ) | Within 100mV : ＜ 40 US ;Within 20mV : ＜ 80 US |
Measurement Characteristics | Current | 1.25mA |
Readback Accuracy | Voltage | 0.5mV |
Readback Resolution | Current(Cc) | 0.5 MA |
Load Adjustment Rate | Transient Recovery Time For 1000% Load Change | Within 100mv: <40uS; Within 20mv: <80uS |
Measurement Characteristics | ||
Readback Accuracy | Voltage | 0.05% + 3mV |
Electric Current | 5A: 0.2 % + 400uA ,5mA: 0.2%+1uA | |
Readback Resolution | Voltage | 1mV |
Electric Current | 5A: 0.1mA , 5mA : 0.1uA | |
Load Adjustment Rate | Voltage ( CV ) | 0.01% + 2mV |
Current ( CC ) | 0.01% + 1mA | |
DVM (Built-In Digital Voltmeter) | |
DC Reading Accuracy (23℃±5℃) | +0.05%+3mV |
Input Voltage Range | 0-20VDC |
Readback Resolution | 1mV |
Other Parameters | |
Absorption Current | 2A(Vout≤5V); 2A-0.1*(Vout-5)(Vout>5V) |
Standard Interface | USB |
Storage | 5 Groups |
Equipment Specifications | |
Operating Temperature/Humidity | 0-40°C, <80%RH |
Power Supply | AC:100~240V,50/60HZ;150VA MAX |
Dimensions | 215mmX365mx95mm |
Weight | 3.7kg |
