Bluetooth Module Establish A2DP Or HFP Protocol For Communication And Testing
- Product Details
- Inquiry

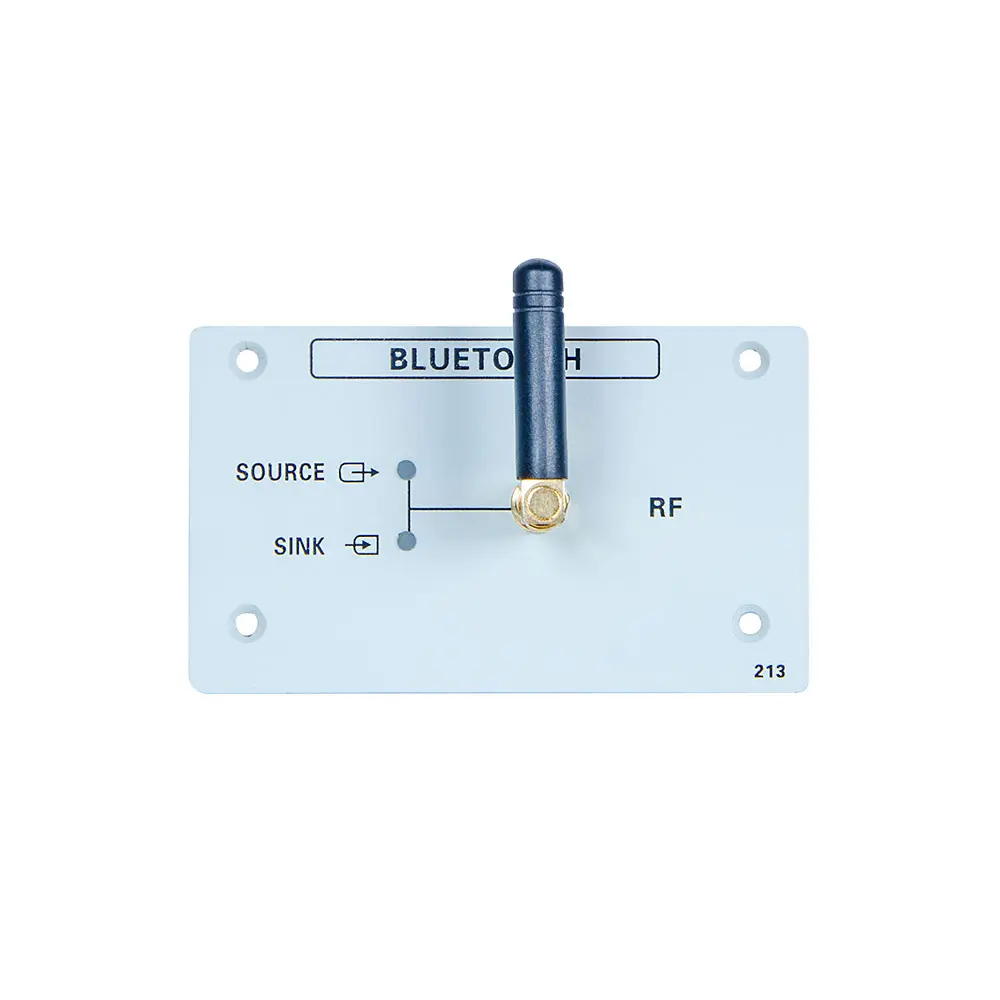

The Bluetooth module can be used in the audio detection of Bluetooth devices. It can be paired and connected with the Bluetooth of the device, and establish A2DP or HFP protocol for communication and testing.The Bluetooth module is an optional accessory of the audio analyzer, which is used to expand the test interface and functions of the audio analyzer.
Performance Parameters
| Performance | |
| Bluetooth Version | 2.1 + EDR |
| Technology Agreement | A2DP Source, HFP Audio Gateway, AVRCP TargetA2DP Source, HSP Audio Gateway, AVRCP Target _A2DP Sink, HFP Hands-Free, AVRCP ControllerA2DP Sink, HSP Headset , AVRCP Controller |
| Encoding | MSBC, SBC, AptX, CVSD |
| RF Connection | Type N Female Jack. Antenna With N To SMA Adapter Included. |
| RF Input Impedance | 50Ω |
| RF Output Impedance | 50Ω |
| RF Power | 0 DBm Typical, 4 DBm Maximum |
